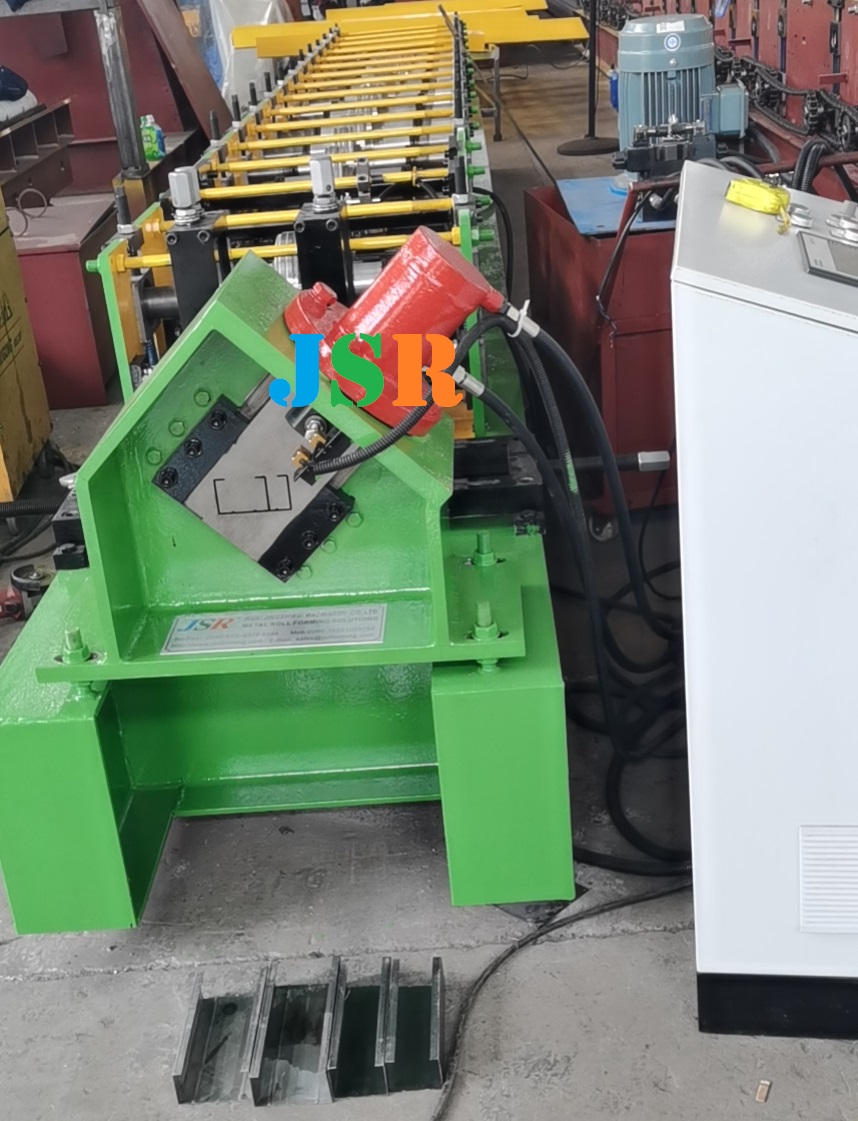

This C shape forming machine can make two size , one is 10-50-70-50-10 and 10-50-100-50-10, suitable material thickness0.9-1.5mm.
it is convinient to change size by taking out or in spacers between rollers.
machine automatically work
siemens control
machine about 14 stations rollers, length about 7m
c channel machine include
3 ton manual decoiler, forming machine with post cut , hydraulic station. plc controller , run out table
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 7m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.9-1.5mm |
| Coil width | about 185mm and 215mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
