Angle bar forming machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

Angle bar is considered as supportive equipments that is used by professionals in construction. Bars are usually applicable to construct supportive items such as external rims and corners for each wall and surface on construction sites. The angle bars are applied onto a surface by using many of the processes such as drilling, welding..

This steel angle machine make material 1.5-4.0mm angle bar, and angle bar size 20-100mm.

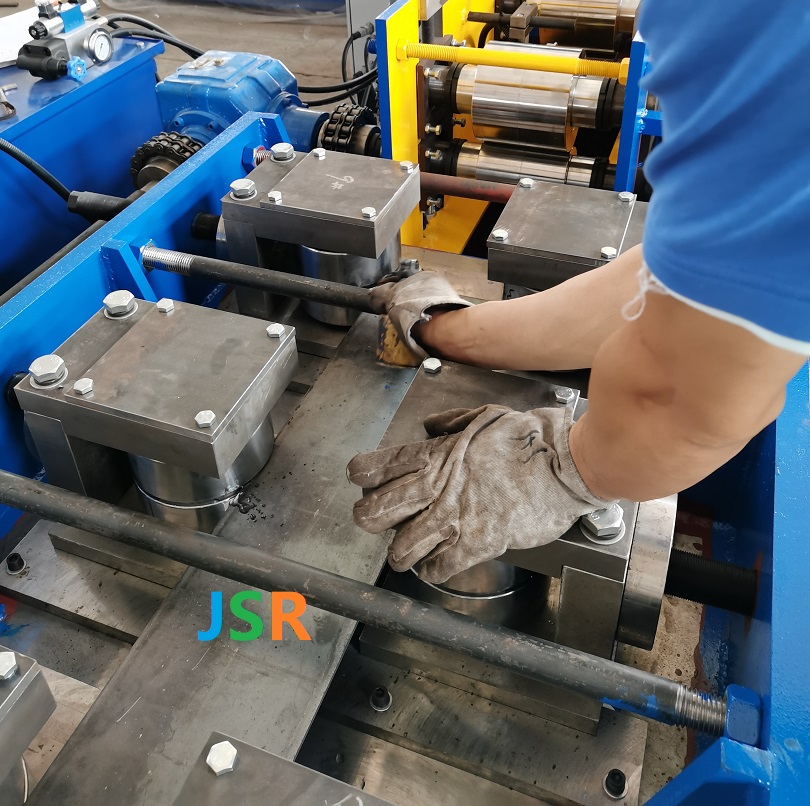

machine with function of round corner, which adopt motor power 11kw .

here is 6mm angle bar forming machine

Specifications

Machine Specifications
Weight About 4500kgs
Size About 8m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 2-4mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations about 10
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
roller material GR15
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about11kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement
