This forming machine is popular in India to feed in 1450mm width material for wider effective width
If feeding this roll former raw material 1220mm, machine will make effective width 1000 profile
If feeding 1450, machine will make effective 1220mm profile
only feed different width raw material, no need to change machine

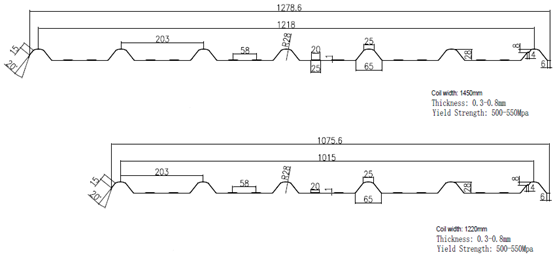

Following is profile drawing for your reference.
JSW Profile or Tata profile for your reference

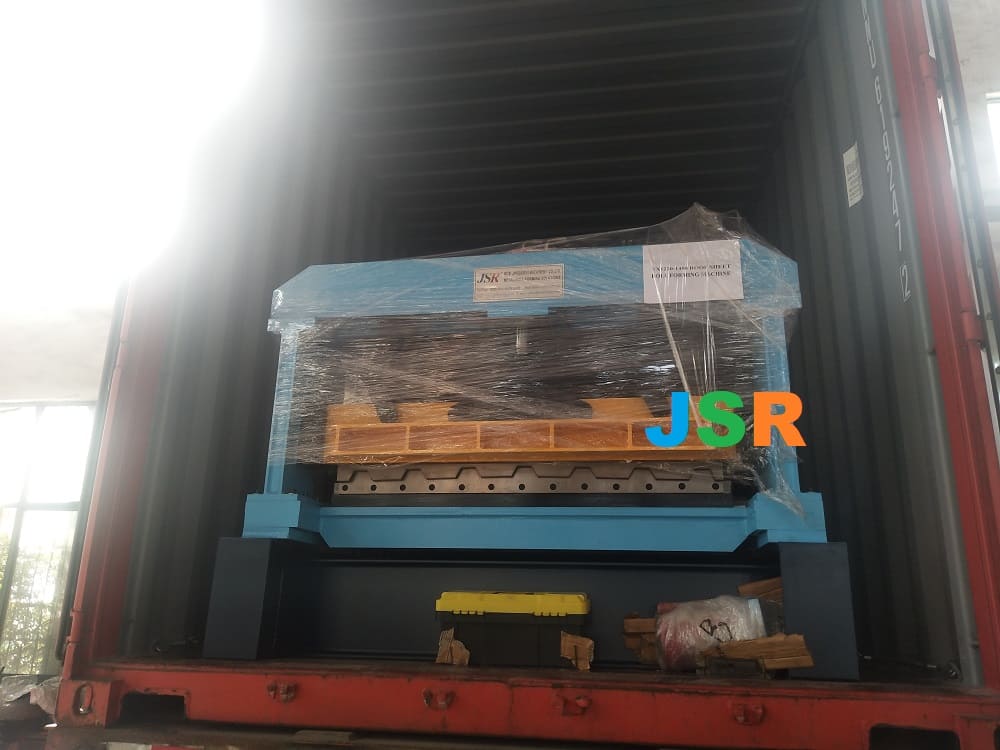

one roofing sheet machine will be load into one 40GP container.
Our roll forming lines are well tested and installed before delivery, you only connect some wire and tubes according to instruction manual and video,
How to connect wire and tube once machine arrive
While, if you need our technician assistance in your factory, our experienced technicians will go.
Jsr Forming machine adopt SIEMENS or Mitsubishi control system, it is easy to operate,
How to operate roll forming machine
Popular roll fomer machines in india
Roofing crimping forming machine
Steptile forming machine
CZ Purlin forming machine
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm & 1450mm |
| Yield Strength | 235Mpa-550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24 |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
