Monterrey tile popular in Russia, Bulgaria，Ireland, Poland, Finland, Latvia, Estonia, Lithuania, Ukraine，Azerbaijan…

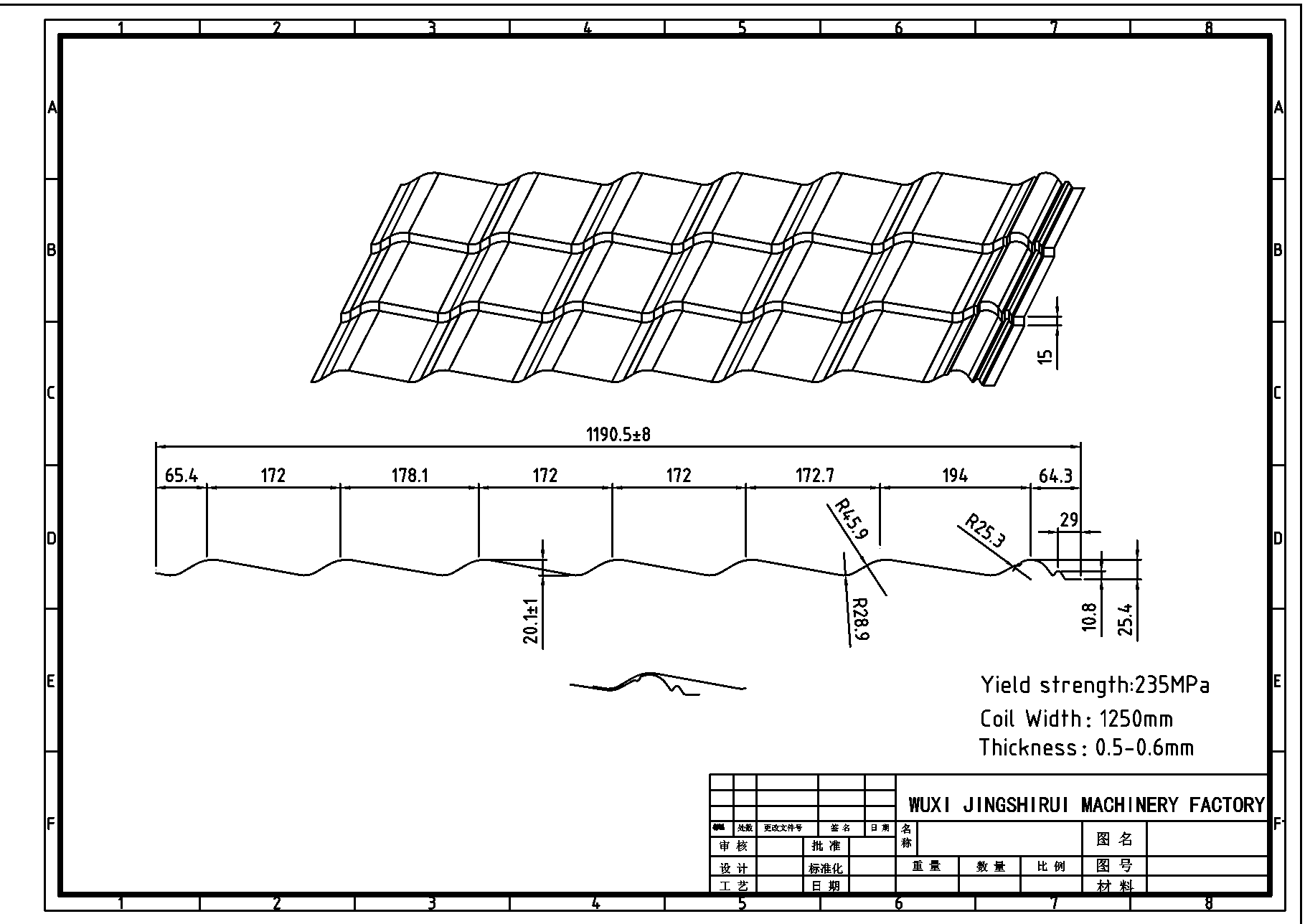

Modulların aralığı
350mm
En 1180mm
Effektiv en 1100mm
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 10m x 1.8m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Pre-painted Galvanized Steel Coils |
| Thickness | 0.4-0.6mm |
| Coil width | 1250mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | About 16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
