C Z purlin forming machine to MEXICO

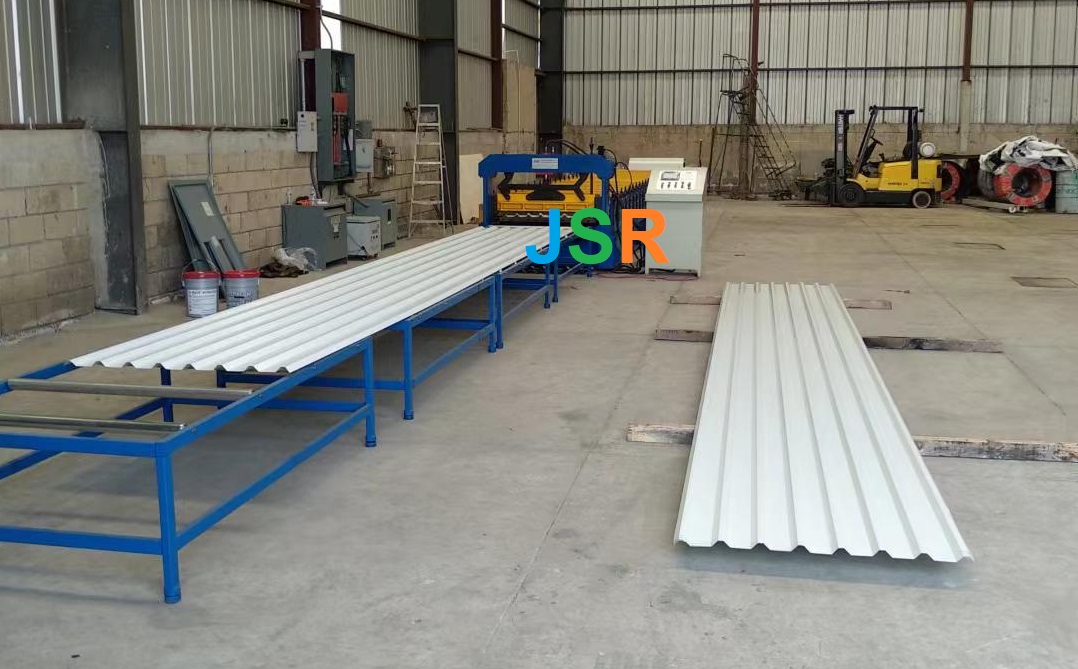

the customer buy our r 101 machine 2019, buy cz purlin machine 2023
our standard roll forming machine for C and Z sections, make size 100-300mm, thickness1.5-3.0mm with TWO punch hole design for screw.
Our technician stay two days in his factory to set up machine, make the order and train his worker how to change between c and z and change between sizes.
It is convenient and time save to change size by press bottom to move whole side roller in or out to fit for different size
JSR CZ purlin machine already in India, Mexico, costa rica, guatemala ,colombia, brazil,vietnan, UAE, ghana….
The most important, it is common small size c purlin will twist if the length long, we equipped with special straighter to guarantee the best quality.
how to make c purlin ?
how to make z purlin ?
how to program cz purlin machine?
how to set up c z purlin machine?
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 10m x 1.4m x 1.8m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0mm |
| Coil width | According to products size |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 14-16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customers requirement |
Layout of CZ
APPLICATION
Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.
Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.
Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.
Operate easily , work automatically with PLC controller control.
Decoiler- forming- punch – cut – run out
