Lybia-Roof and wall corrugated sheet roll forming machine

Facebook
Twitter
LinkedIn

Description

Lybia customer buy our Roof and wall corrugated sheet roll forming machine 2015

YouTube player

The single layer corrugated sheet manufactured from galvanize or aluminum in 31/153 form. Applicable to roofs and exteriors. 6 pitch. Has 765 mm net application width.

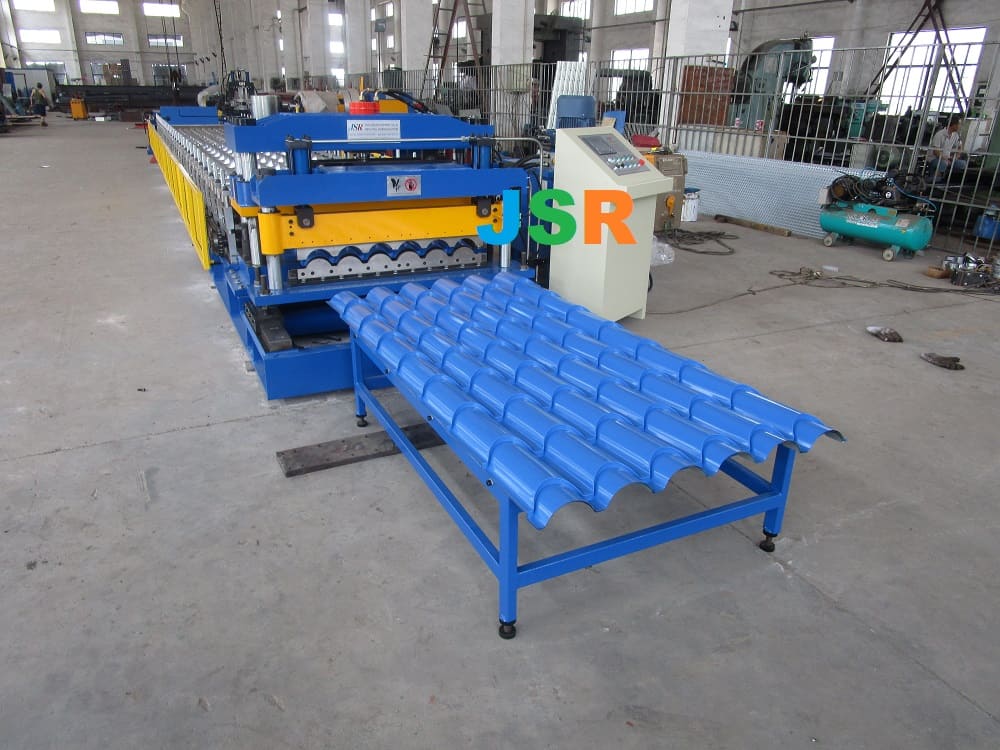

one year later, this Lybia customer buy roofing crimping machine and spanish metal tile roofing machine,

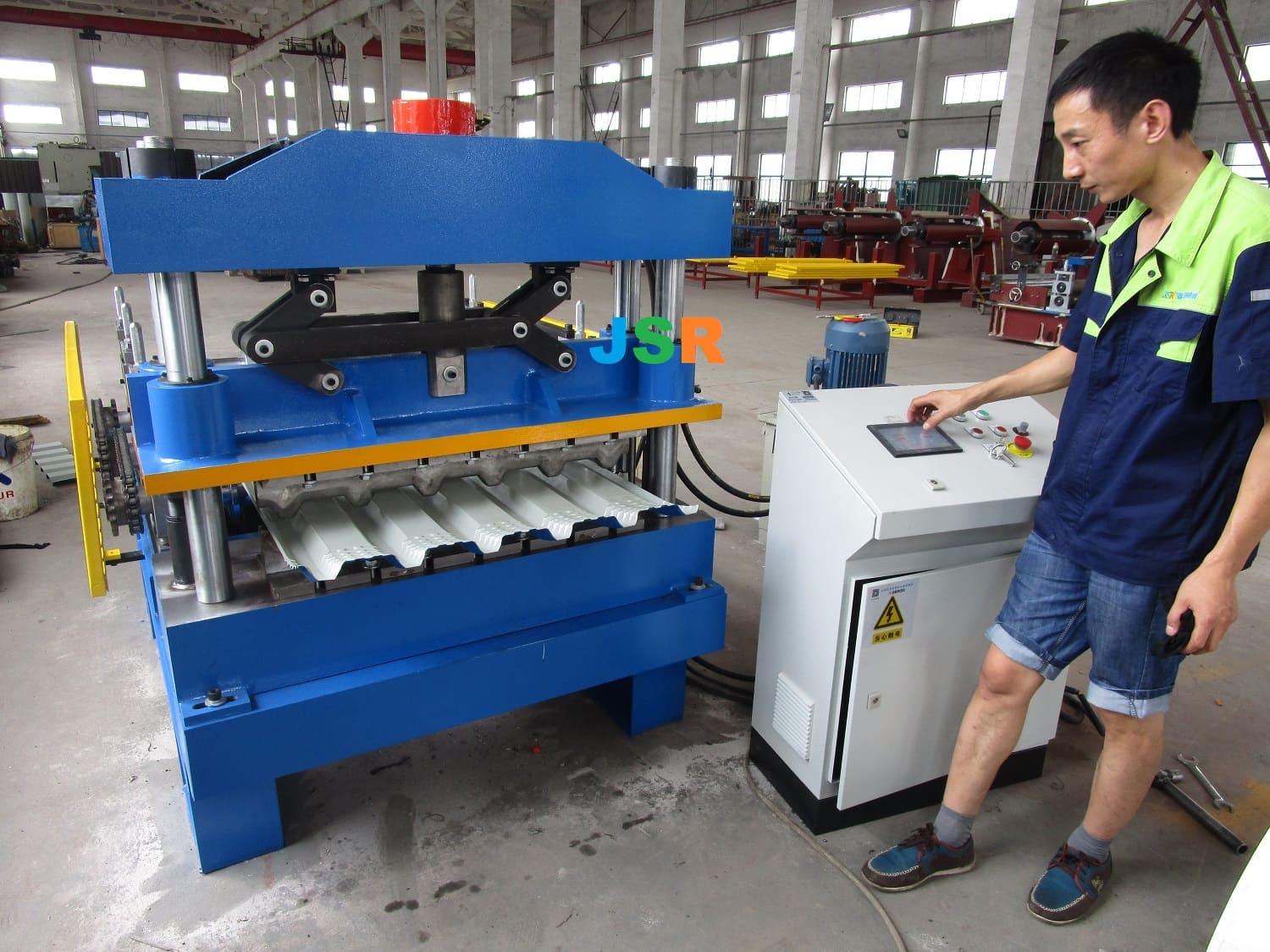

Crimping machine is to make corrugated sheet curve.

YouTube player
YouTube player

after he get these two machines 2016, at the same year, he also buy automatical c purlin machine and k span roll forming machine

YouTube player

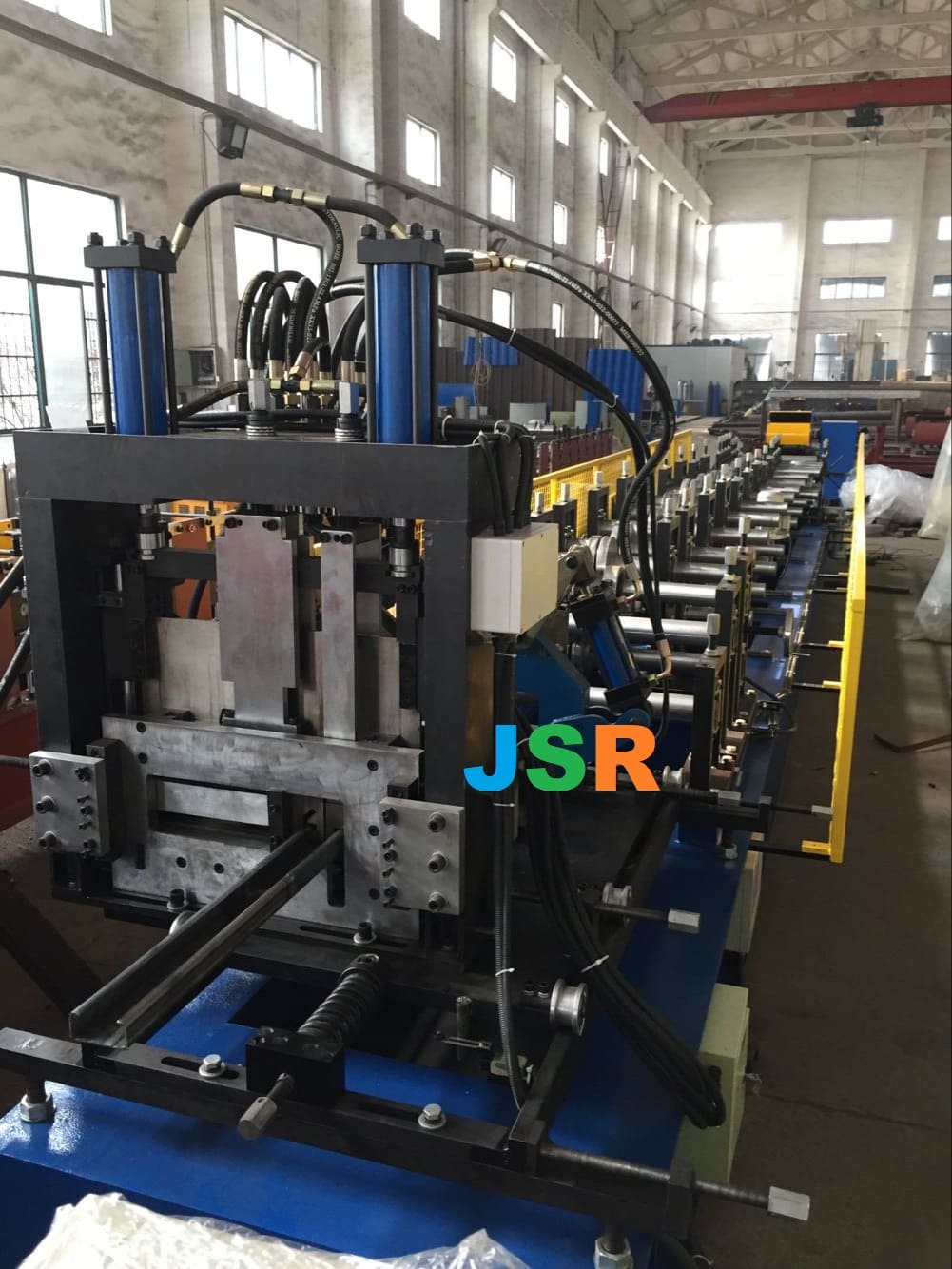

this c purlin machine is automatically change size, you only put your required size into PLC controller, controller will give signal to motor, the motor will drive rollers to your required size.

it is very convinient and time saving change compared to traditional c purlin machine, which change size by change spacers between rollers manually.

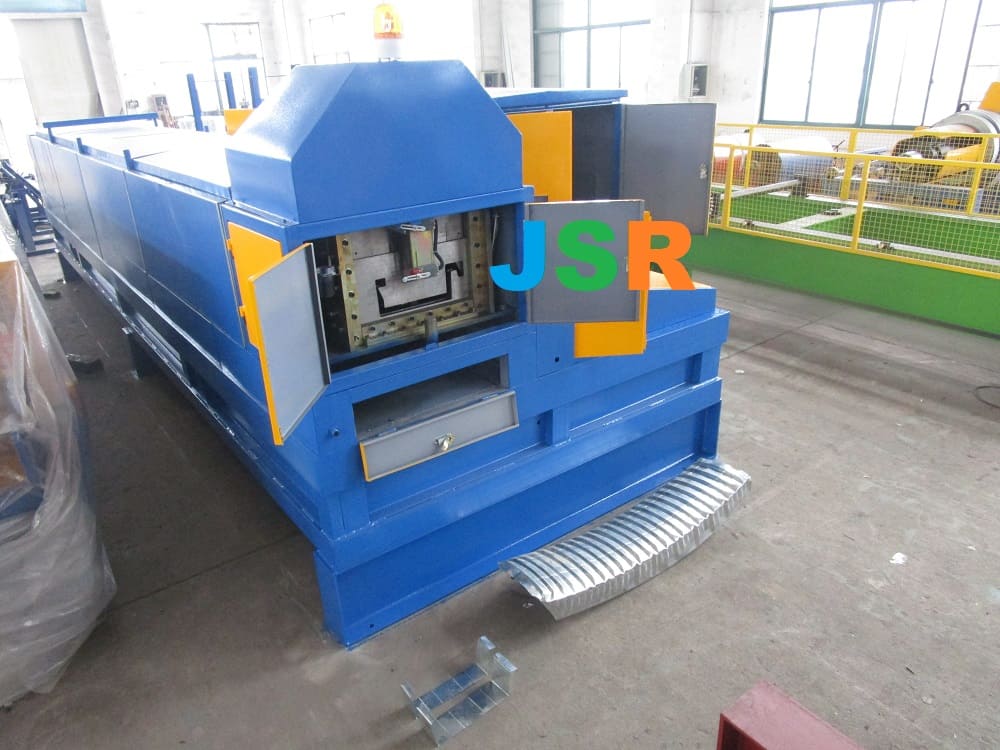

k pan roll forming machine is very popular in Lybia

YouTube player

2019, this Lybia customer buy another new corrugated sheet forming machines,

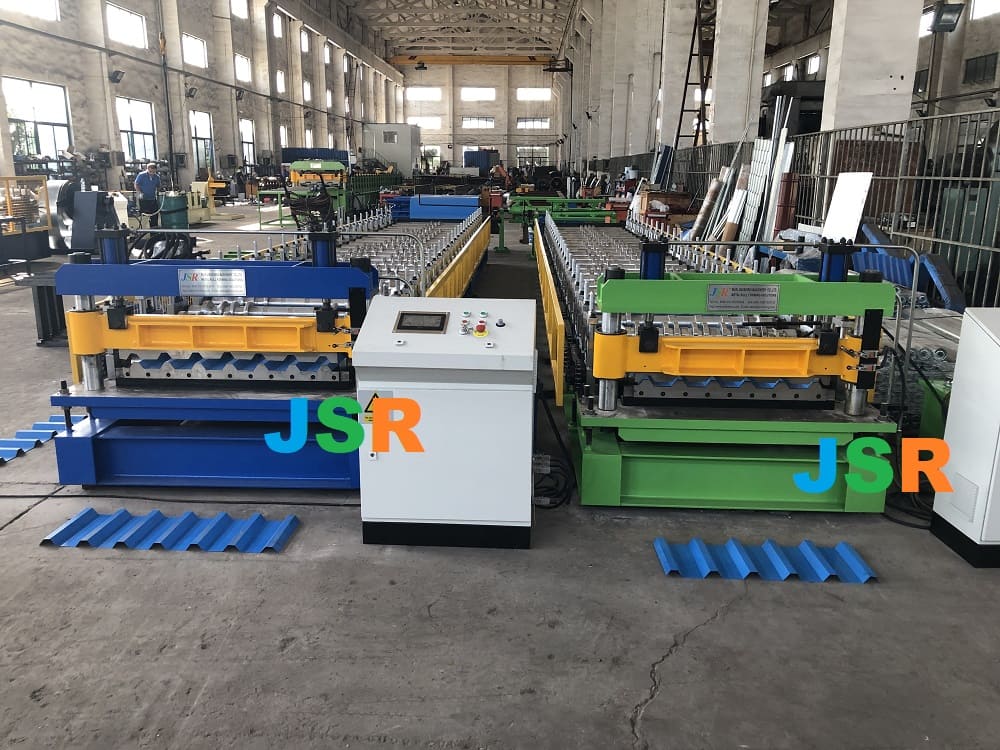

one corrugated sheet roll forming machine feeding width 1000mm, 6 pitch. Has 765 mm net application width.

YouTube player

the other corrugated sheet roll forming machine feeding width 1220mm, 7 pitch. Has 918mm net application width.

YouTube player

now 2023, we are talking for new roll forming machines.

customer buy and buy, it is because he is happy with our machine quality and service,

you will be happy and satisfied with our roll forming machines too.

hope to make your machines soon.

whatsapp 0086 188 5102 5752



Specifications

Roofing sheet Machine Specifications
WeightAbout 8000kgs
SizeAbout 10m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialColored Steel Coils
Thickness0.3-0.7mm
Coil width1000 ,1220mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations20-22
Diameter of forming rollers shafts75mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
