Low Profile T35-40-1035

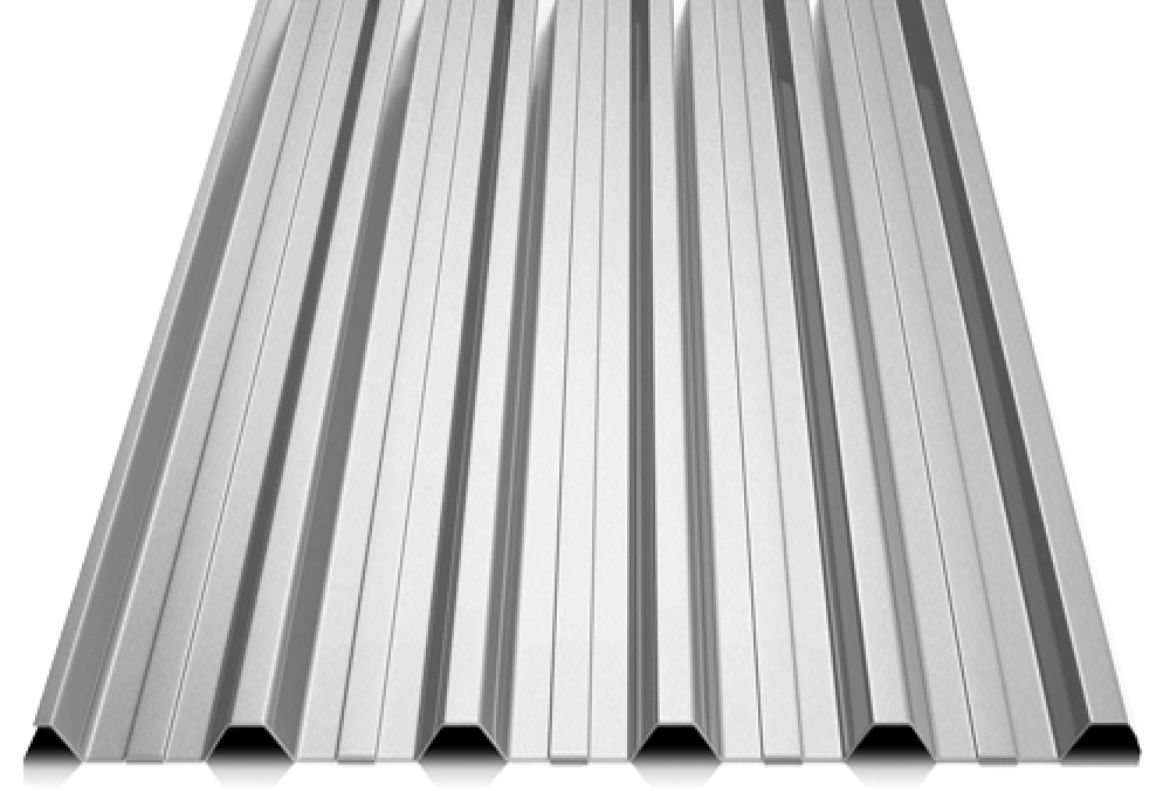

Low profiled sheets are designed for commercial and industrial buildings’ facades and internal linings. Easy and fast to assemble, low profiled sheets are a perfect choice when speed of construction and functionality is a key.

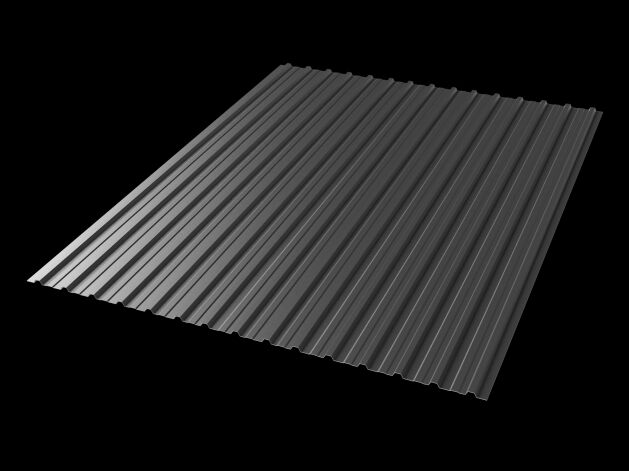

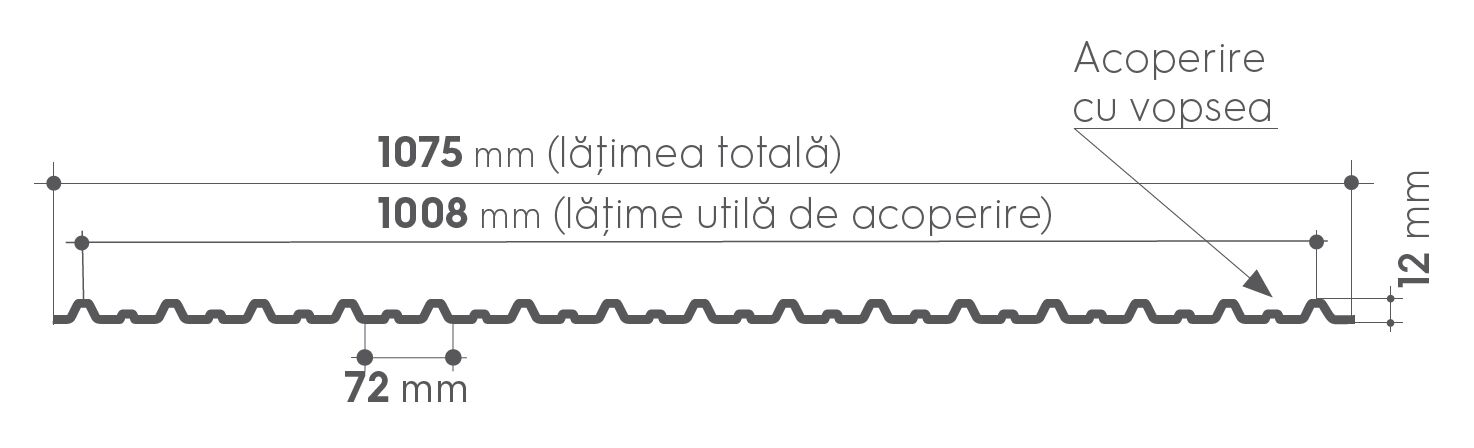

The metal cladding sheet H-12 with trapezoidal profile has a crease height of 12 mm. H-12 is used for the construction of industrial halls, roofs, but also for facades and fences.
This cladding sheet is profiled in 2 ways: with the folds outwards for the façade and with the folds inwards for the roof.
forming machine summary
mitsubishi or siemens PLC , converter and screen.
main motor power 7.5kw
hydraulic power3kw
16 roller stations.
75mm diameter solid shaft.
suitable for one 40 GP loading.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 12000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1219mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
roll forming machine working video in customer factory
cladding profile making machine in India
Mini orb profile forming machine in Malaysia
IBR roll forming line in Malawi
trapezoidal roll former in Colombia
fast speed roof panel forming machine in Bengal
