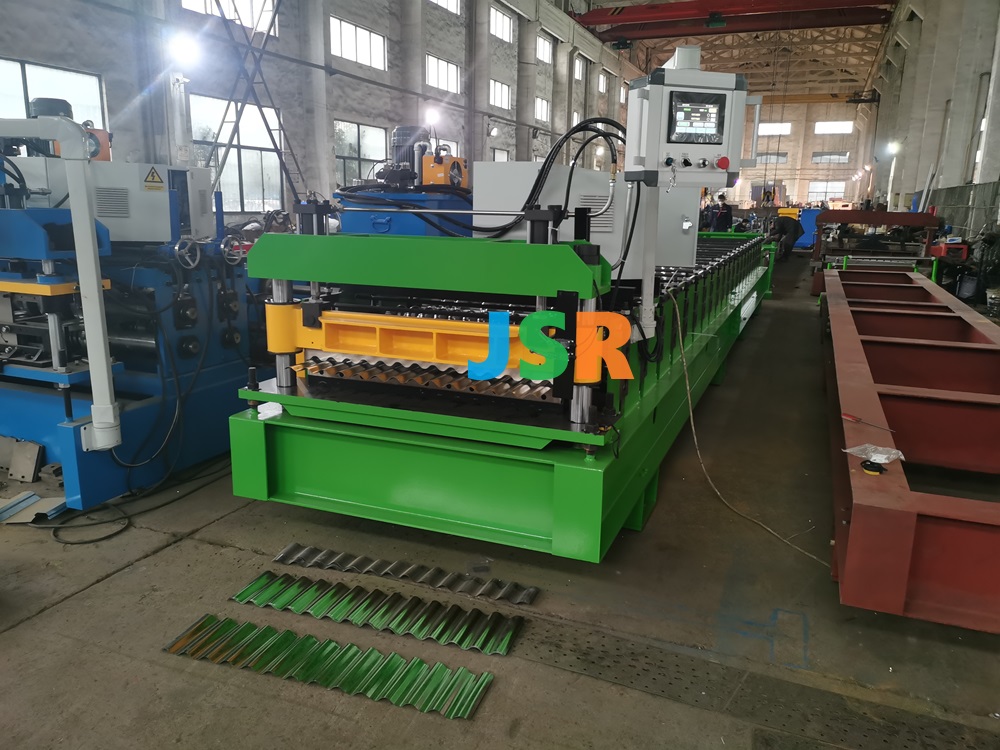

la máquina para láminas ondulados-rollformers
only set length and piece, machine will automatically work
machine for raw material 1220mm width 0.3-0.7mm thickness, to make 1032 mm effective width ondulados
we also make machine for thin material, such as 0.2-0.3mm
Suitable raw material for trapezoidal metal sheets roll forming machine
1 ) Suitable Raw Materials: galvanized steel coils. PPGI
2 ) Suitable Coil Thickness: 0.3-0.7mm
3) Yield strength of raw material: 235-345Mpa
Main parameters of trapezoidal sheets roll forming machine
1) Forming Speed: about 25m/min. (excluding the cutting time)
2) Main Motor Power: 7.5KW (Depend on final design)
3) Hydraulic Station Power: 3KW (Depend on final design)
4) Control System: siemens PLC and yaskawa converter
5) Encoder: Nemicon (Japan)
6) Rollers’ material No.45 steel plated with hard chrome
7) Shaft diameter 75mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 220V/3Phase/60HZ(oraccording to customer)
10) Total Weight: About 10000 Kg
Main components of corrugated sheet forming machine
(1) Manual decoiler 1 set（Capacity : 5 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
