Hydraulic drill and C purlin machine to Brazil

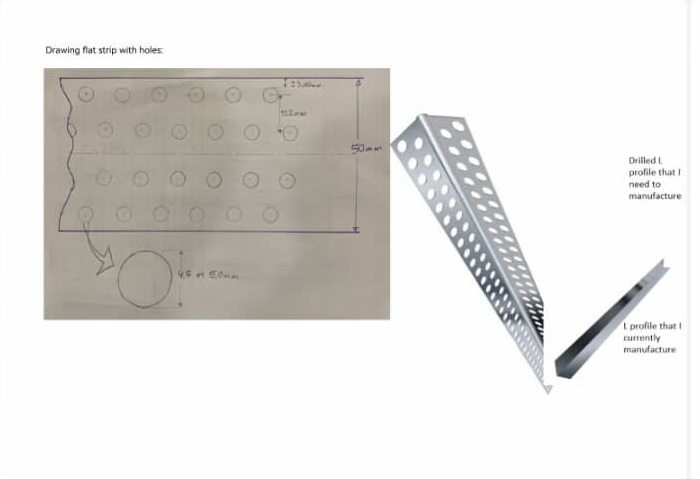

customer already have L profile roll former,  he want L profile drilled

we make hydraulic punch device , powered by 7.5kw hydraulic station power. with servo feeding 0.75kw

working speed about 4m/min

we also have punch machine punch, speed about 8m/min

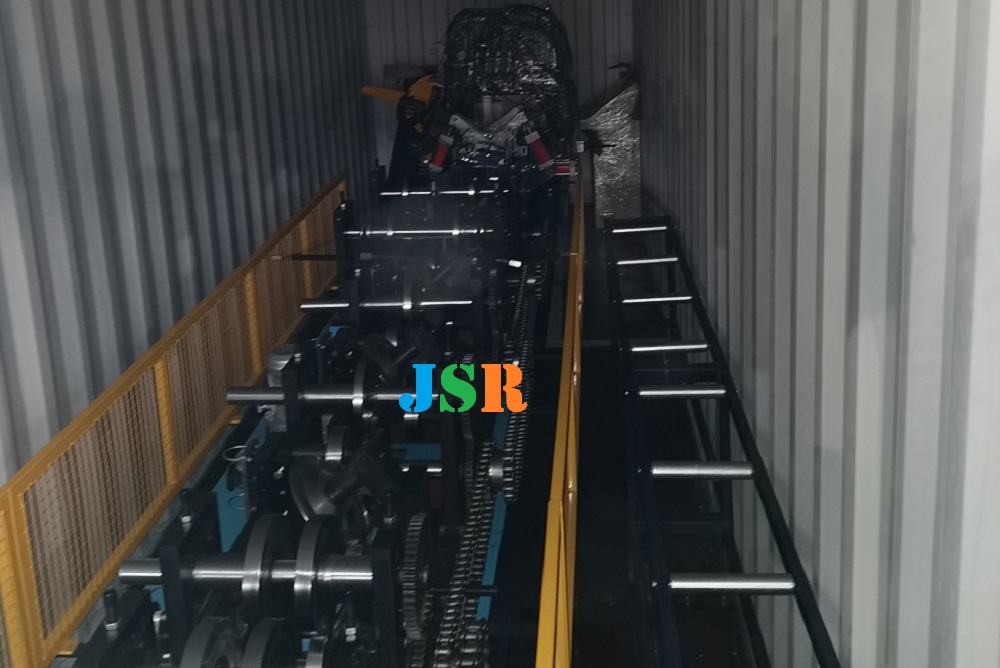

C purlin machine to make raw material yield strength till 600mpa

we use 18.5kw main motor, 5.5kw hydraulic motor for post cut.

use solid shaft 70mm diamater with special treatment

customer require SKF OR FAG bearings

c purlin machine working in customer factory
