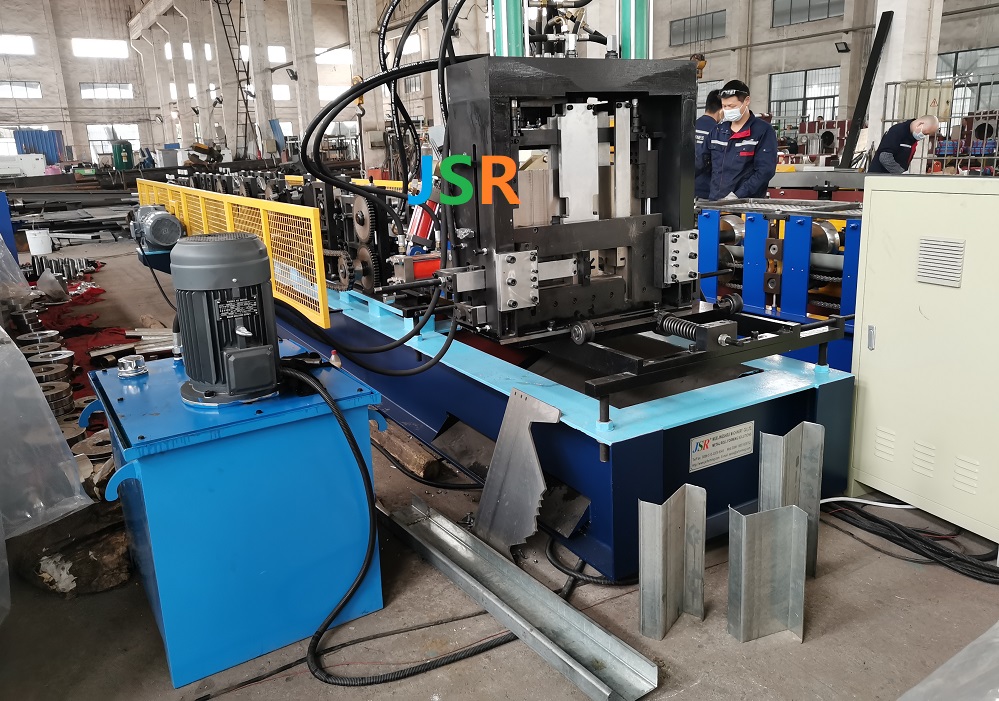

CZ Purlin Forming Machine to India

Suiting raw material for purlin roll former

1 ) Suitable Coil Thickness:  1.5mm -3.0 mm

2 ) Suitable Raw Materials: galvanized steel sheet

3) Yield strength of raw material: 235-345Mpa

Main parameters of purlin roll forming machine

1) Forming Speed:                      Max. About 15m/min. (excluding the cutting time)

2) Main Motor Power:                15KW (Depend on final design)

3) Hydraulic Station Power:        5.5KW (Depend on final design)

4) Control System:                       Mitsubishi or Siemens PLC and transducer (Japan)

5) Encoder:                                   Nemicon (Japan)

6) Rollers’ material                    GR15 Steel with quench treatment

7) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

8) Type of Cutting:                   Length-set cutting and post forming style

9) Electric Condition:                415V/3Phase/50HZ(or depend on customer)

10) Total Weight:                       About 9500 Kg

Main components of purlin roll forming machine

(1) Manual decoiler                              1 set（Capacity : 3 tons）

(2) Roll-Forming M/C                          1 set

(3) Hydraulic Cutting                            1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) Product Rack (un-powered)            1 set

Note: hydraulic decoiler and pre cut device is optional with additional cost.
