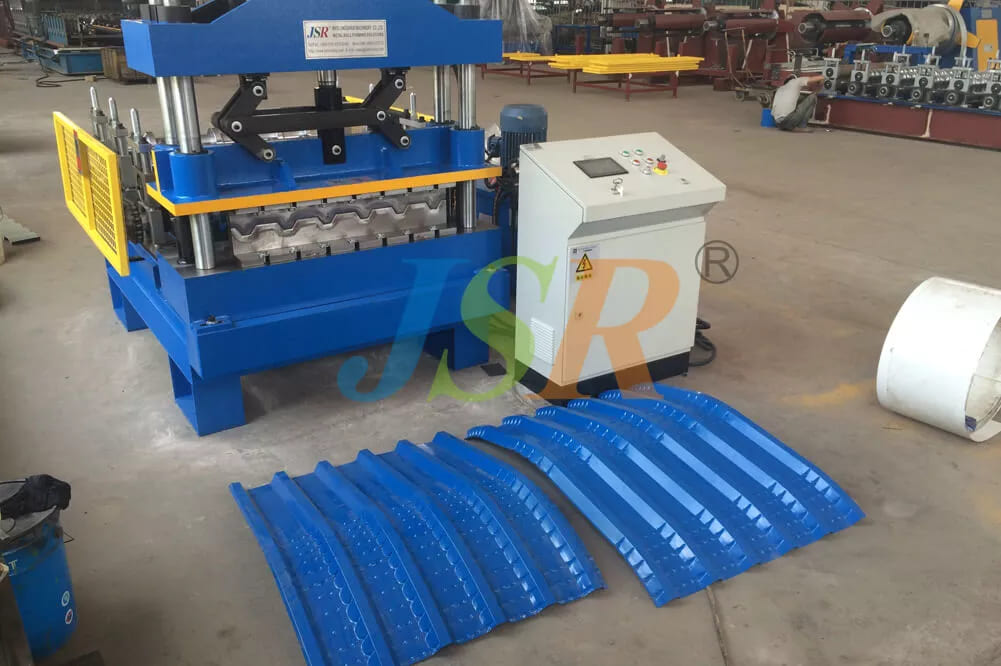

Hydraulic Crimping Machine for Curving Roof Sheet
Crimp roofs use a series of metal sheets that are attached from eave to ridge using an exposed fastening system. Crimp panels typically require a solid roof deck with a waterproof membrane.
if customers want to make crimp roofs, you need only only buy crimping machine, but also metal roofing machine, because
we make metal roofing from roofing machine, then feed roofing to crimping machine to make roofing crimped or curved.

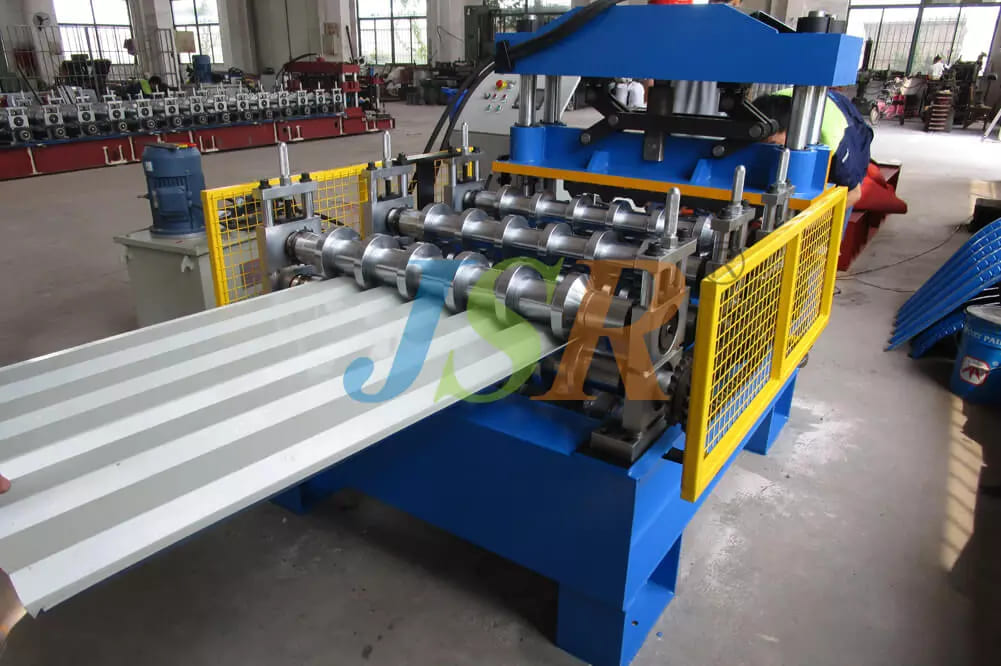

crimping machine or curving machine consist of three feed rollers, crimping device, hydraulic station which give power to crimp,
siemens or mitsubishi plc control system.
you can choose crimping or curving shape or degree.
this crimping machine is traditional , power by usual motor , so curve about 12 times per minutes
if you need curve more fast, we have curve machine power by servo motor 1.5kw.
machine can curve about 20 times or more in one mimutes.
video as
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 1500kgs |
| Size | About 1.6m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Roofing Sheets |
| Thickness | 0.3-0.7mm |
| Sheet width | 1000mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of feeding rollers stations | 3 |
| Diameter of forming rollers shafts | 75mm |
| Production Speed | Pressing 12times/min |
| Rollers material | No.45 steel, coated with chromed treatment |
| Pressing die material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2.2kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Feeding tables | 1 set |
| Hydraulic Pressing system | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |

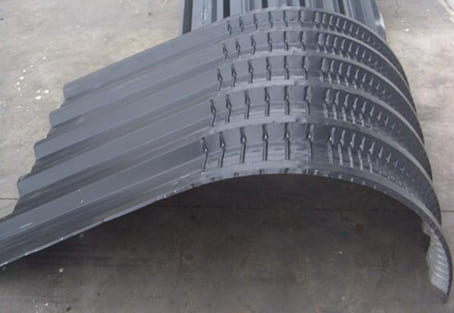

End product view
