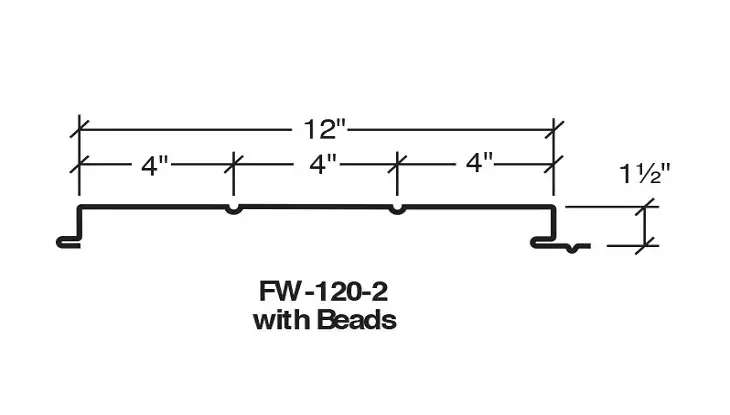

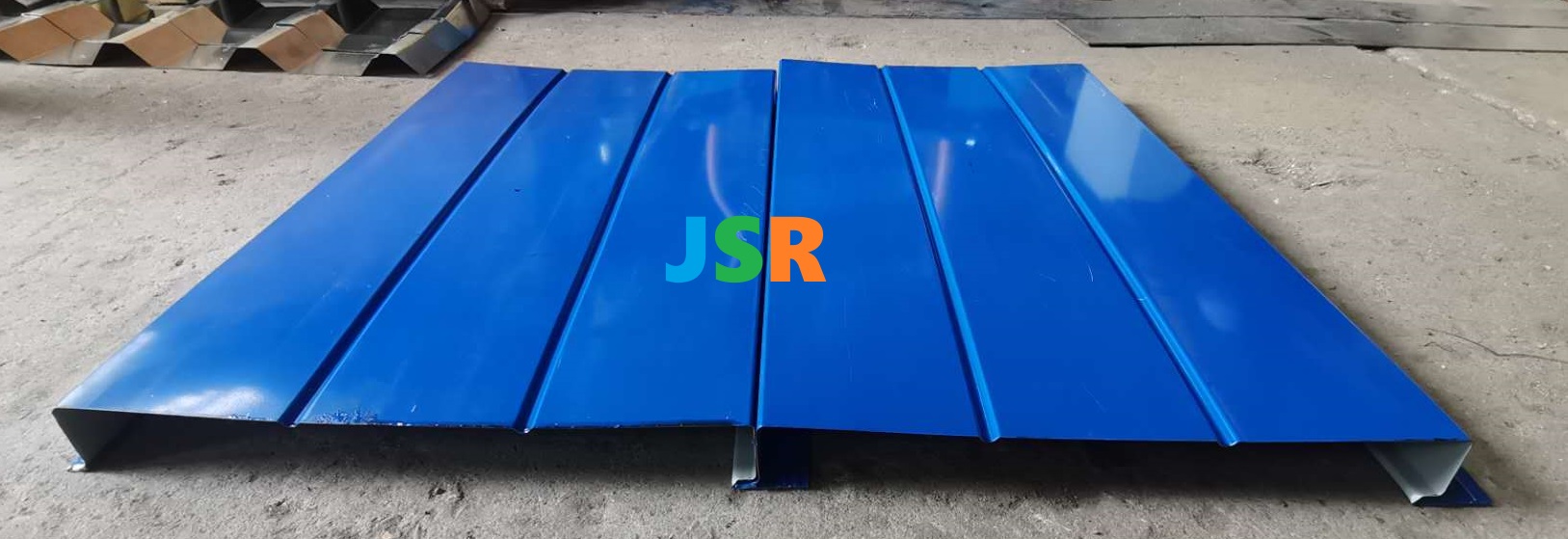

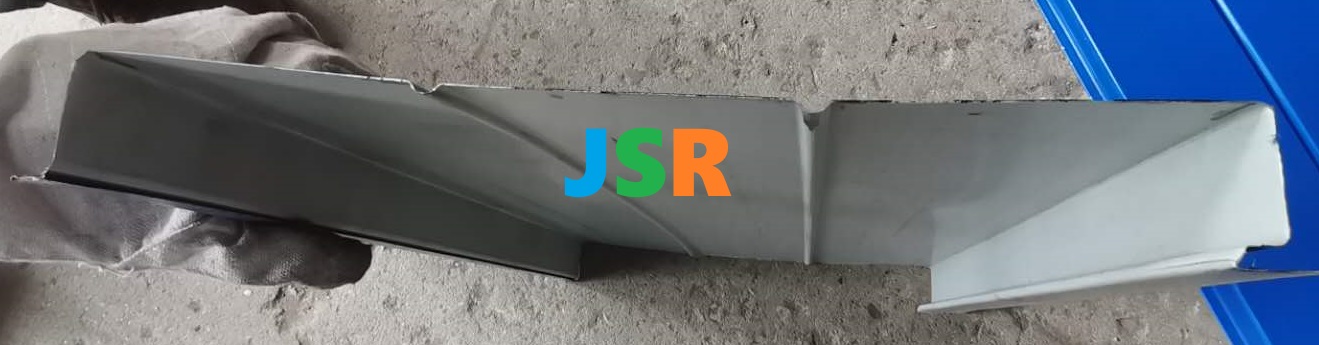

The FW-120 panel is a concealed fastener wall and liner panel that provides a flat appearance. FW-120 is commonly used for architectural, commercial and industrial markets. The heavy gauge offering provides for large spanning capabilities, particularly in composite wall applications.
FW120 panel line include 3 ton manual decoiler, forming machine with precut and post cut, hydraulic station. plc controller , run out table
customer can choose pre cut or post cut,
advantage of post cut, you can make short length, less than 2m, if pre cut, length more than 2m
siemens plc and yaskawa converter.
machine will automatically work
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 6000kgs |
| Size | About 7m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.6mm |
| Coil width | 440mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |

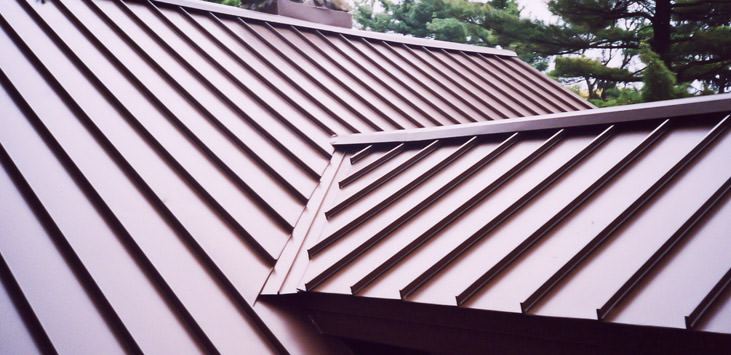

APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
