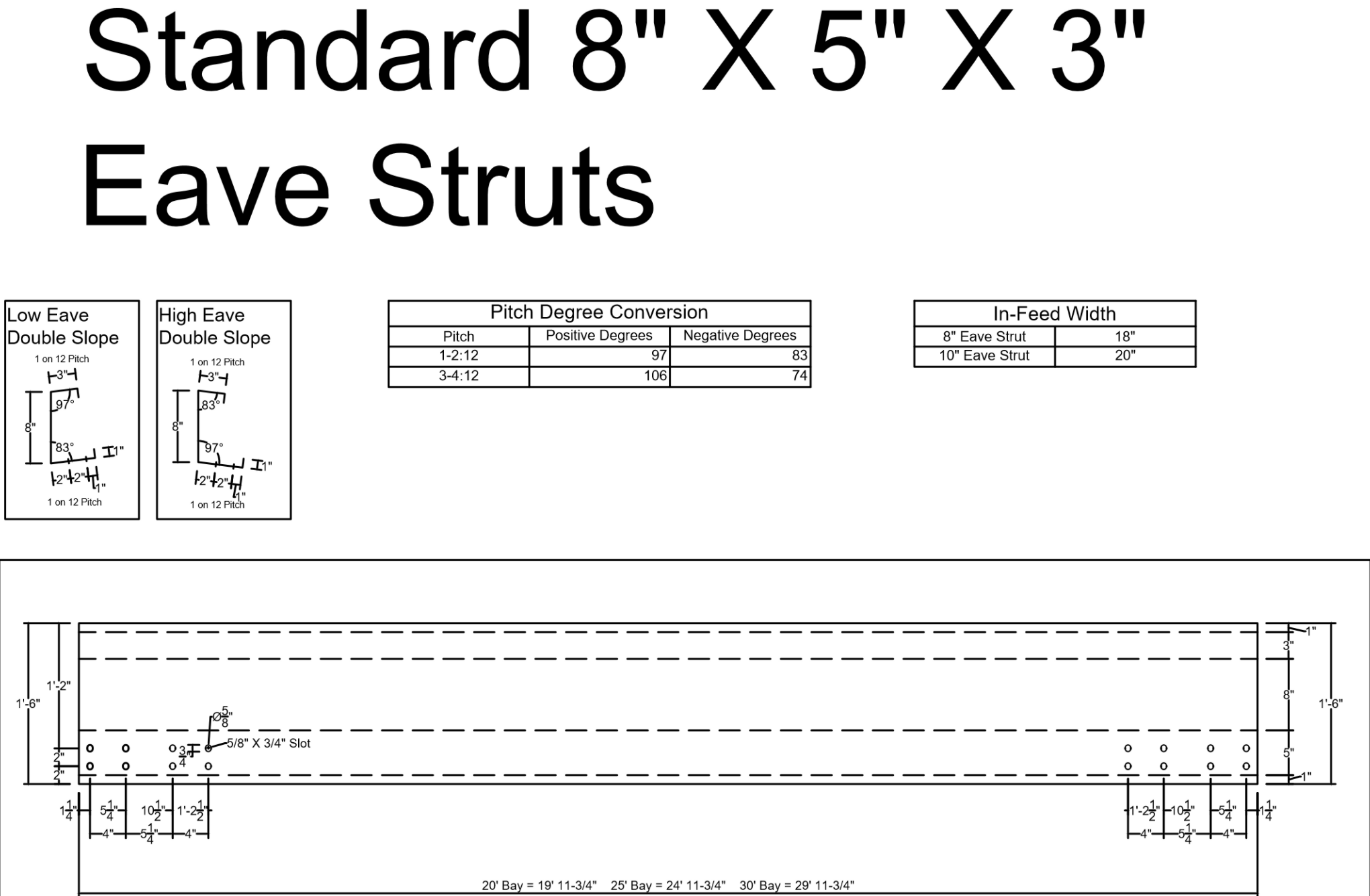

Machine can make 8 ”x5” x3” and 10 ” x 5” x 3”, only press bottom, rollers on frame will move by motor
above video is machine make 10 inch , and follow video is machine make 8 inch.

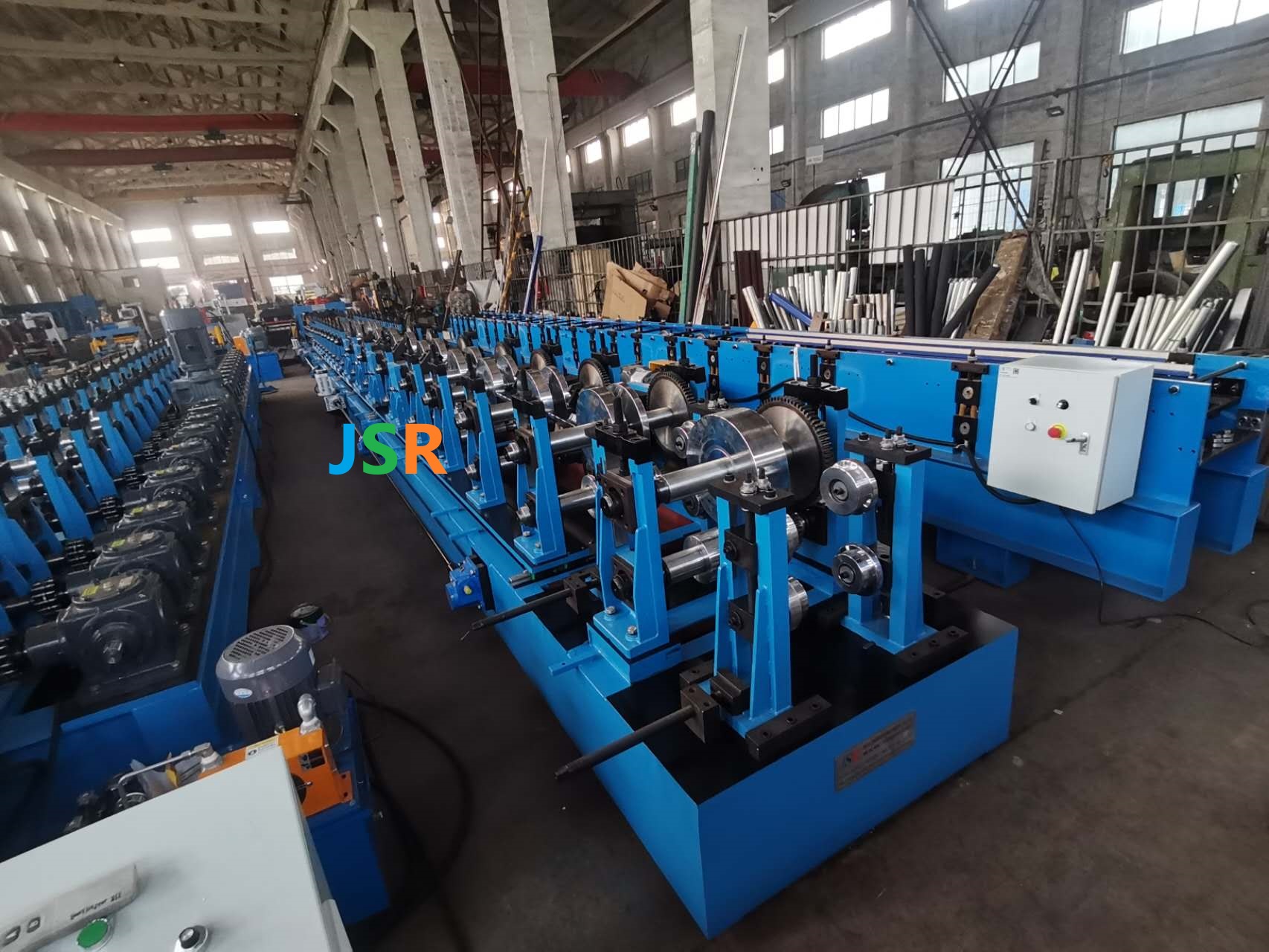

you will see machine make eave strut length 2.5m automatically

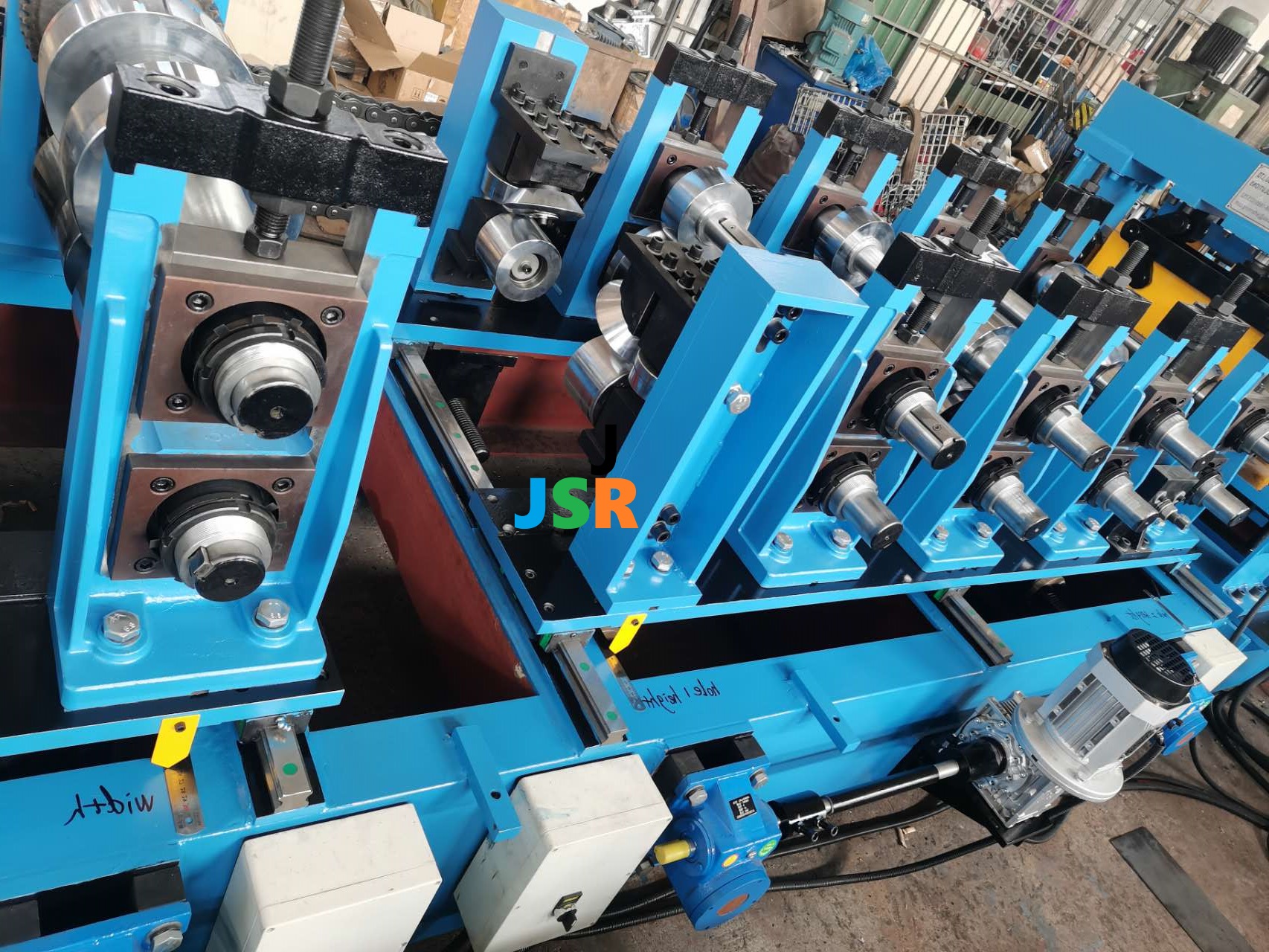

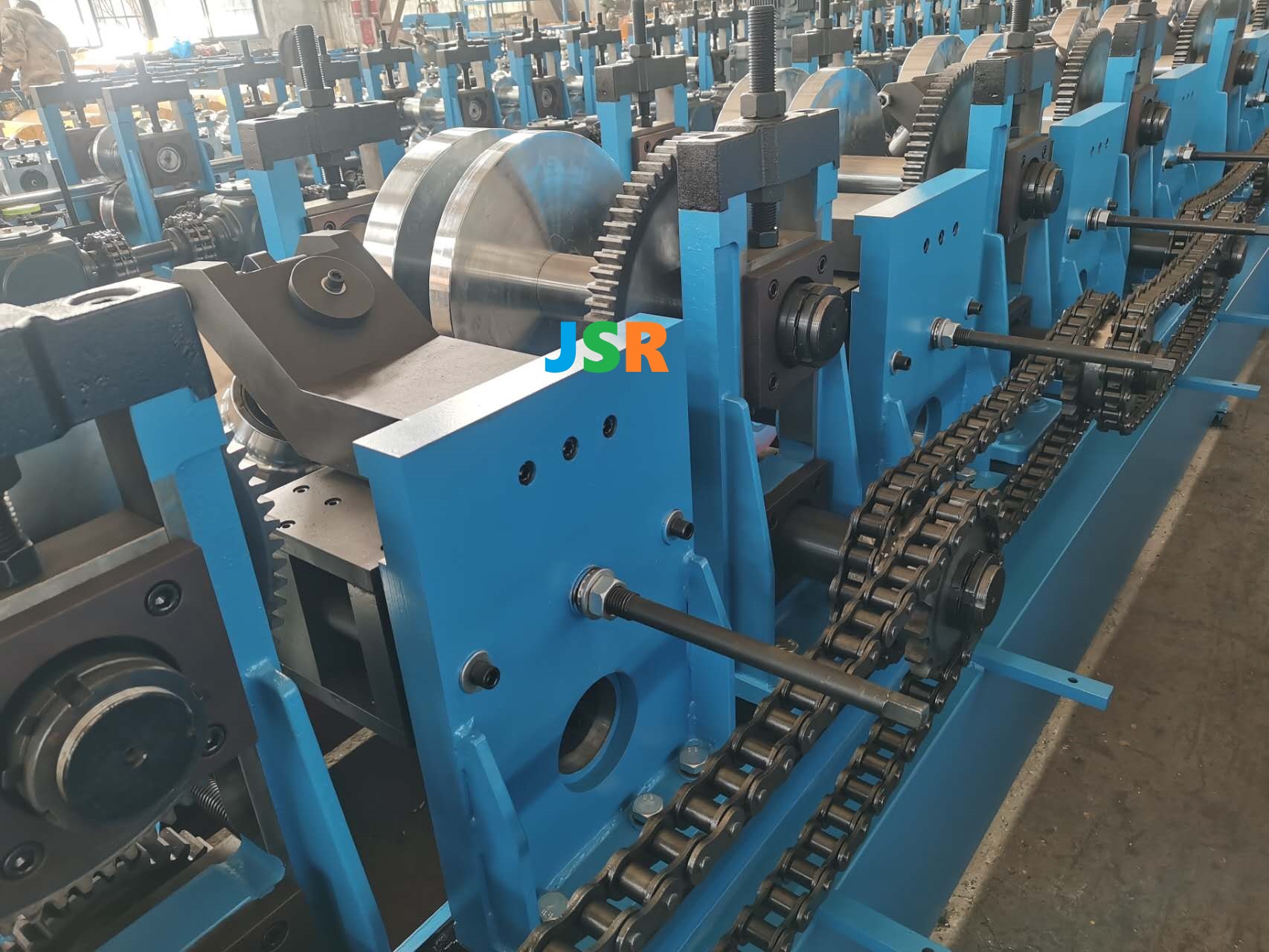

Last two side rollers can adjust degree.

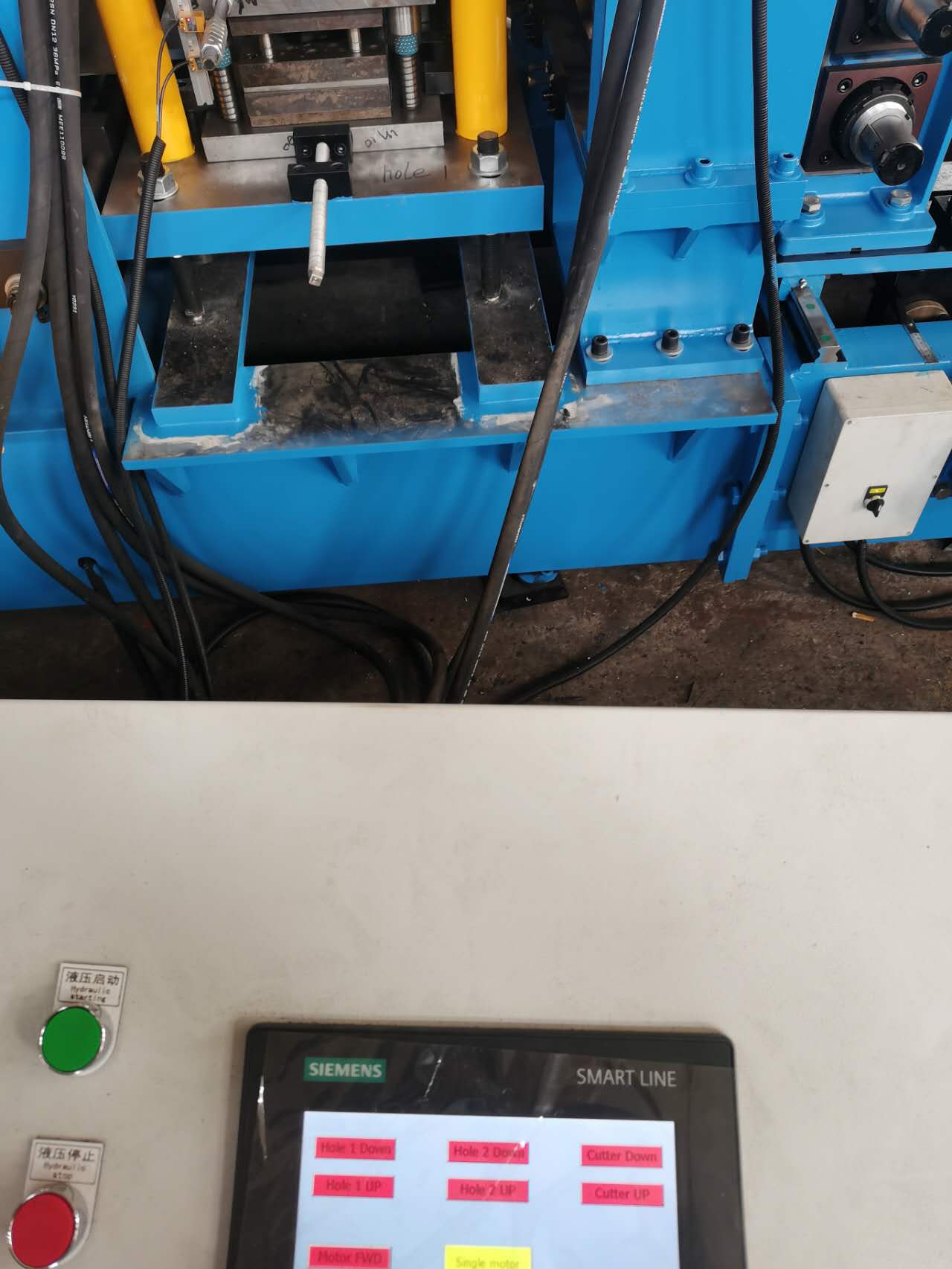

we can choose punc left side hole (1)or right side hole(2) on plc controller, and set hole number and length on controller
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 15000kgs |
| Size | About 22m x 2m x 1.8m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.9-2.6mm |
| Coil width | According to products size |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 18.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customers requirement |
APPLICATION

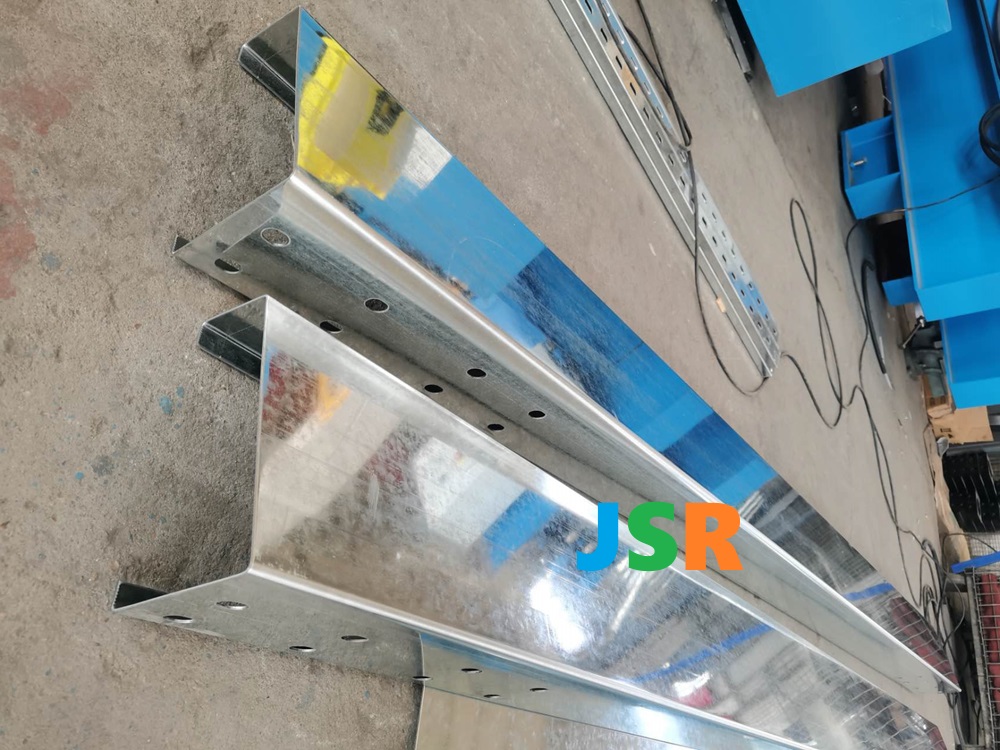

Another structural member of your building similar to girts and purlins are eave struts. Eave refers to the line along the sidewall formed by the intersection of the planes of the roof and the wall. Therefore, eave struts are located at the eave of a building that supports roof and wall paneling and are in the shape of a “C”.
Operate easily , work automatically with PLC controller control.
Decoiler-punch -cut- forming – run out
