down pipe machine or Downspout forming machine make precise and well sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.
Advantage of metal down pipe;
galvanized steel guttering resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycled.
The downpipe forming machine we produce is customized according to the specific requirements of customers, such as specification and raw materials. The machine is installed and tested before leaving the factory. After receiving the machine, the customer can start production once connect wires and tubes. We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference. Technicians Can also be sent to customer factory for guidance and training if necessary.
the downpipe roll forming machine also work with elbow machine, which make flat pipe to curve according to construction requirement.
This downspout machine make square spout 100x100mm
machine make Rectangle downpipe 220x100mm

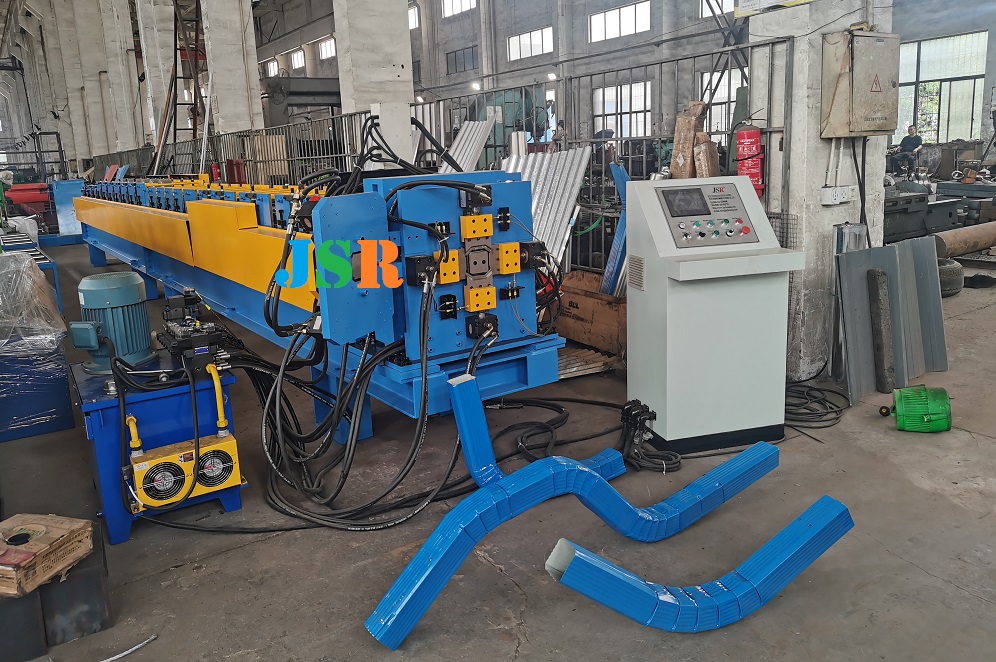

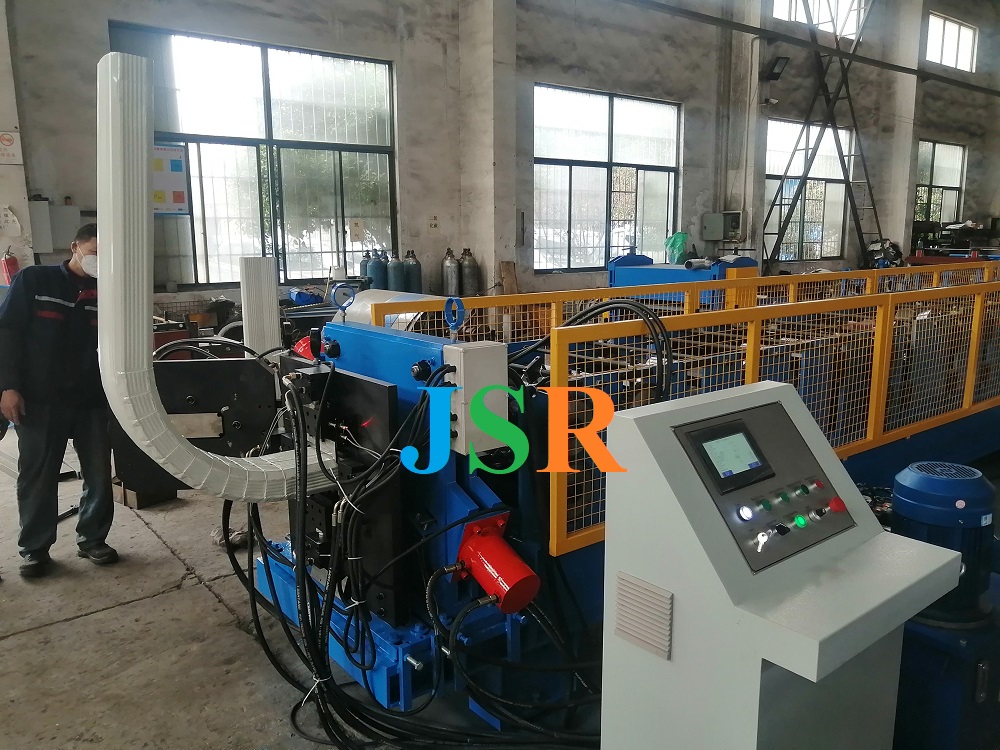

the machine can make straight downspout or elbow downspout at the same machine. or combined machine.
here is machine make round downspout
besides, we also make one machine only make straight downspout, and one machine make elbow downspout, that is two machines, seperate machines.
two machines can work at same time, so production efficiency is high compare to combined machine, one time only make straight pipe or elbow pipe.
100X100 DOWNPIPE machine load in one 20 feet container
220X100 downpipe machine load in one 40 feet container
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 11m x 1.2m x 1m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.8mm |
| Coil width | 325mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 8-12m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Motor of roll forming machine: 7.5kw |
| Motor of cutter and elbow: 5.5kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Roll Forming system | 1 set |
| hydraulic cut system and elbow system | 1 set |
| PLC control box | 1 set |
| Run outs tables | 1 set |
Layout of downpipe machine
APPLICATION
Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.
We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.
Machine work automatically, operate easily.
Decoiler- forming-cut – run out
