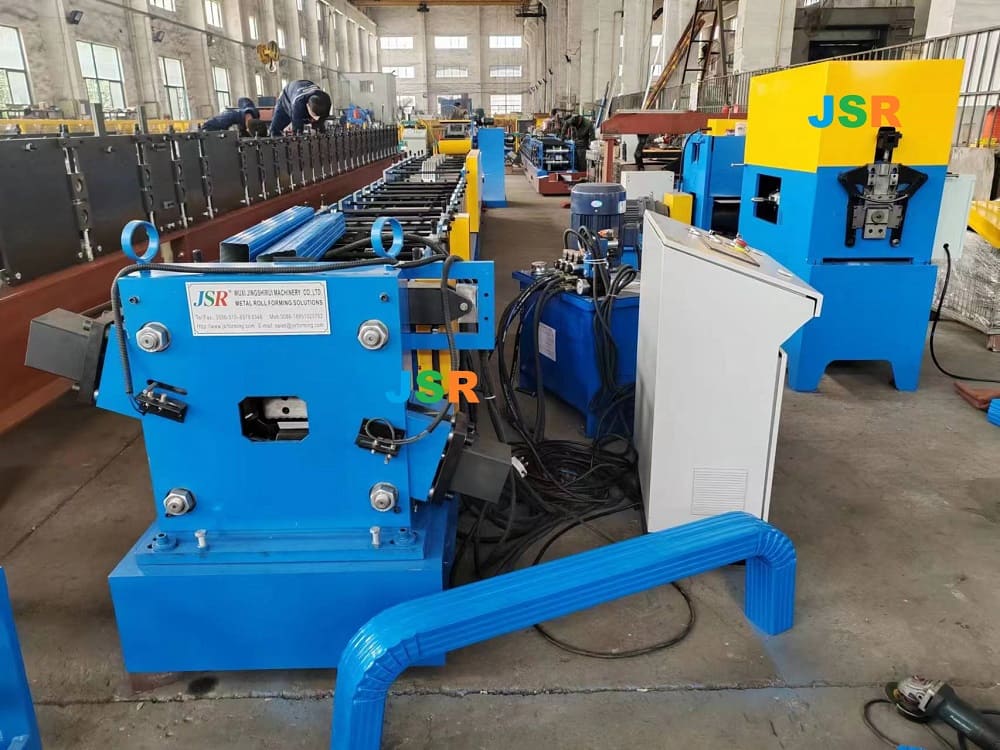

down pipe machine or Downspout forming machine for pipe size 4X3 inch made for USA.

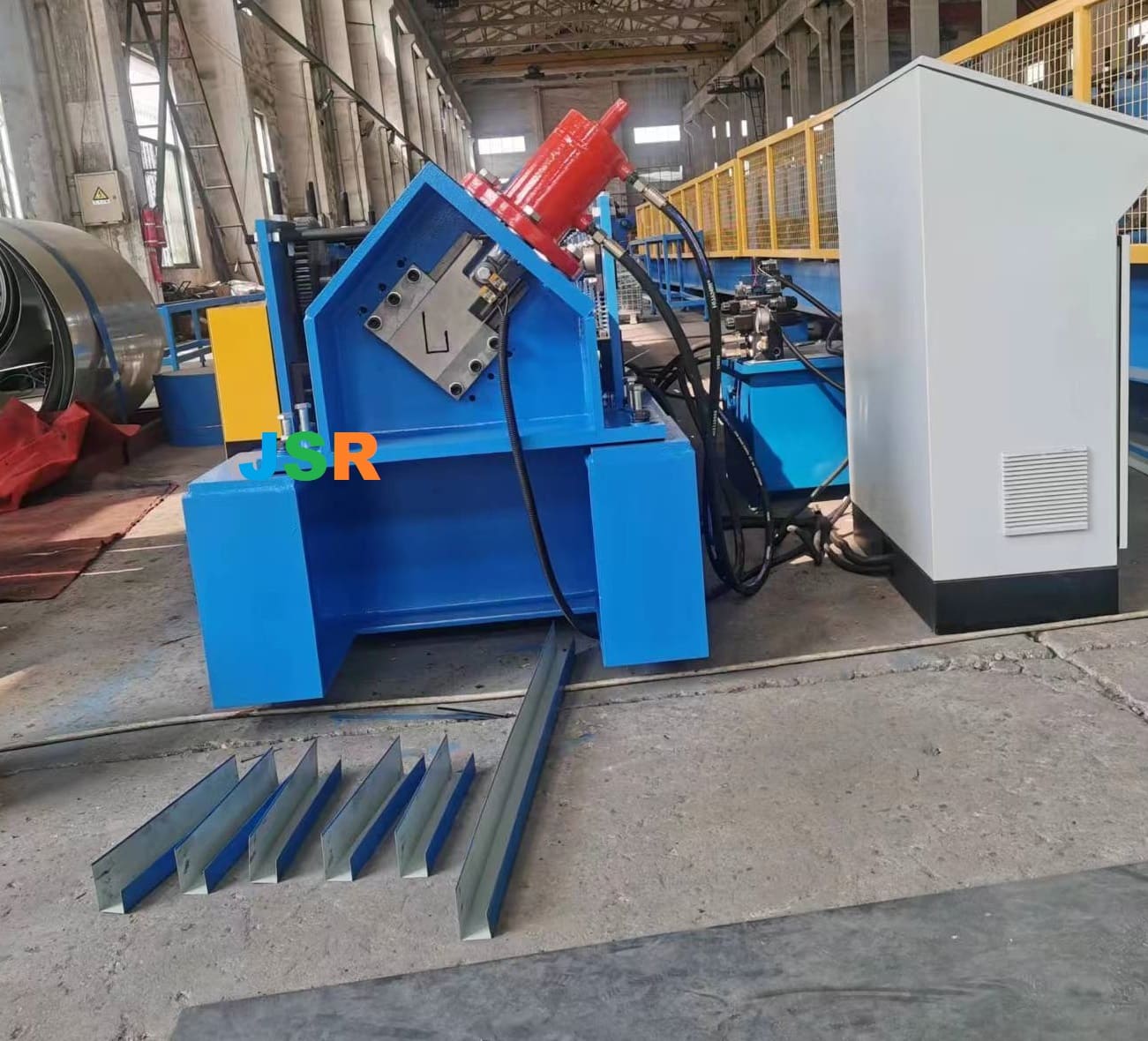

J profile roll forming machine , drip edge machine.
three machines load into 40HQ.
Samples from our machines delivery by DHL to customer to check quality.
roll forming machines are welled installed and tested before delivery,
you only connect some wire and tube according to video.
if you need our technician go to your factory, our technician with america visa, he go to america and mexico and nearby countries every year
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 8m x 1.2m x 1m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.6mm |
| Coil width | |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 8-12m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Motor of roll forming machine: 5.5kw |
| Motor of cutter 4kw | |
| Motor of elbow 2.2kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Roll Forming system | 1 set |
| hydraulic cut system and elbow system | 1 set |
| PLC control box | 1 set |
| Run outs tables | 1 set |

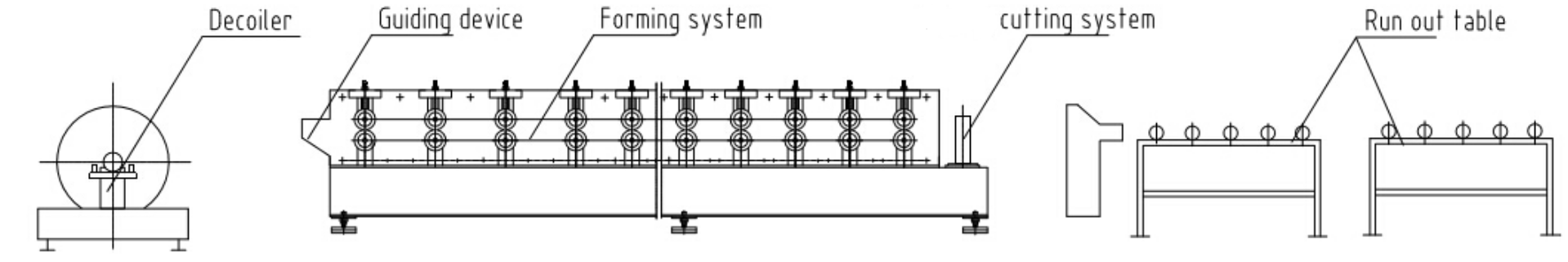

Layout of downpipe machine
