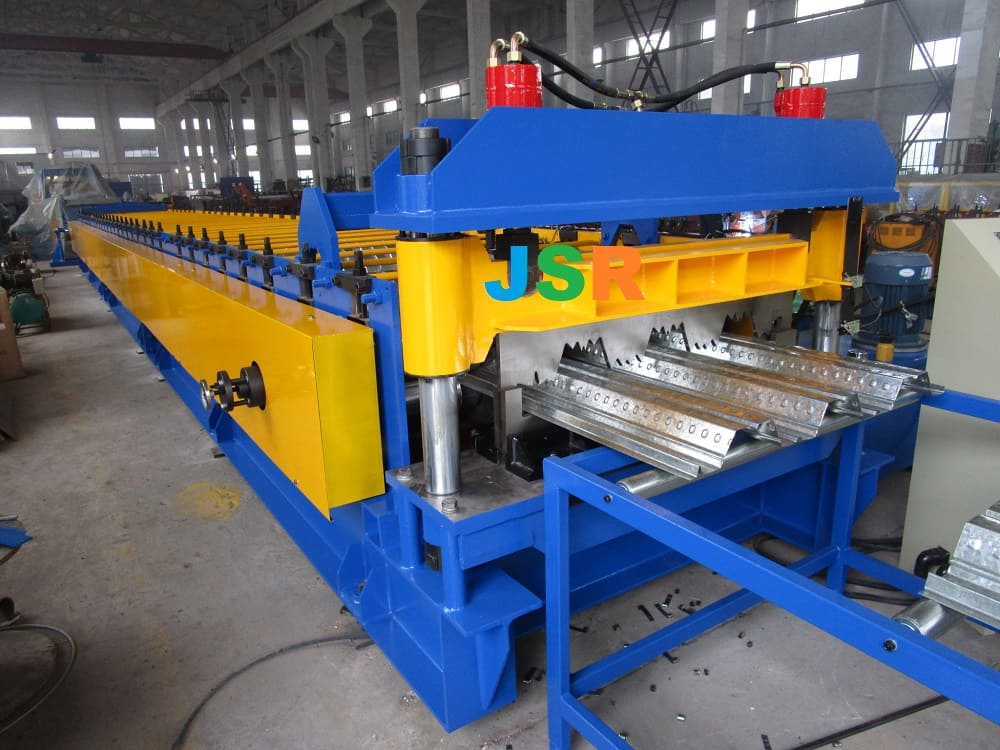

Composite metal floor deck machine & Form deck machine

Facebook
Twitter
LinkedIn

Description

Composite metal floor deck has embossments designed to interlock with concrete slabs. The combination of floor deck and concrete serves the dual purpose of permanent form and positive reinforcement.

three common types of composite deck: 1.5 inch, 2 inch, and 3 inch.

1.5 Inch Composite Deck roll forming machine

1.5 inch Composite Deck, sometimes called Type B, is used for applications in outdoor flooring. It is the lowest profile type of composite deck, and is best used for short spans.

YouTube player

2 Inch Composite Deck roll forming machine

Compared to 1.5 inch, 2 inch composite deck is much stronger. It can hold up very thick concrete slabs, and is most often used for medium to long span applications in outdoor flooring.

YouTube player

3 Inch Composite Deck roll forming machine

3 inch composite metal deck is the deepest and most durable type of composite floor deck that is widely used in construction. It is typically used for long span applications in flooring.

YouTube player



Form deck serves as a permanent steel base for poured, reinforced concrete floor slabs.

Unlike composite deck, it does not have embossment. Additionally, instead of being interlocked within the concrete, form deck is used to support the weight of wet concrete that is poured on top of it to create flooring systems.

The three most common types are 9/16 inch, 1 inch, and 1.5 inch form deck.

9/16 inch steel form deck machine

YouTube player



1.5 Inch Composite Deck roll forming machine can also make 1.5 inch form deck only rise the emboss rollers.

Specifications

Technical Details

Machine Specifications
WeightAbout 15000kgs
SizeAbout 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
MaterialGalvanized or Galvalume Coils
Thickness0.8-1.2mm
Yield Strength235Mpa
Main Technical Parameters
Diameter of forming rollers shafts90mm
Roll Forming Speed10-15/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 2x11kw
Hydraulic unit motor power: 5.5kw
Electric voltageAccording to customer’s requirement



  • deck dimension quality, such as cover width , flatness.straightness and consistent emboss depth garantee the decks can erect efficiently in the field.



  • Steel Decking Roll Forming Machine
    Layout drawing of machine for reference

APPLICATION

Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.

JSR machinery factory manufacture all kinds of steel deck forming machine, or floor decking machine machine.
Operate easily , work automatically with PLC controller control.
Decoiler- forming – cut – run out

Deck Sheet Roll Forming Machine

if you need deck forming machine working speed about 20m/min, here is non stop cut type

YouTube player
