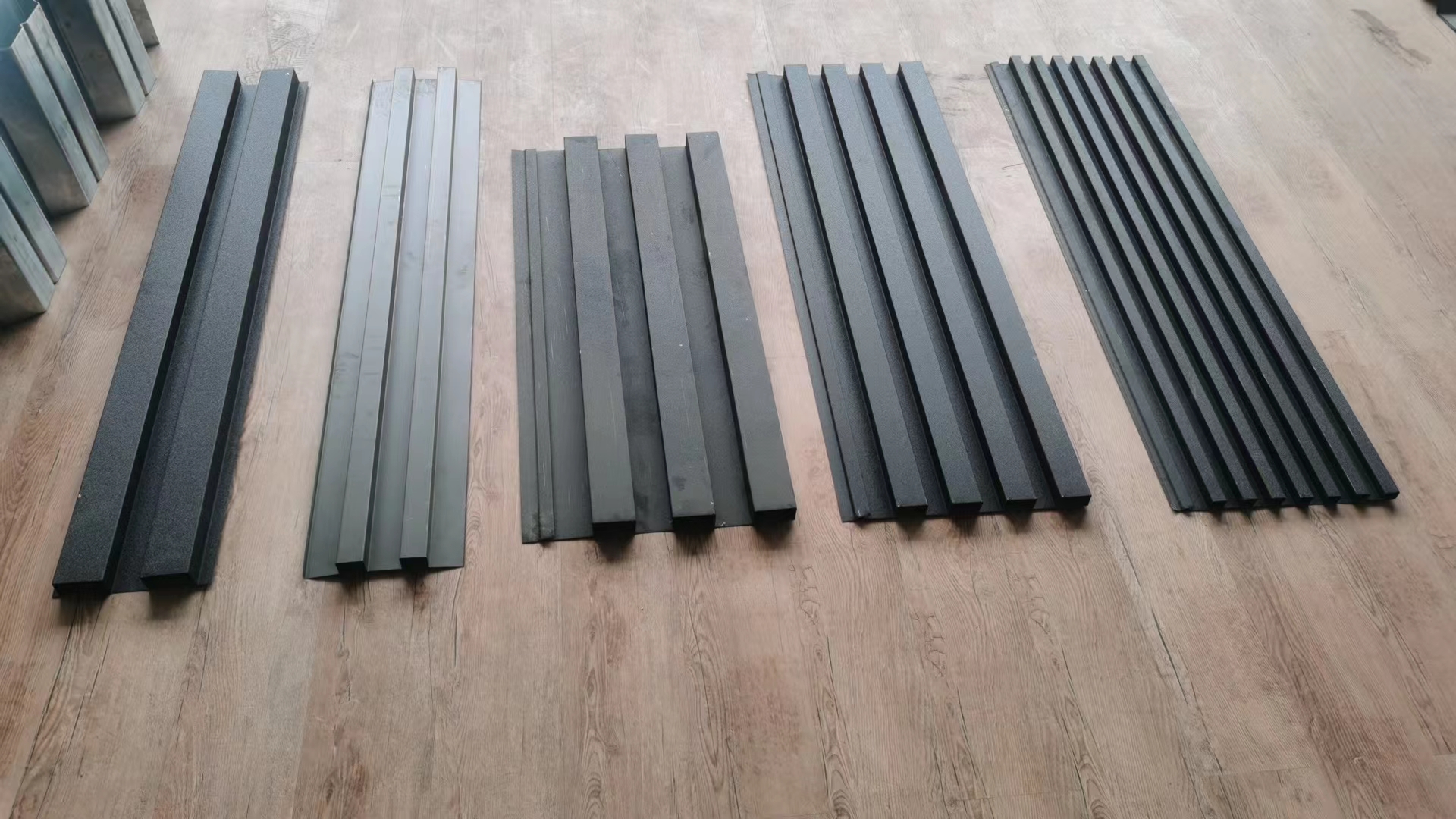

we already made many Box Rib wall panel rollform machines, many designs

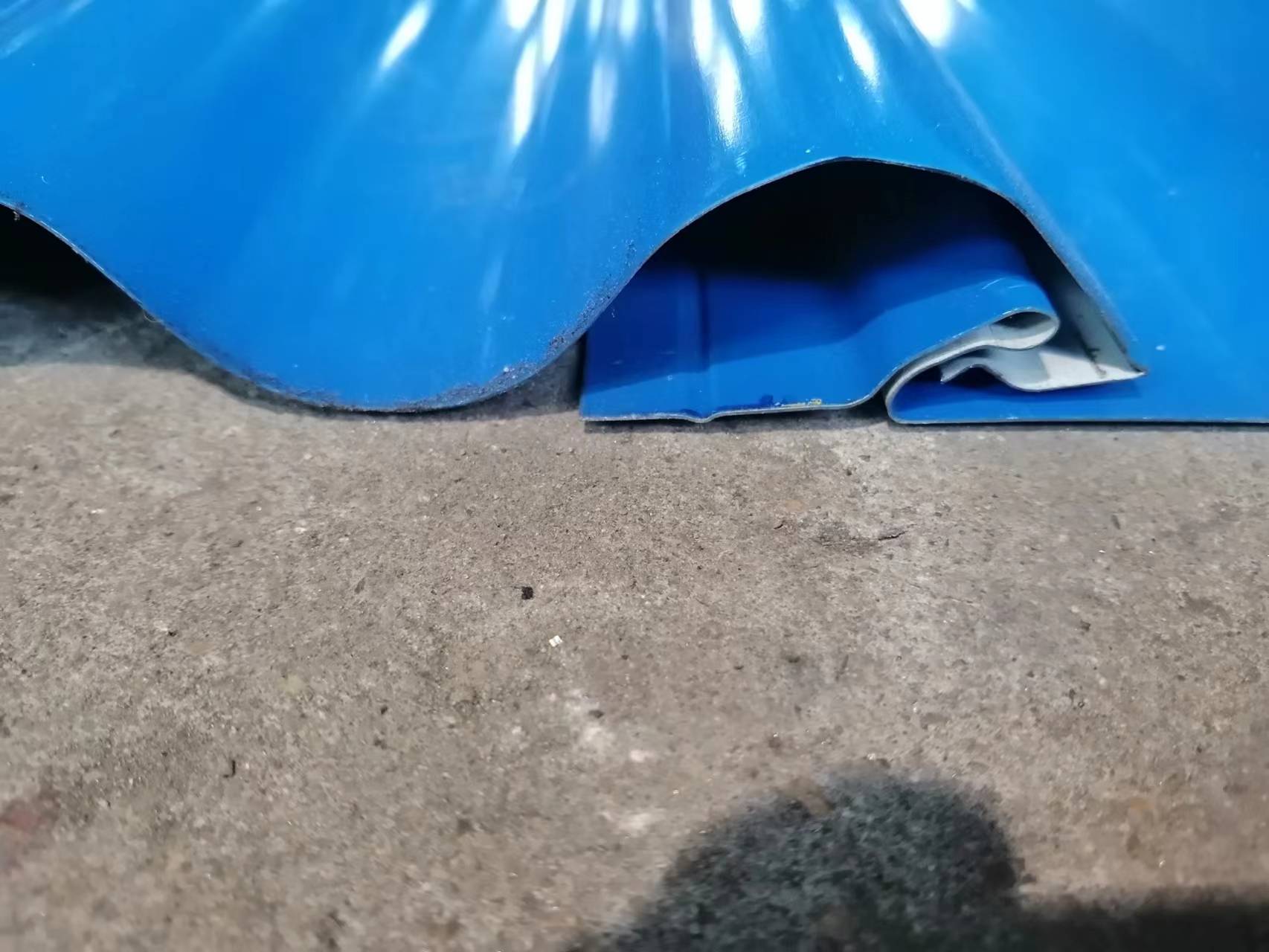

Advantages of Concealed Fastener Panels
Because concealed fasteners are hidden below the metal roof sheeting, less maintenance is required. Concealed fasteners offer improved weathertightness and a more streamlined appearance.
Metal siding is becoming increasingly popular among homeowners everywhere, and for good reason. With its strength, ability to last a long time, low maintenance, and many different style

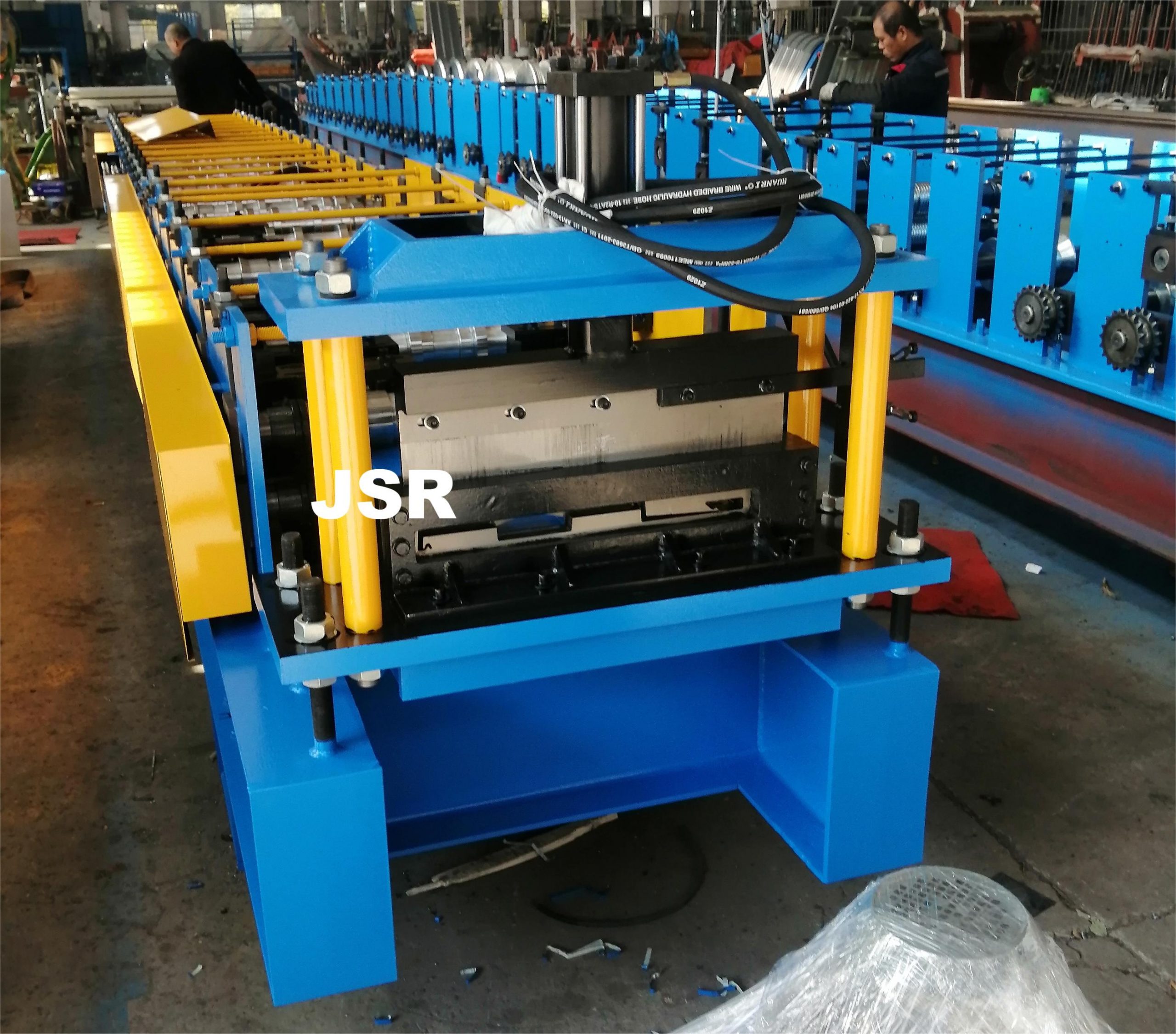

forming machine summary
mitsubishi or siemens PLC , converter and screen.
main motor power 4kw
hydraulic power3kw
about 20 roller stations.
75mm diameter solid shaft.
two Concealed fastner wall panel machine suitable for one 40 GP loading.

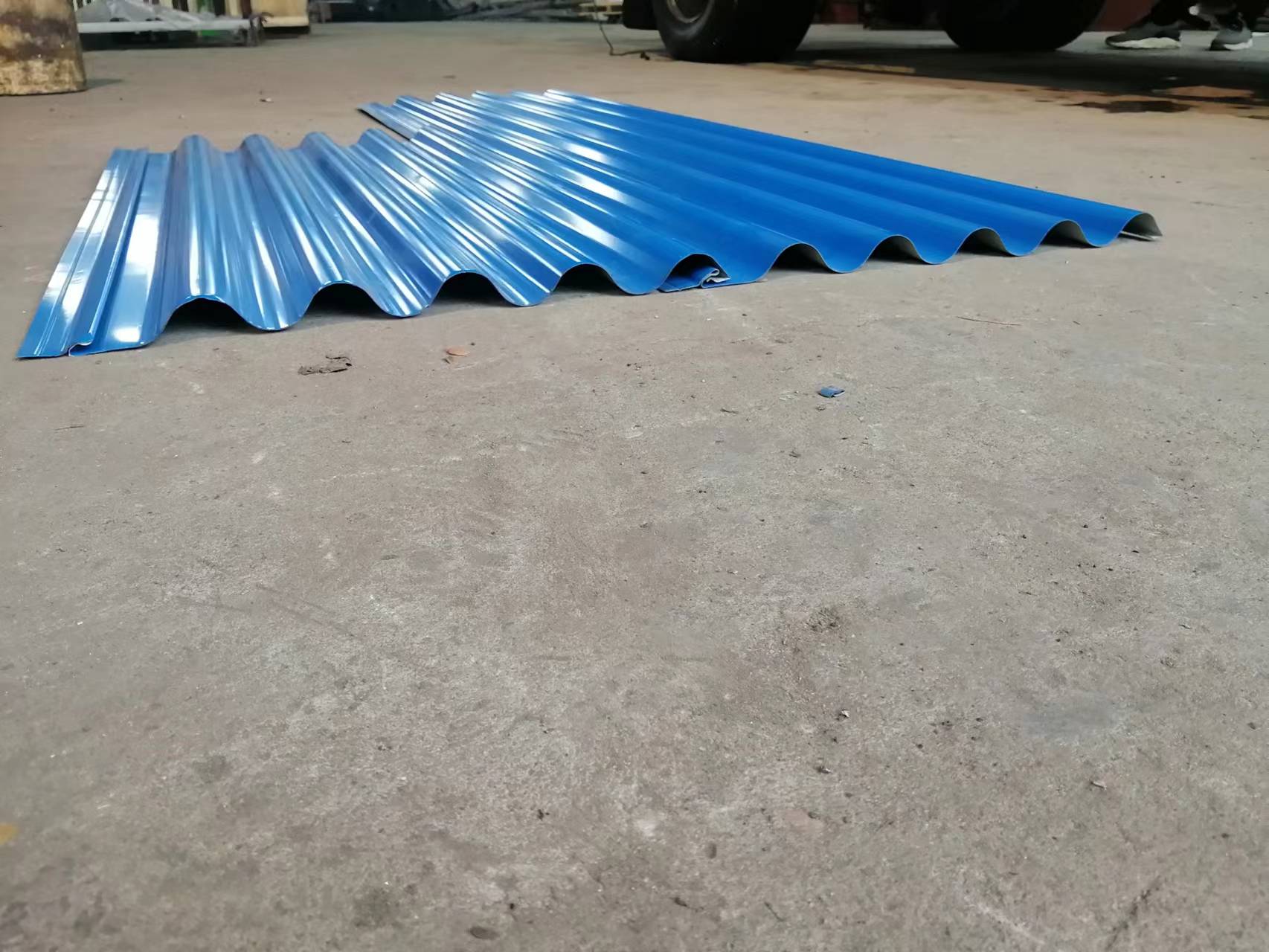

western reveal panel roll forming machine Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 10m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |

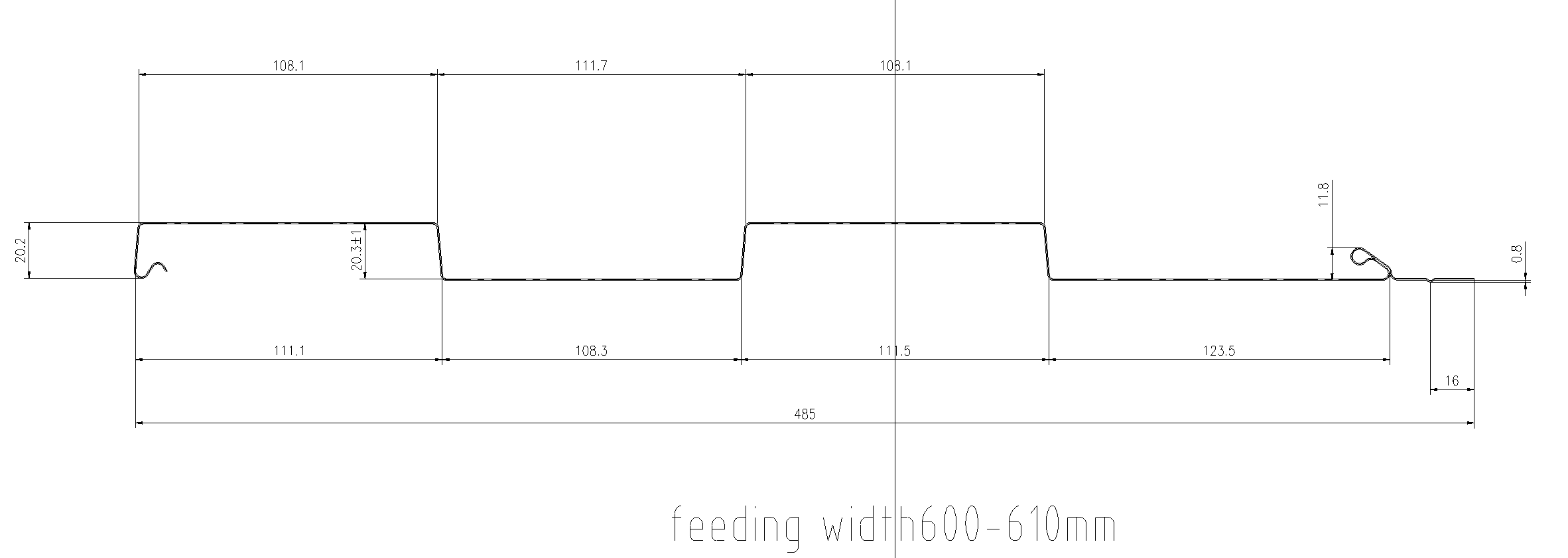

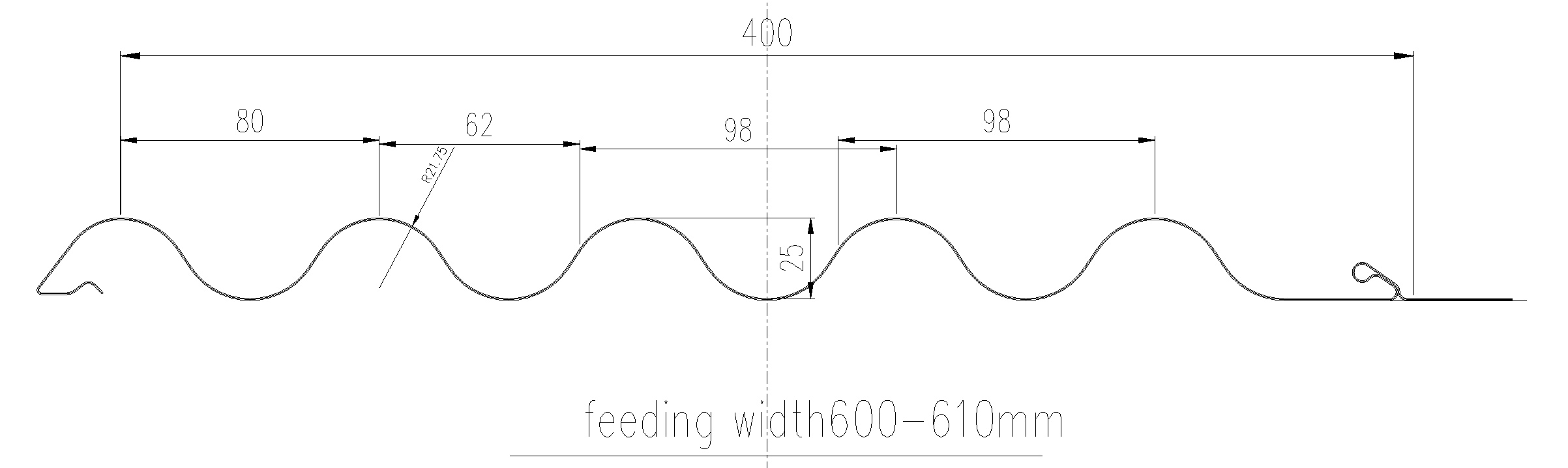

| Coil width | 600-610mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
