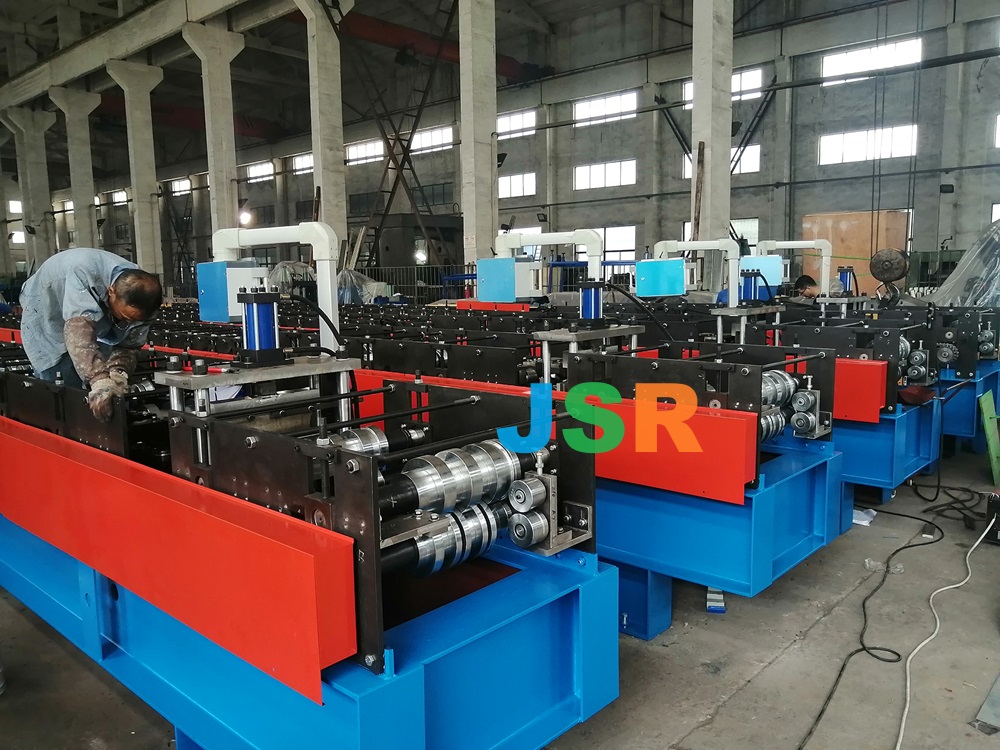

we already made many Box Rib wall panel rollform machines, many designs
The Box Rib profiles are 1-3/8” deep and a nominal 12” wide.
Box Rib panels should be installed in single-piece runs, either horizontally or vertically
forming machine summary
mitsubishi or siemens PLC , converter and screen.
main motor power 7.5kw
hydraulic power3kw
about 20 roller stations.
75mm diameter solid shaft.

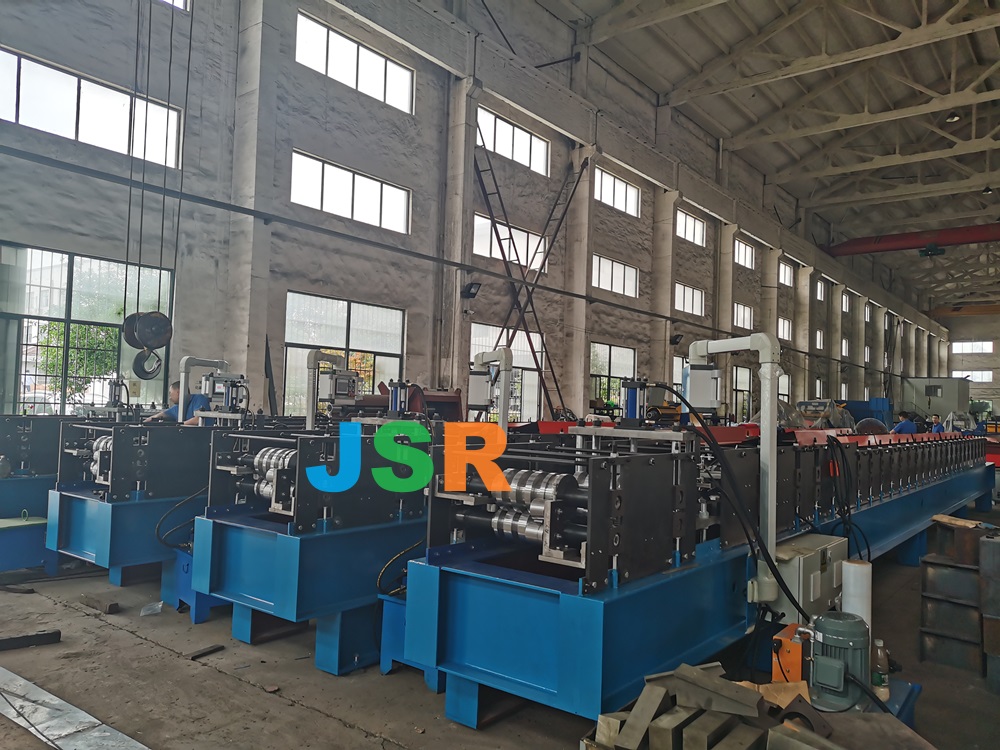

two Concealed fastner wall panel machine suitable for one 40 GP loading.
Box Rib Panel Machine Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 10m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 600-610mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
