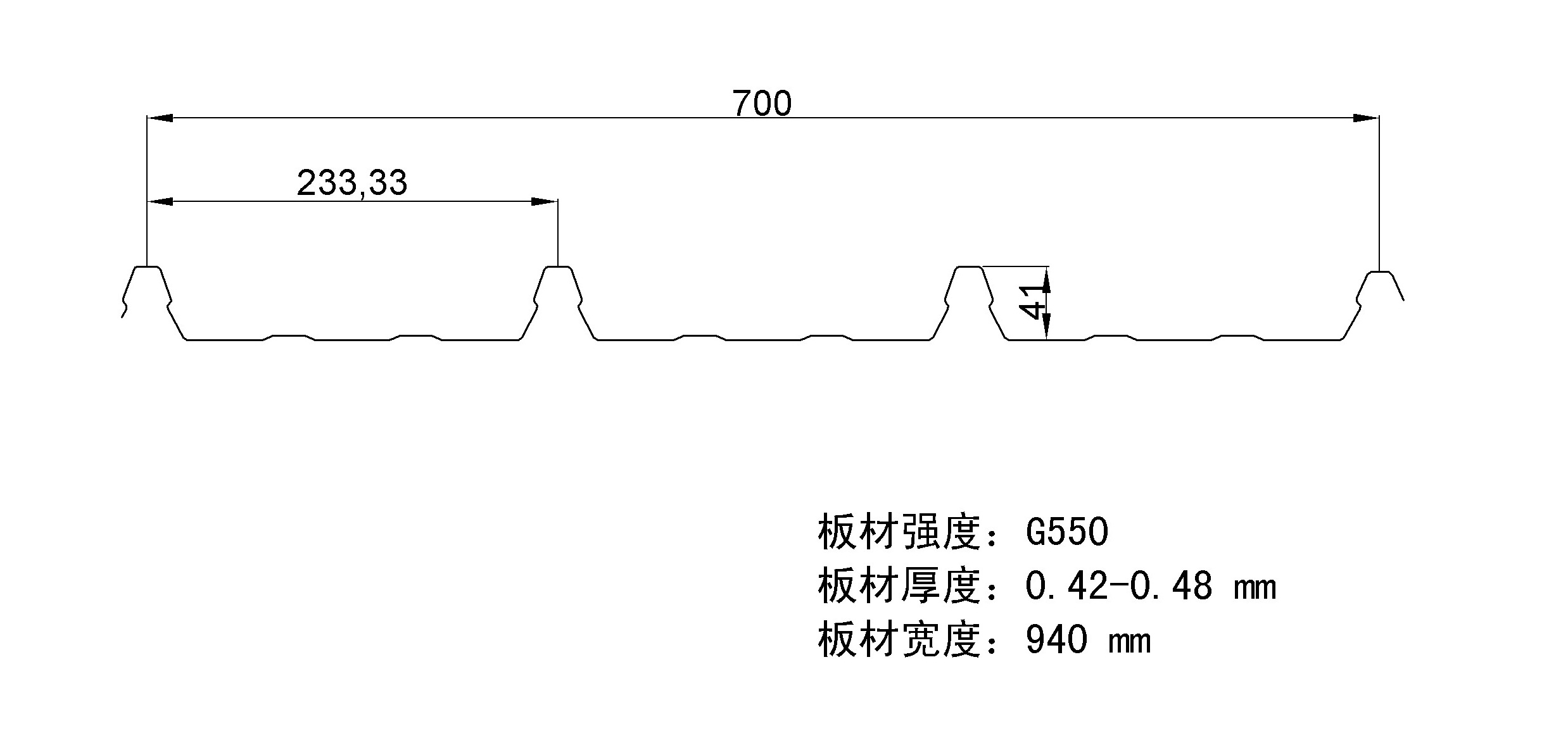

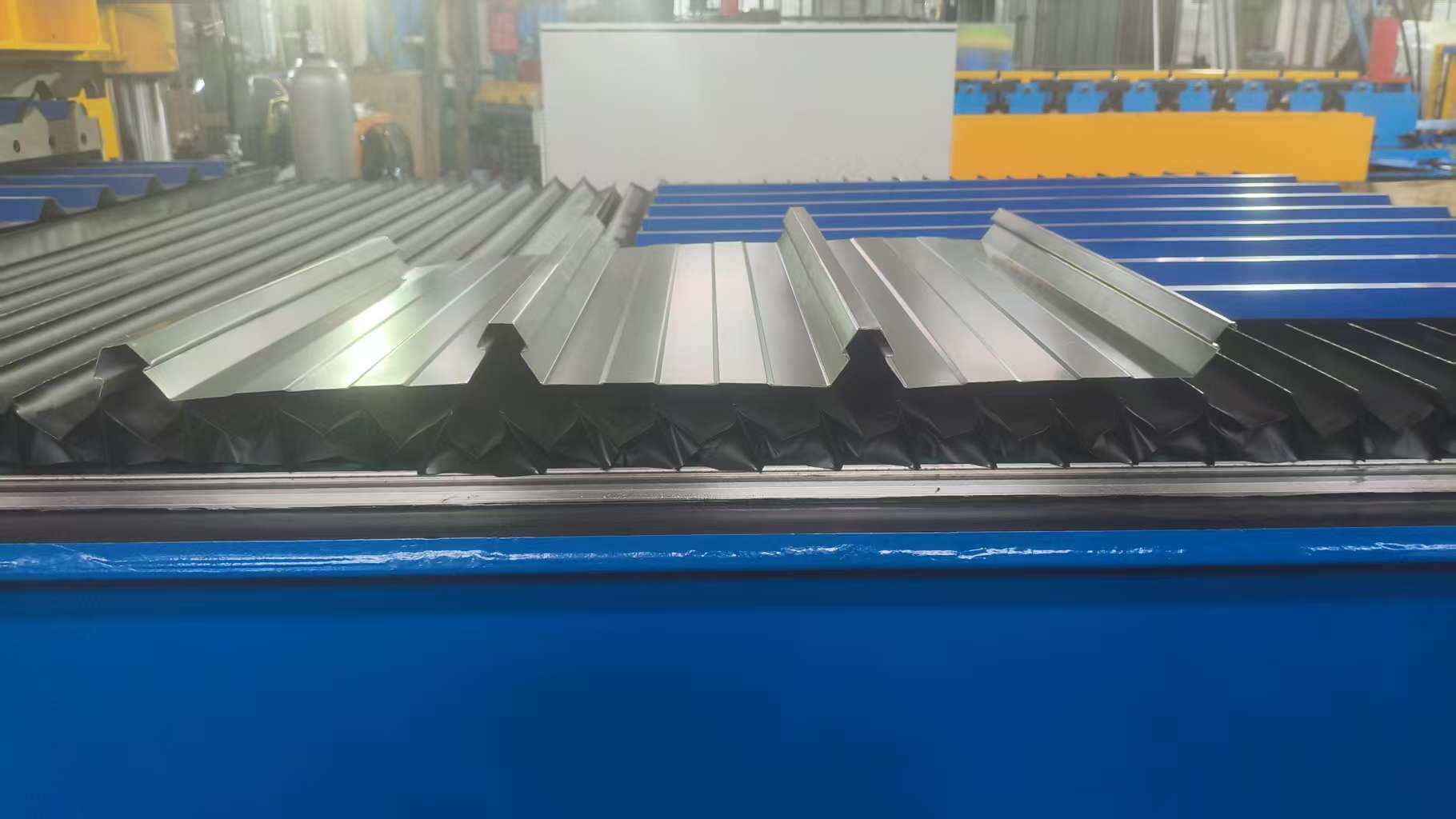

Australia Klip lok roofing Sheet Roll Forming Machine make concealed fix roofing, wide 700mm coverage and super spanning capicity
What is the steel thickness?
.42 -0.48BMT is the standard thickness of BlueScope Lysaght Steel sheets.
besides, australia popular profiles are
corrugated roofing
trimdek
spandek
Australia usually use hard material, yield strength 500mpa to increase hardness of final roofings.
hard material are easy to break during forming, because hard material is brittle.
we , JSR machinery factory have many years experience to design and manufacture such roll forming machines
gutter machines, facsia machines, c purlin machines already made to Australia.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 7500kgs |
| Size | About 14m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 960mm |
| Yield Strength | 550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | mitsubishi PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kwx2 |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

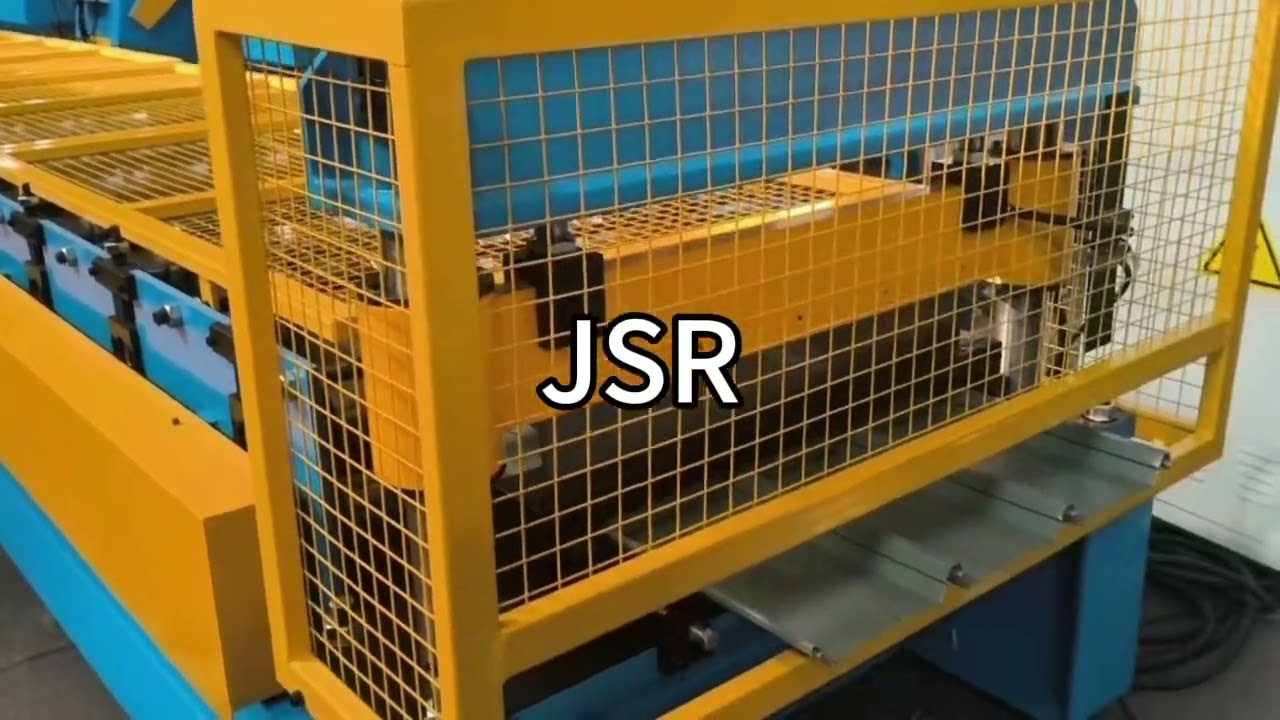

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
gutter , fascia, ridge roll forming machine working video in australia customer factory
batten roll forming machine
