R panel and U panel double layer machine popular in America

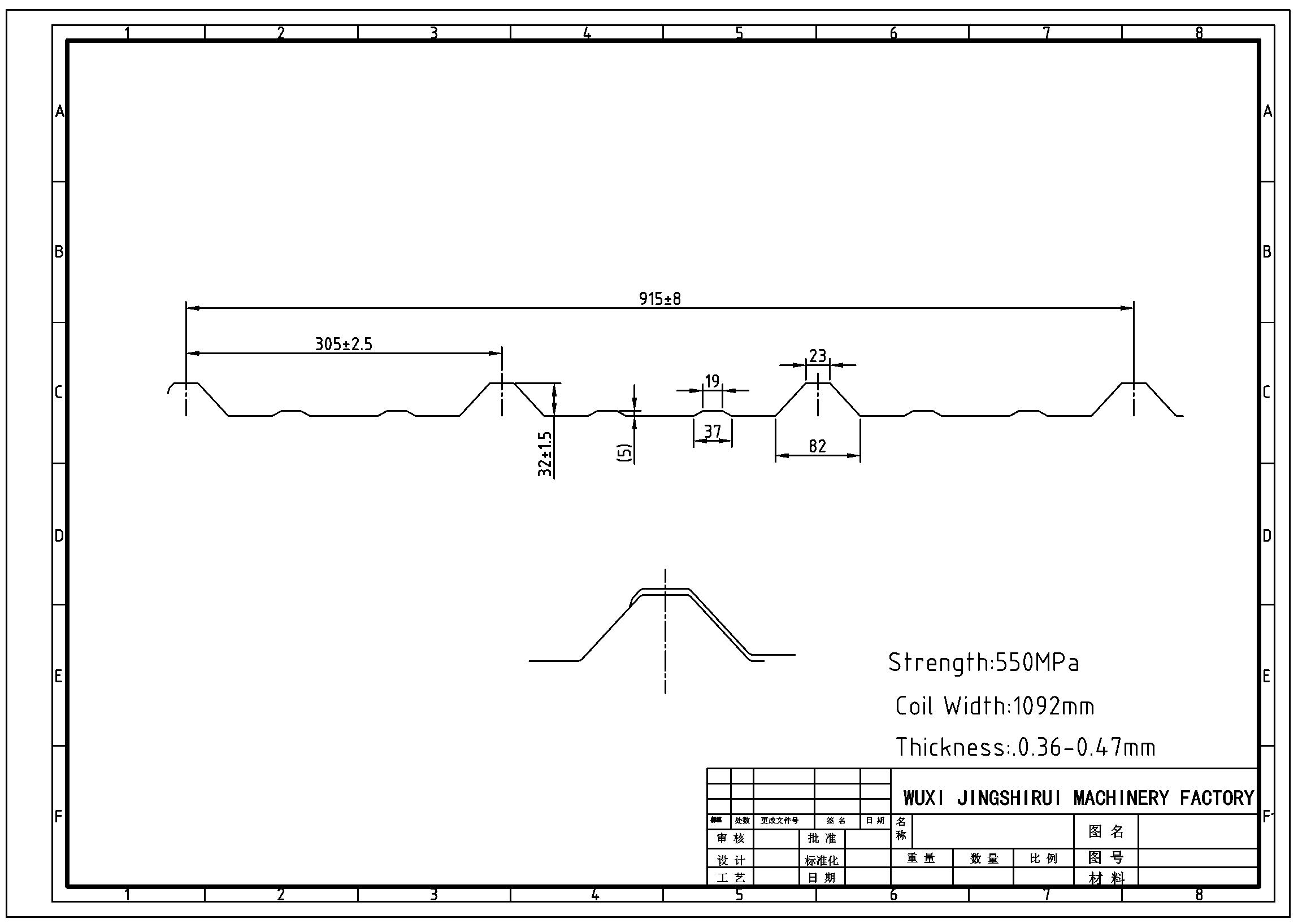

R Panel roofing is an exposed fastener metal roofing and siding panel with raised ribs with a flat area between the ribs. R-Panel is 1.25” deep, it measures 12” from each high corrugation, and provides 36” of coverage. It’s used in residential, commercial, and agricultural applications.
R panel crimping machine

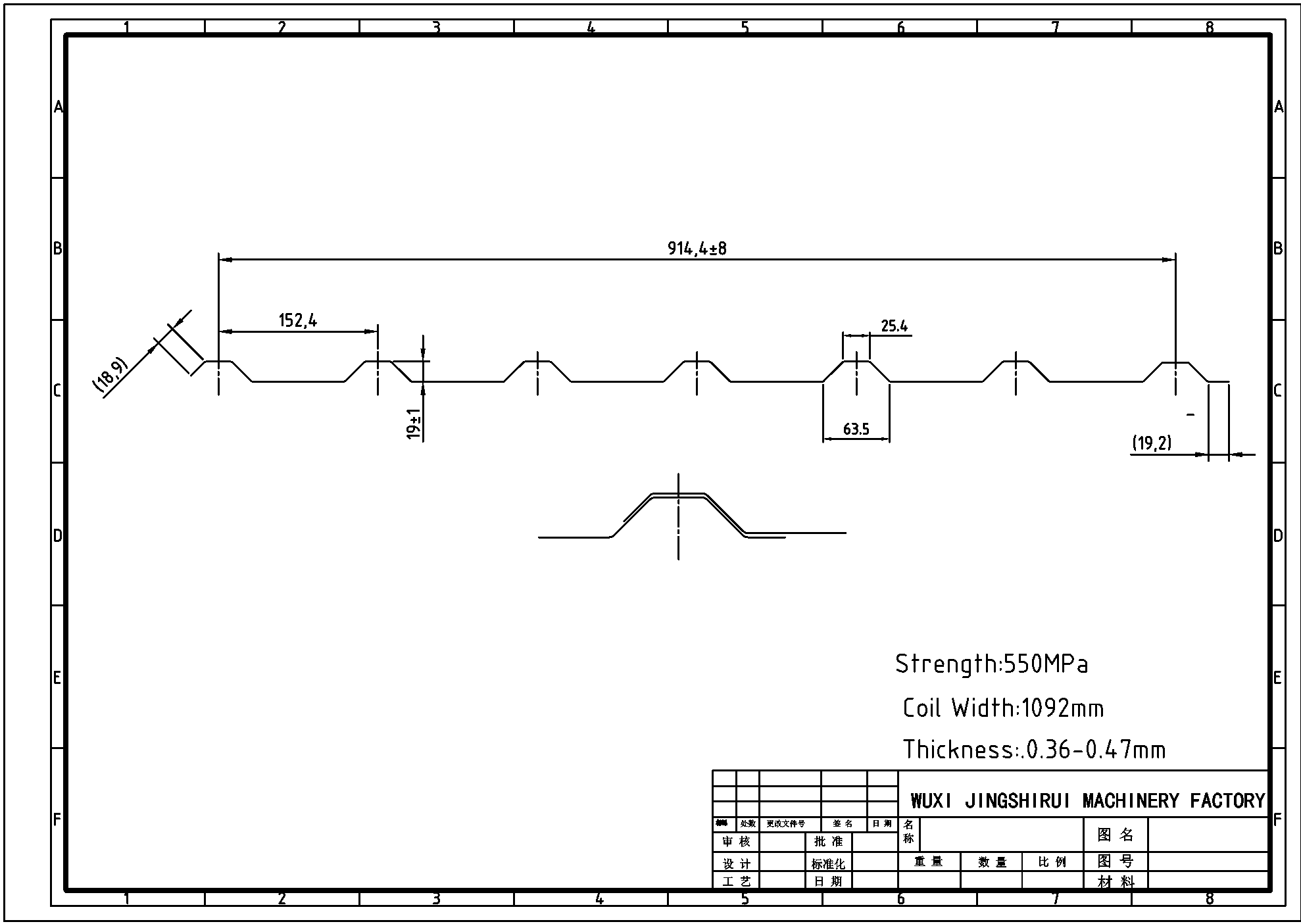

U-Panel is an exposed fastened wall and roof panel. With a ¾” (approximate) rib height and 6” on center rib spacing, U-panel offers a lower profile and softer appearance than R-Panel or Multi-Rib. U-Panel is widely utilized as a liner panel or partition wall.

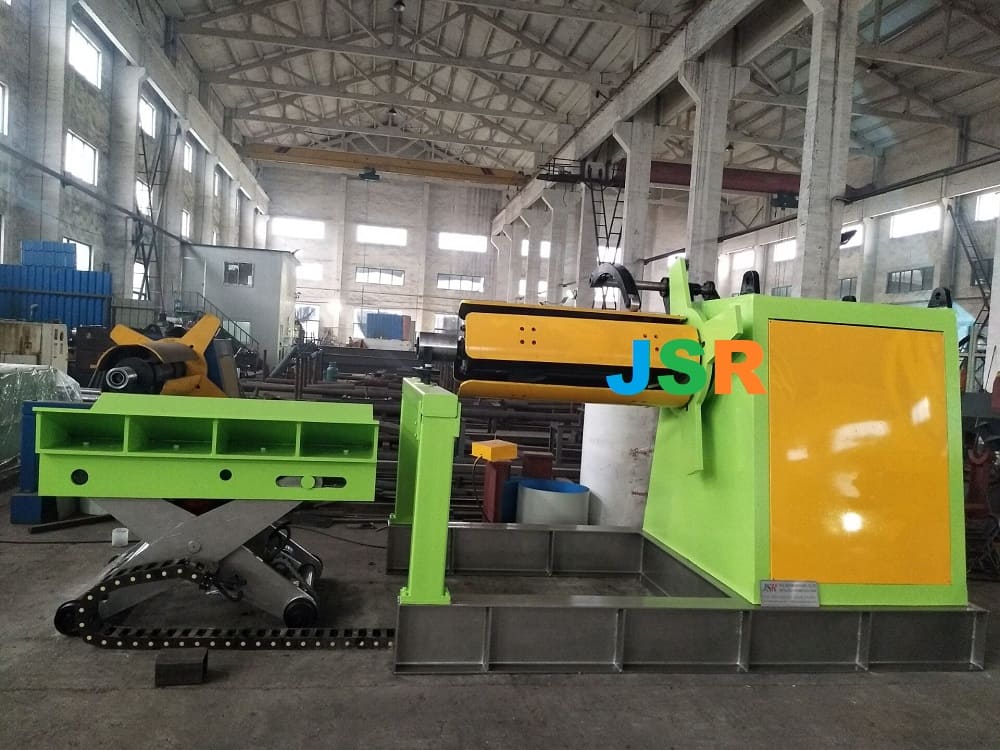

this roll former with 10 ton hydraulic decoiler and loading car. adopt electric cut. normally hydraulic cut.
JSR also make full automatical roofing sheet roll forming machine
R panel roofing sheet roll forming machine, single layer roll forming machine
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 15000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| electric cut power: 2.2kw | |
| Electric voltage | According to customer’s requirement |
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
