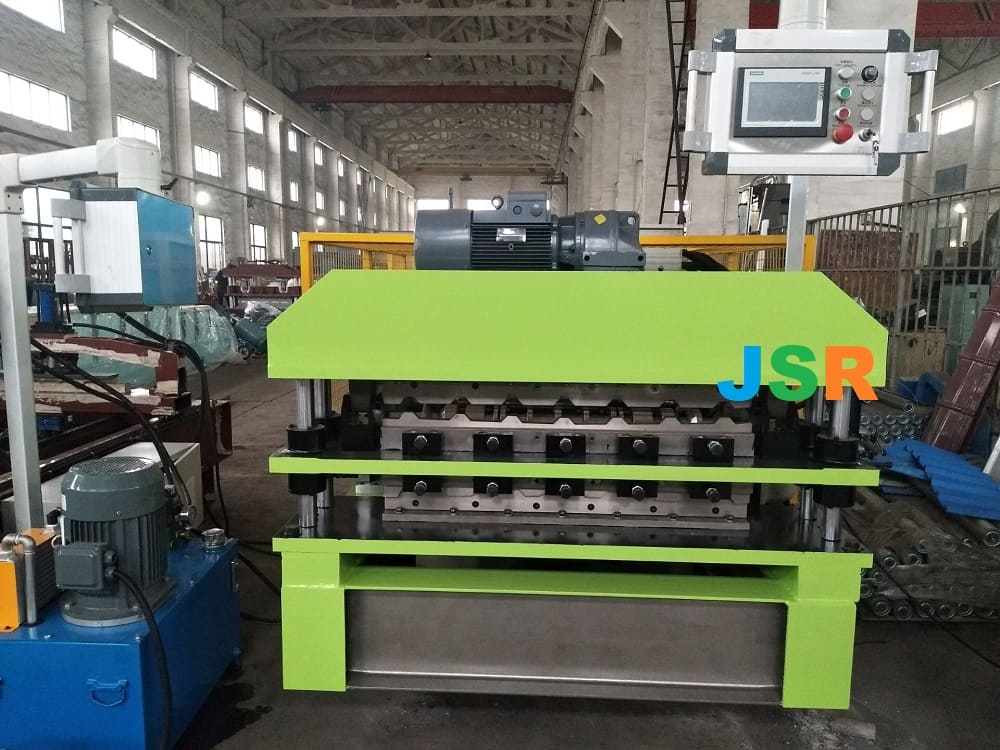

The double layer machine make 7/8 inch corrugated panel and R panel roofings.

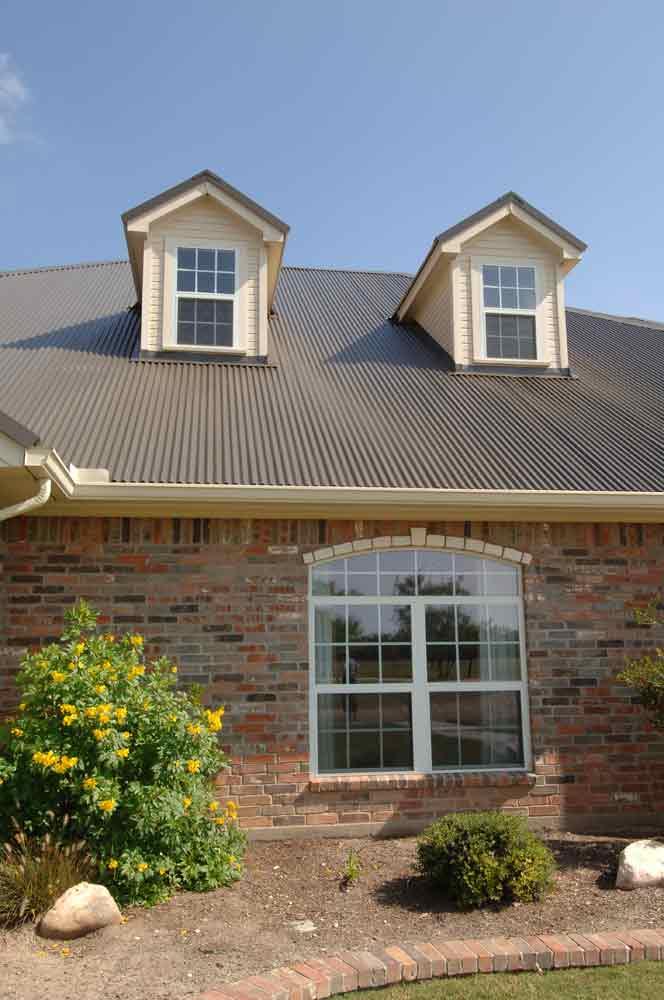

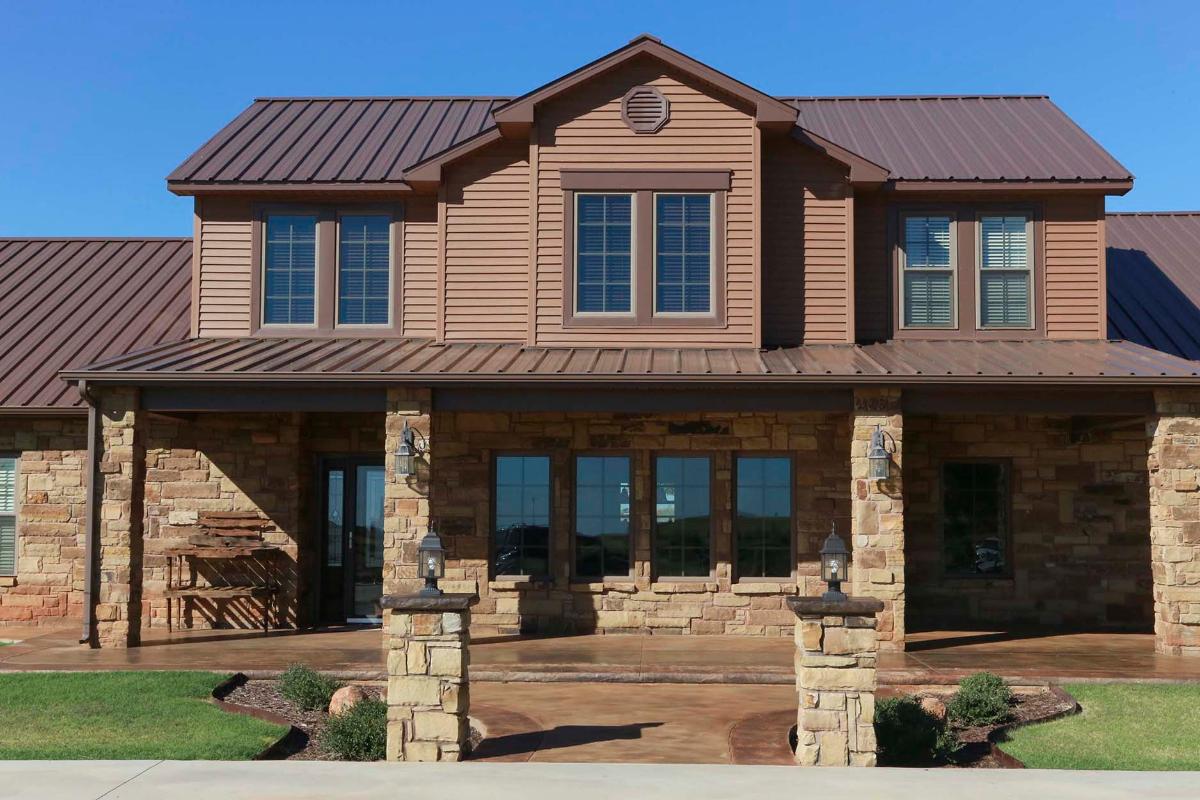

corrugated panel and R panel is popular in America

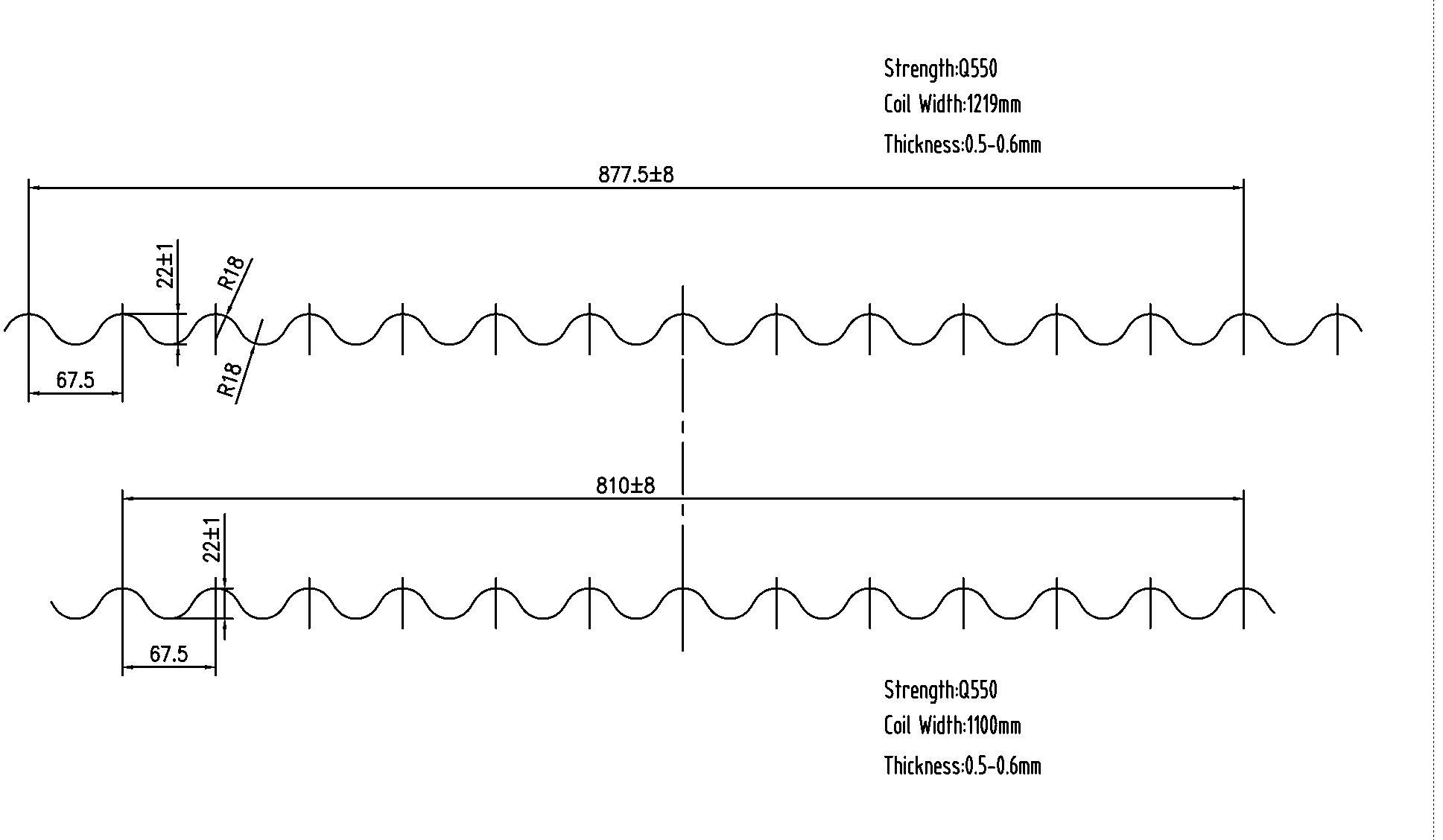

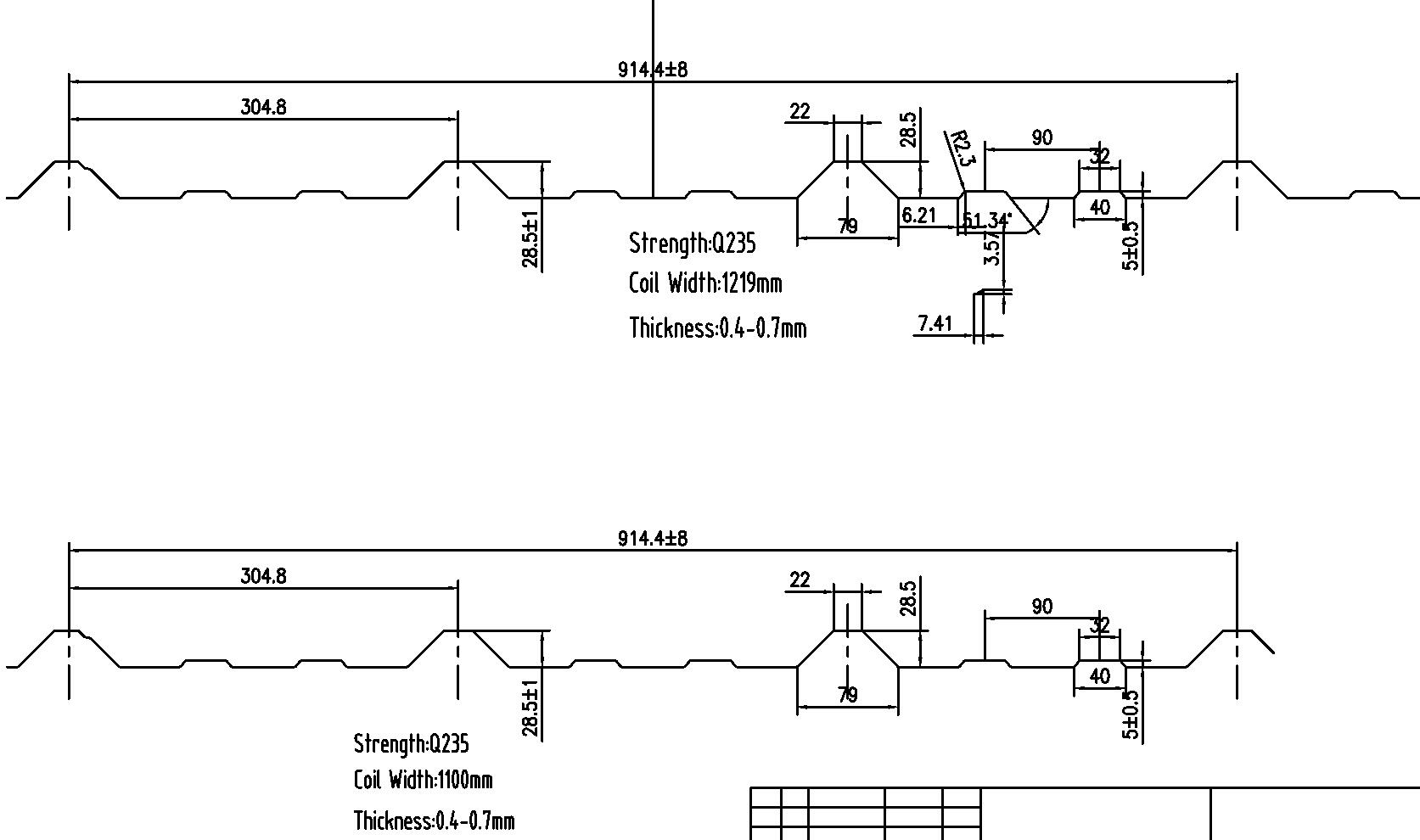

we can use 1219mm/48 inch and 1100mm /43inch width raw material to make two width corrugated panel and two width r panel.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 15000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1220mm |
| Yield Strength | 550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| hydraulic cut power: 3kw | |
| Electric voltage | According to customer’s requirement |
