hydraulic decoiler will easy to load coils, compared to manual decoiler.
this hydraulic decoiler capicity 10 ton, with loading car,
hydraulic power to expand and shrink the core.
main motor to release coils

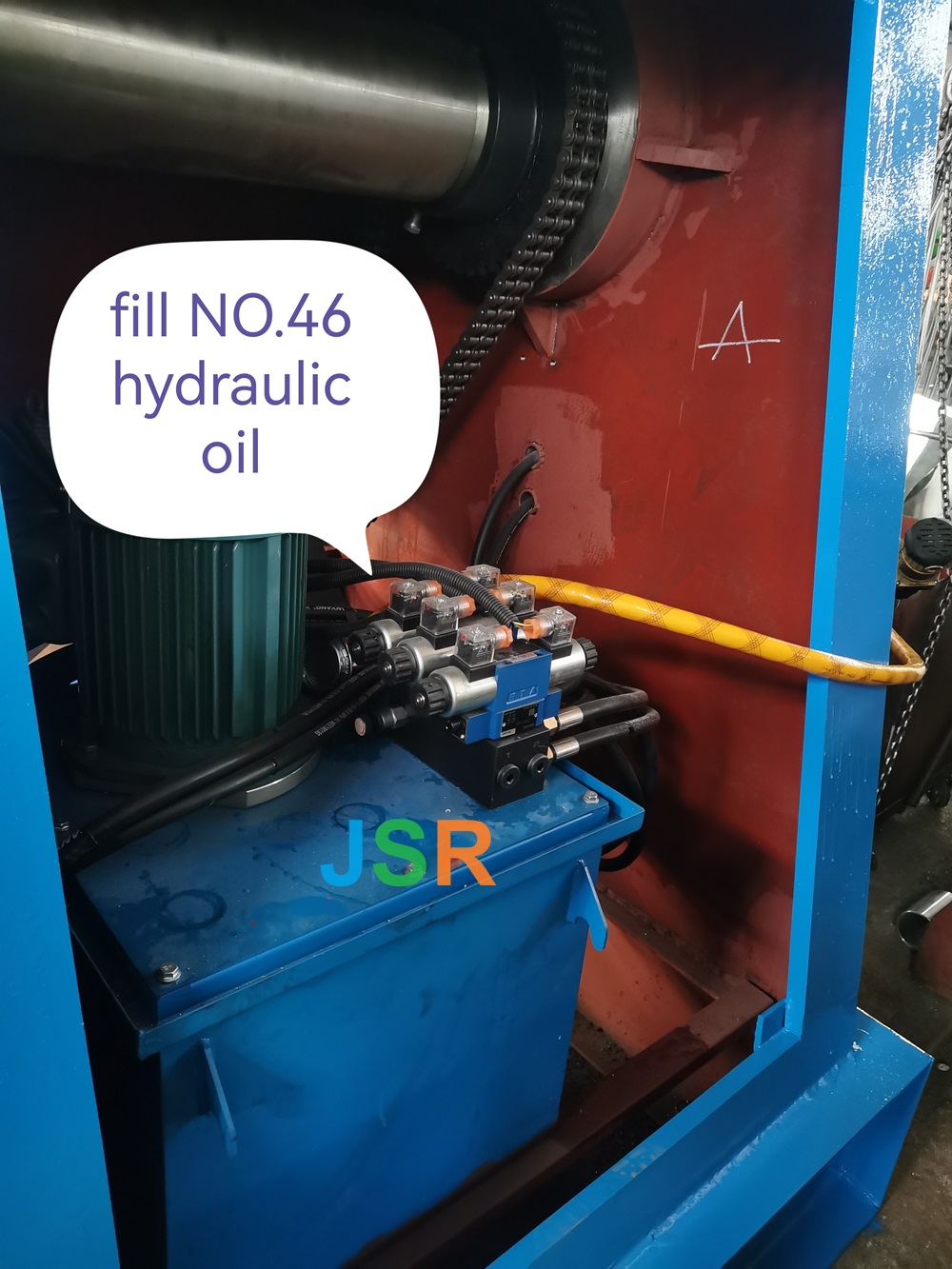

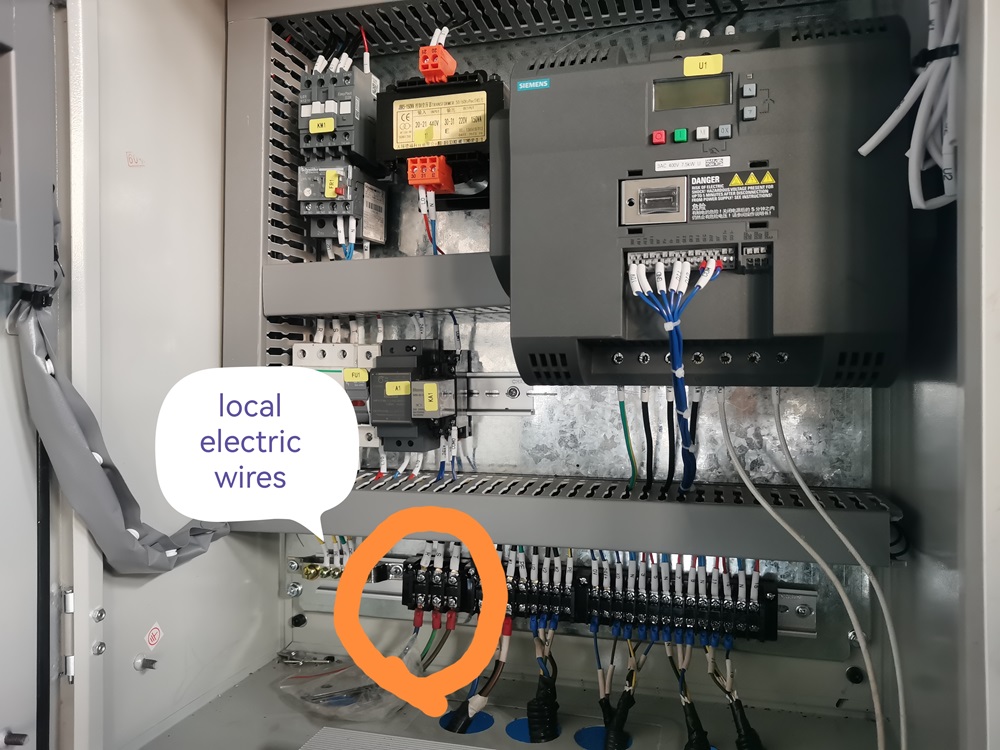

we only connect local electric wires and add hydraulic oil to start work

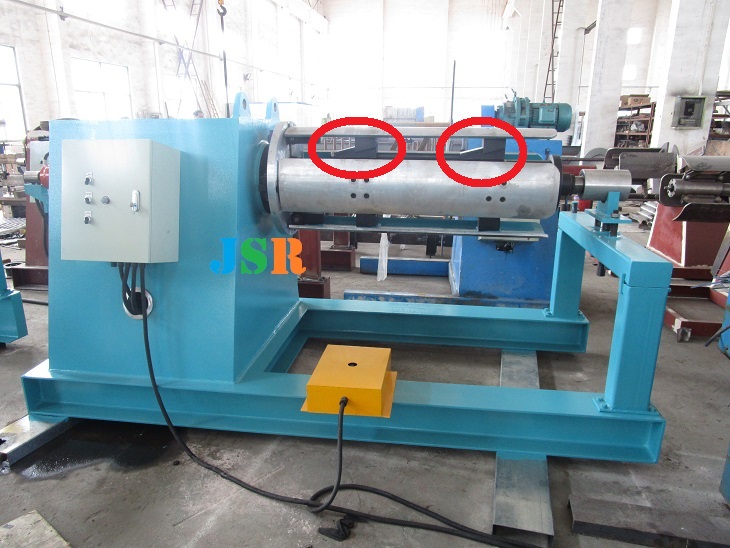

Here is 10 ton hydraulic decoiler with loading car
Max loading capacity 10T
Suitable coil ID φ410-550mm
Suitable material width (max.) 1250mm
Suitable coil OD (max.) φ1300mm
Motor power 5.5Kw
Hydraulic station 5.5kw
Electric condition 415V/3Phase/ 50HZ (please confirm with us )
Decoiling type motor driving
Expand and shrink hydraulic
Speed control infrared sensor
Size(length x width x height ) about 3.5x2x2m
while 5 ton capicity or hydraulic decoiler without loading car are also available
advantage of our hydraulic decoiler
expand bar design is very strong
