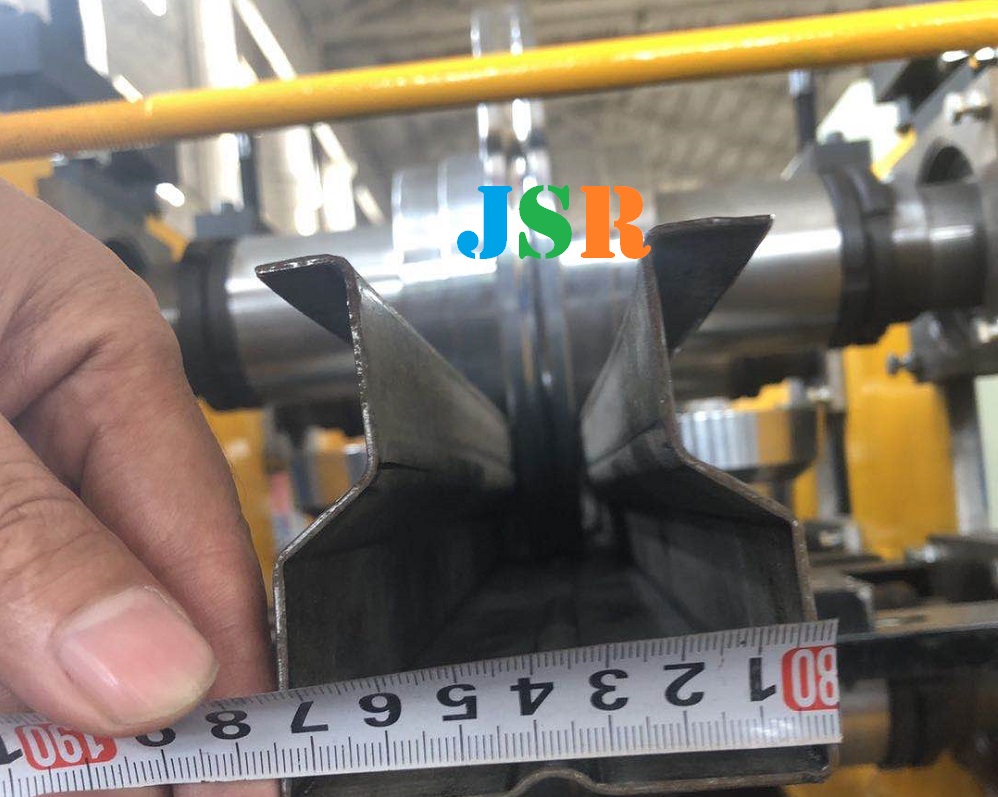

storage Rack shaft machine to Mexico

Suiting raw material for this rack roll former

1 ) Coil Width: 254mm

2 ) Suitable Coil Thickness: 2 mm

3 ) Suitable Raw Materials: galvanized steel sheet

4) Yield strength of raw material: 235-345Mpa

Main parameters of storage rack roll forming machine

1) Forming Speed:                      Max. About 20m/min. (excluding the cutting time)

2) Main Motor Power:                7.5kw(Depend on final design)

3) Rollers’ material                   GR15 steel with quench treatment

4) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

5) Electric Condition:                440V/3Phase/60HZ(or depend on customer)

6) Total Weight:                       About 7500 Kg

Main components of this shelf roll forming machine

(1) Manual decoiler                              1 set（Capacity : 3tons）

(2) Roll-Forming M/C                          1 set

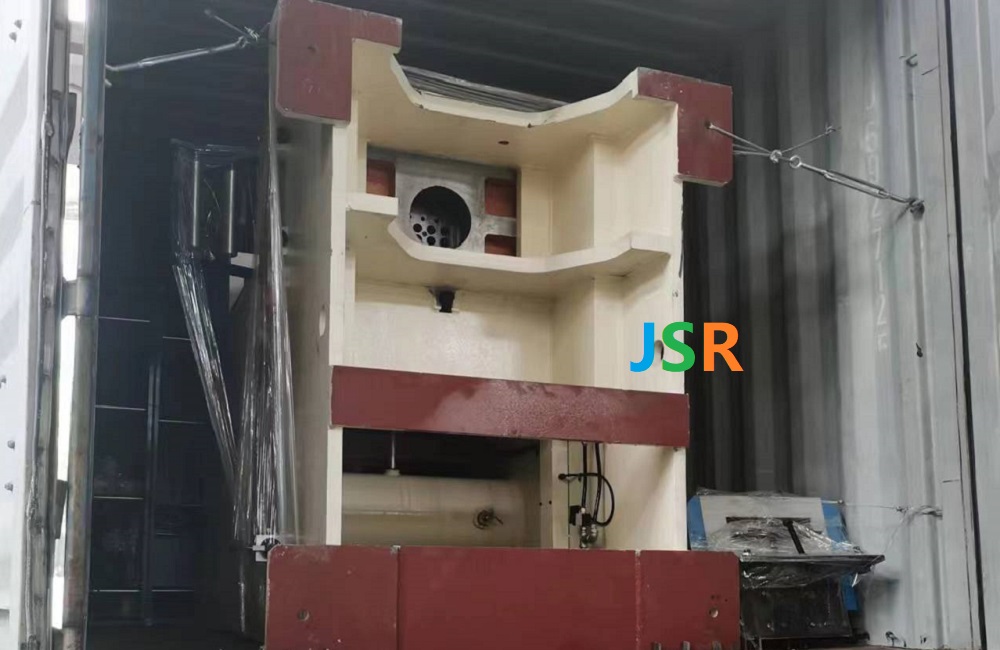

punch machine 215 ton

siemens PLC and touch screen

yaskawa converter

Hydraulic Cutting

1)  Adopts post cutting, Stop to cut;

2)  The cutting blade material is Cr12 with quenched treatment.

2)  Adopts welded frame for good rigidity.

4)  Cutting frame has been heat treatment to avoid final product deformation. Cutting length tolerance is ±1.5mm.

5)  The power of cutting is provided by hydraulic station.

6)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.  When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.
