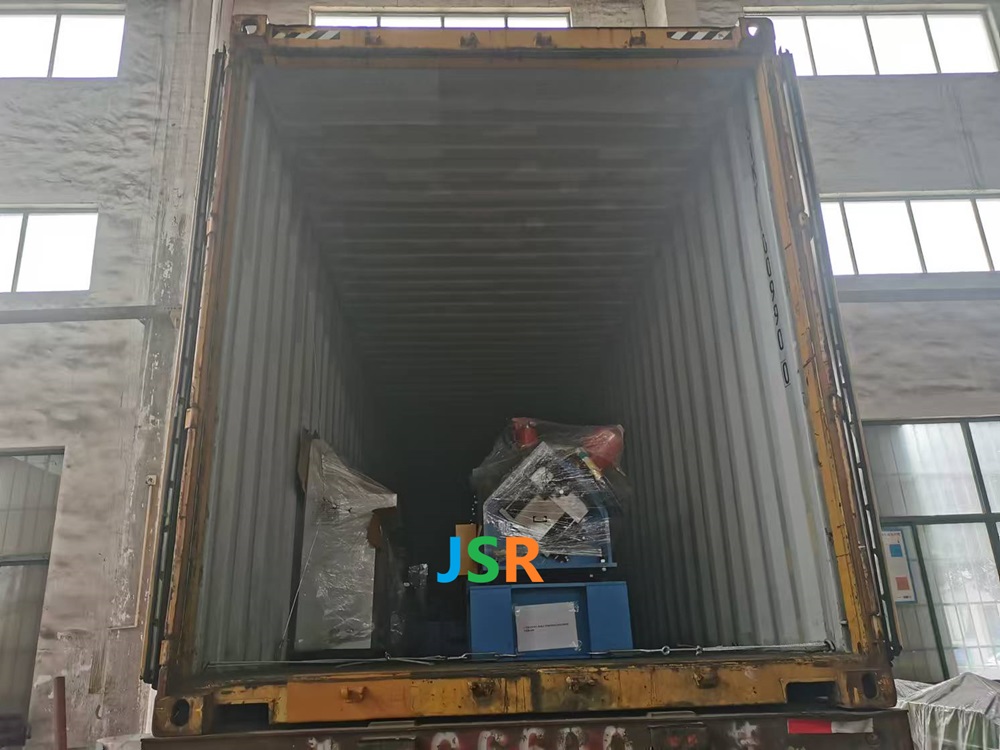

Steel C channel Forming Machine load in one 40 GP conatiner to India Dec.23,2024

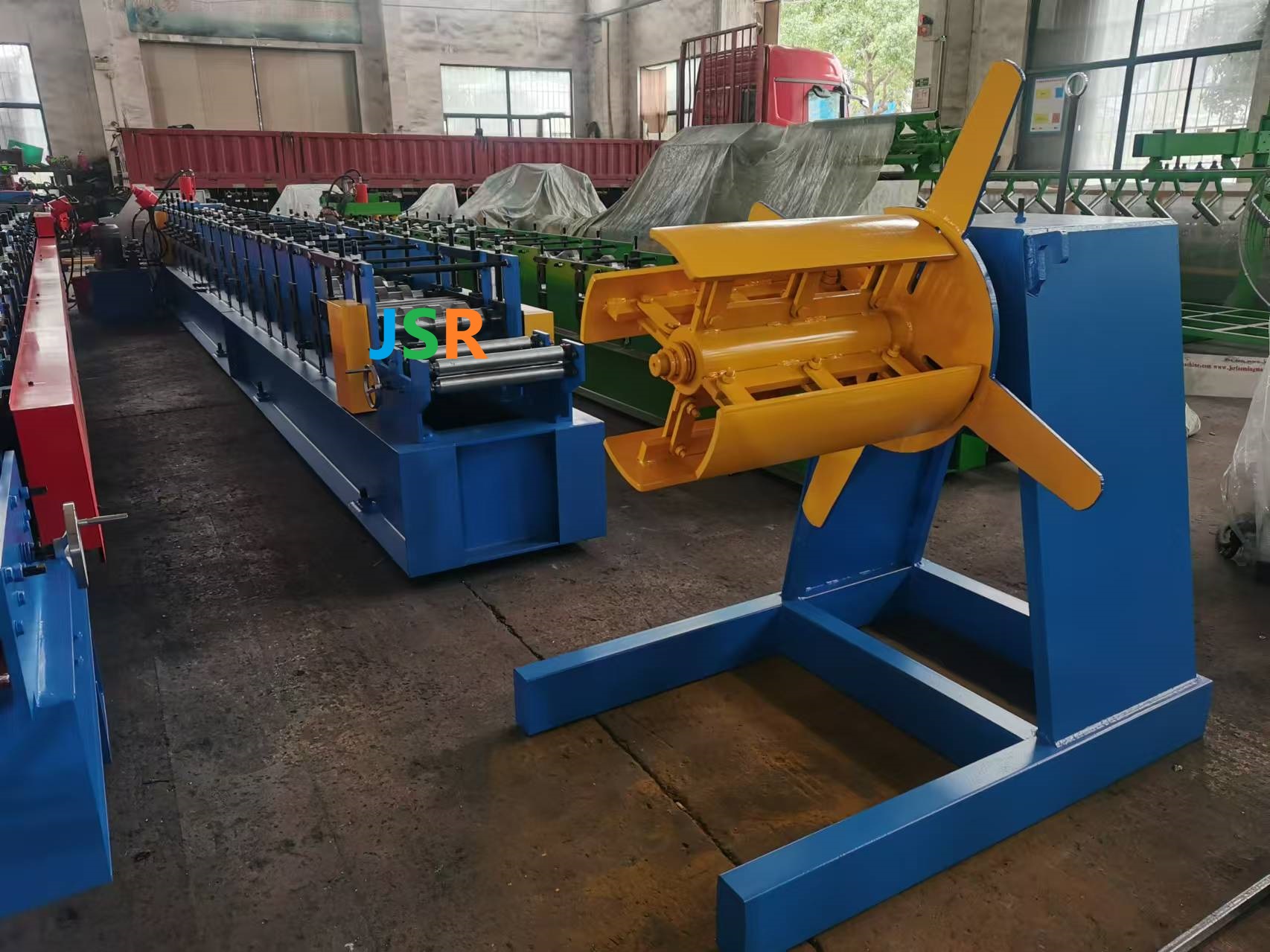

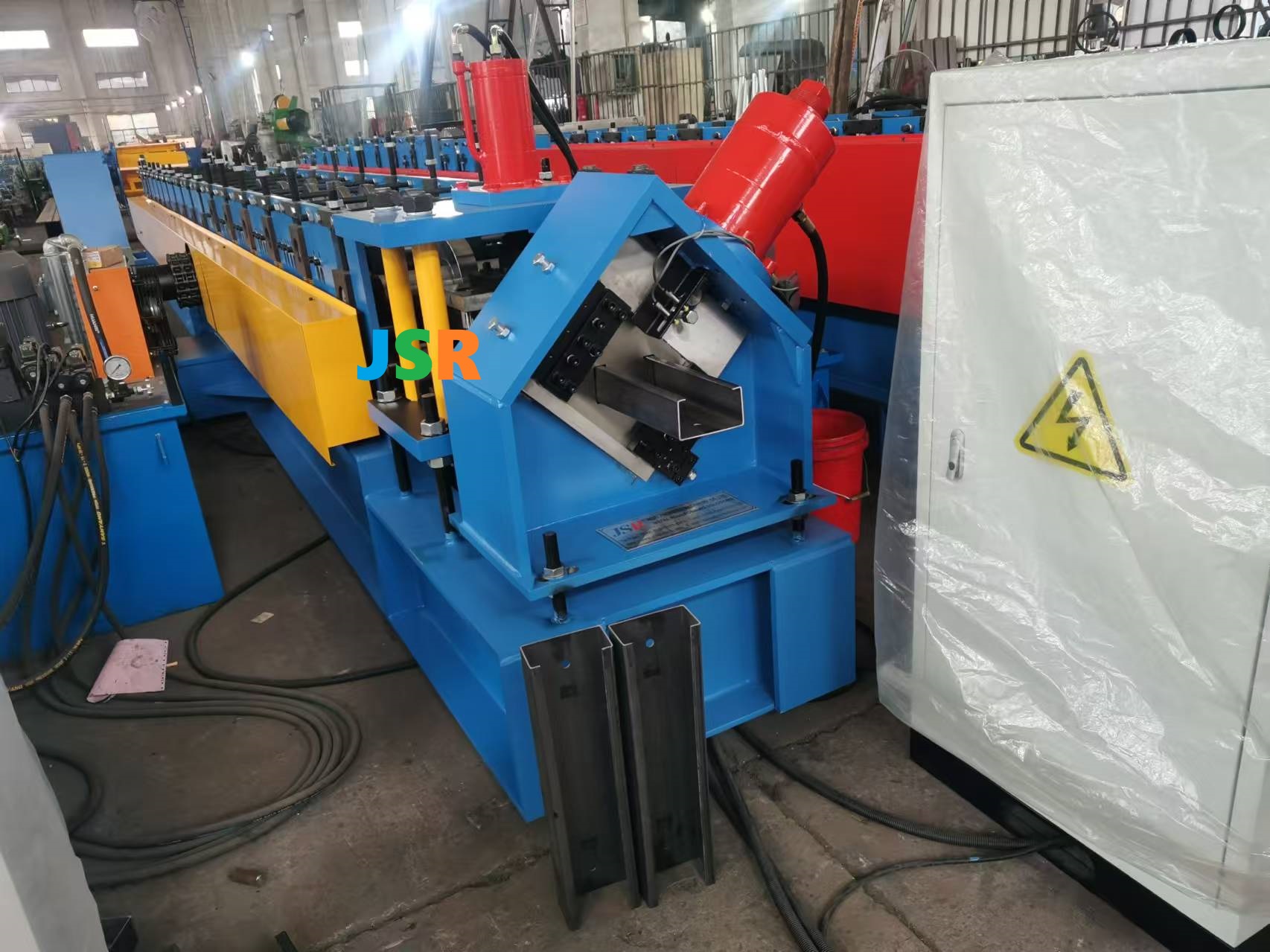

This c channel machine made for india customer, he want machine to make many sizes, raw material thickness up to 3mm, punch holes
according to his requirement, machine is designed and manufactured by 15kw main motor,hydraulic motor 5.5kw
about 14 roll station, solid shaft diameter 80mm. roller material GCR15
how to change size , by adjust spacer between rollers and cut blade manually .
machine is well install and tested before delivery, you only connect some wire and tube according to video
if you have large production requirement for fixed size, we suggest you this machines.
if you want to make different sizes of purlins, we suggest you this purlin machines:
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 7500kgs |
| Size | About 10m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 3.4mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 14 |
| Diameter of forming rollers shafts | 90mm |
| Roll Forming Speed | About 10 m/min |
| Forming rollers material | GR15 with quench treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about15kw |
| Hydraulic unit motor power: about 5.5kw | |
| Electric voltage | According to customer’s requirement |
