Shutter Door Forming Machines to India

Facebook
Twitter
LinkedIn

Description

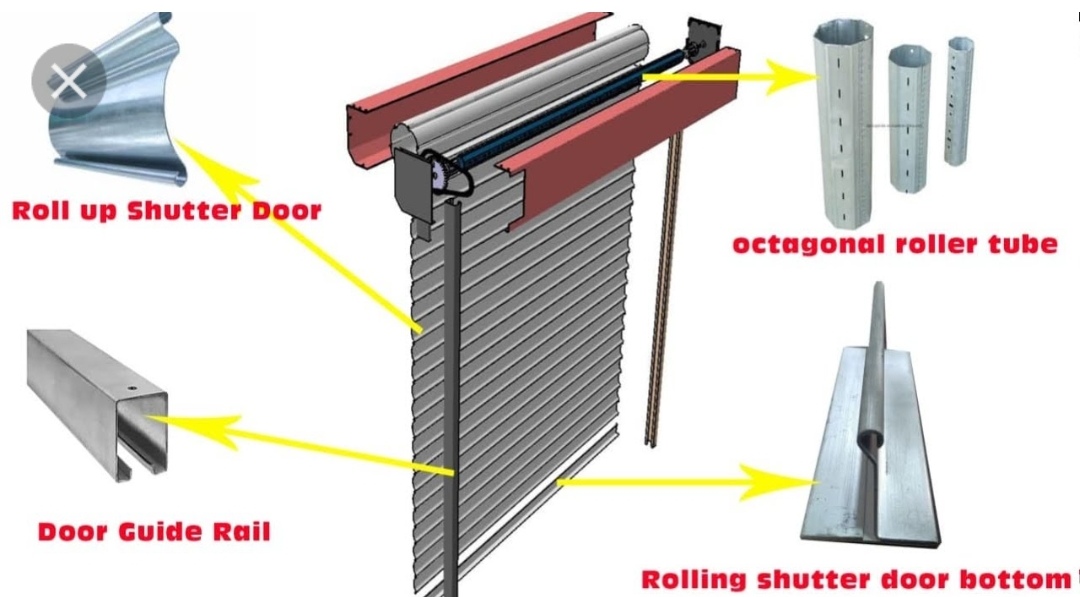

roller shutter doors usually consist of  roll up shutter door,  door guide rail, rolling shutter door bottom, octagonal roller tube.

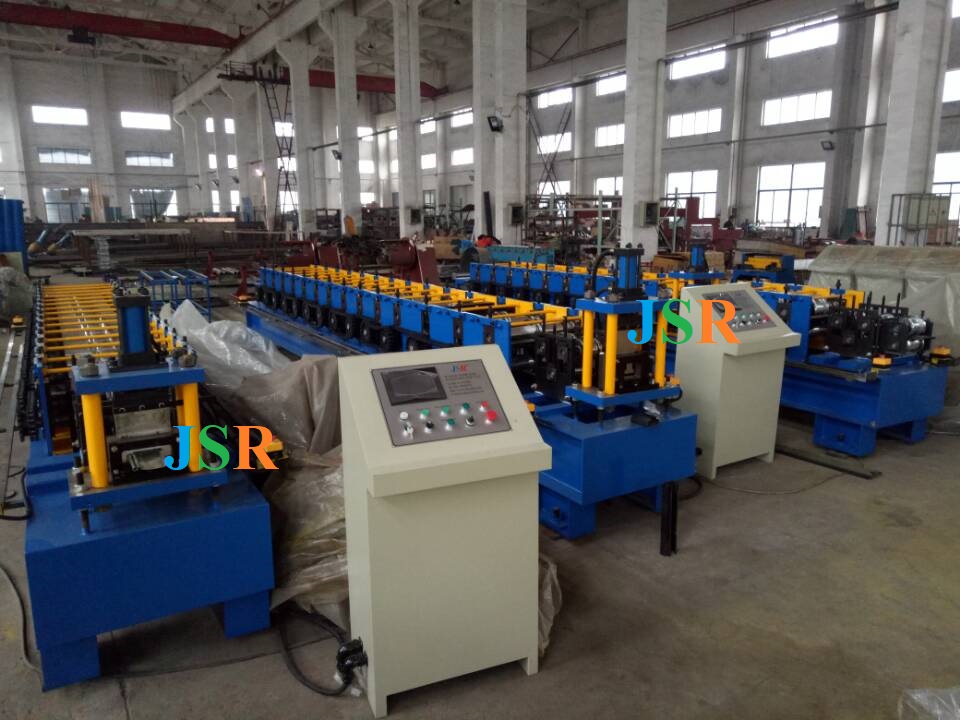

Our European customer buy three roll forming machine,

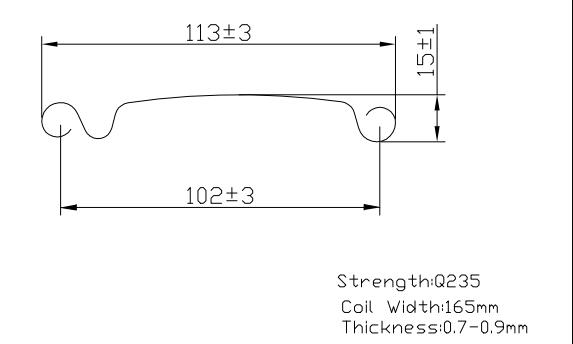

  1. one roll forming machine for roll up shutter door,

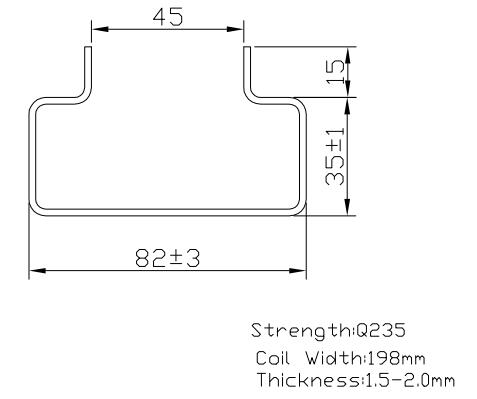

  2. one roll forming machine for door guide rail,

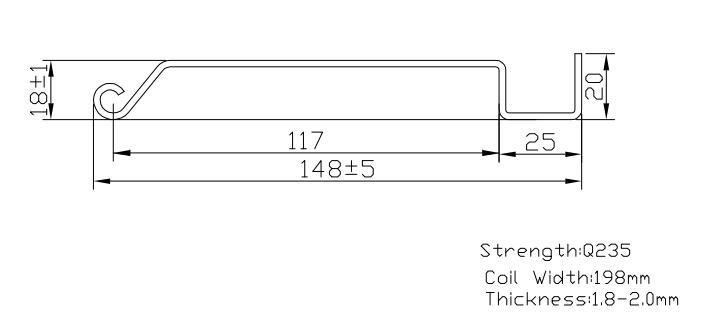

  3. one roll former for rolling shutter door bottom

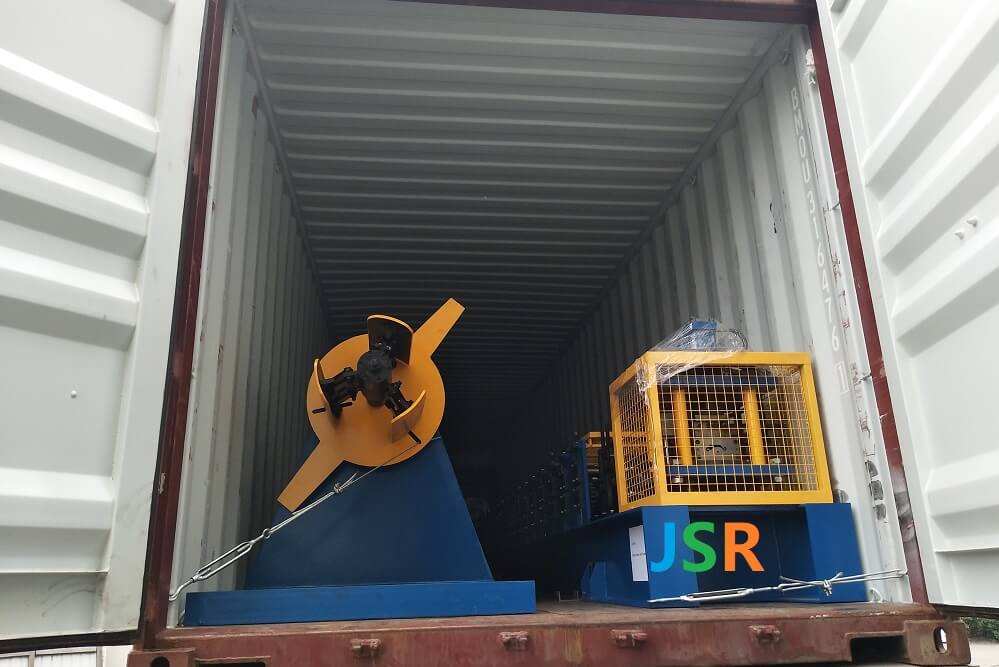

our india customer buy two machine,

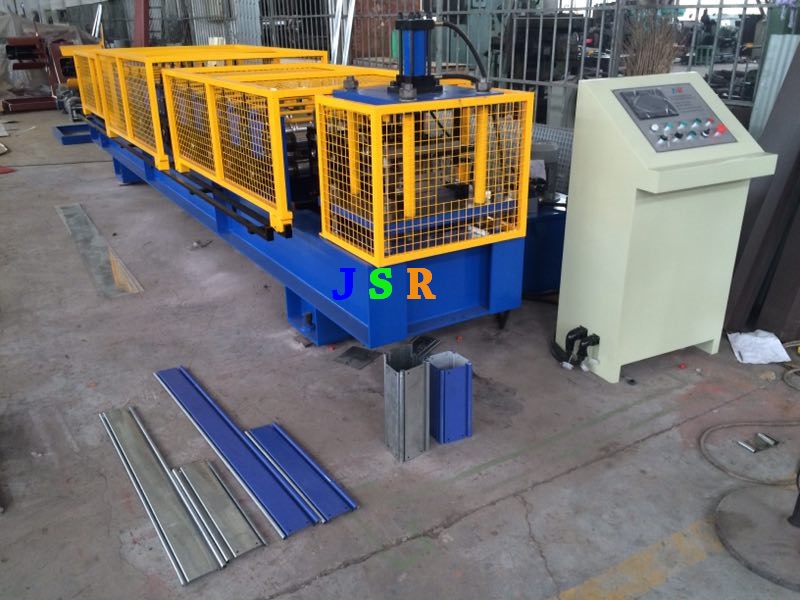

  1. one forming machine for shutter door

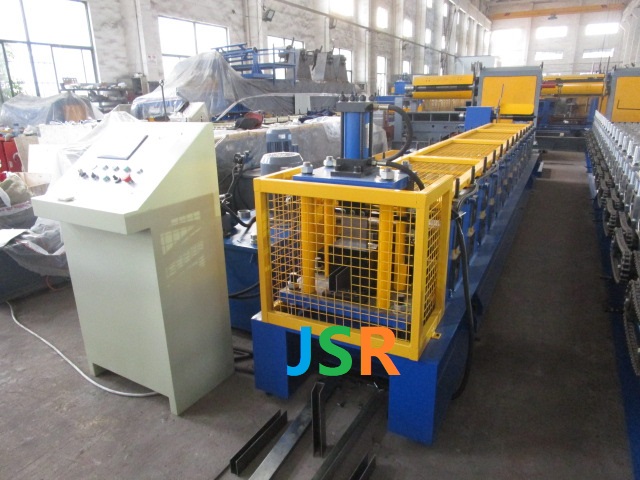

  2. one machine for shutter door frame.
  3. https://youtu.be/xmx5M2NjgCw



besides, some customer need punch hole on shutter door

while some customer punch logos or emboss pattens on shutter door,

please tell us your requirement, we will make your shutter door machines

Specifications

Technical Details

Machine Specifications
WeightAbout 3500kgs
SizeAbout 6m x 1.6m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialGalvanized Steel Coils
Thickness0.3-0.6mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations12-14
Diameter of forming rollers shafts60mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
