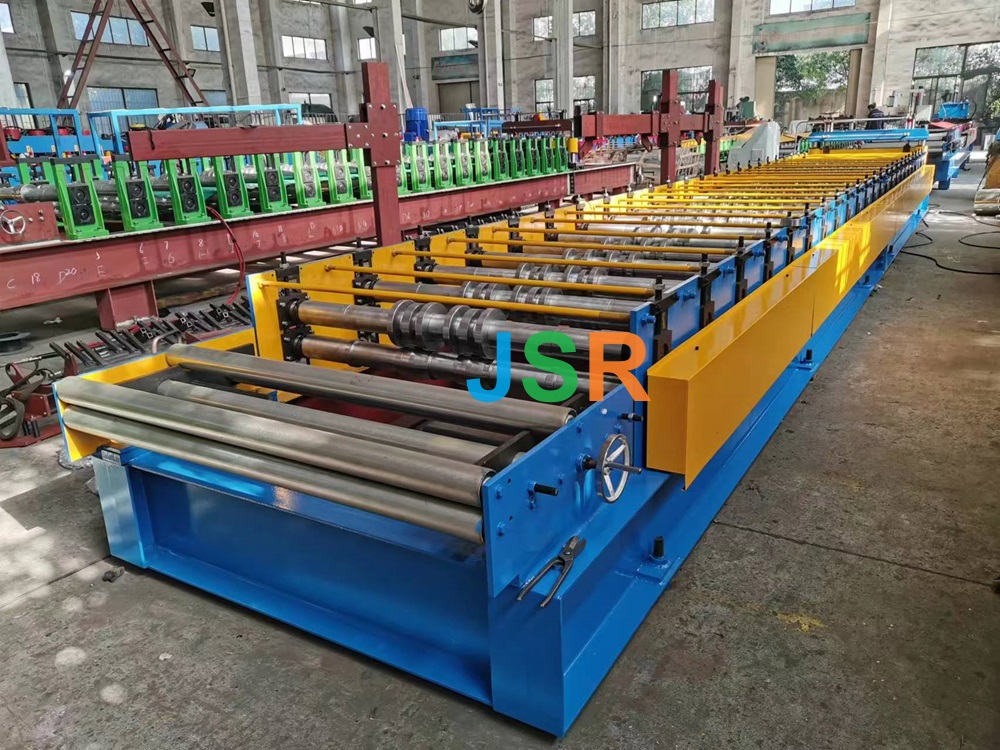

Roofing Sheet 980 profile Machine load in 40 Feet conrainer, is popular in India, our colleage Joe sold more than 50 roll forming machines to india, he sell machines more than 10 years. he will suggest popular machines to you.
Joe whatsapp 0086 188 5102 5752
roll machines works great in India

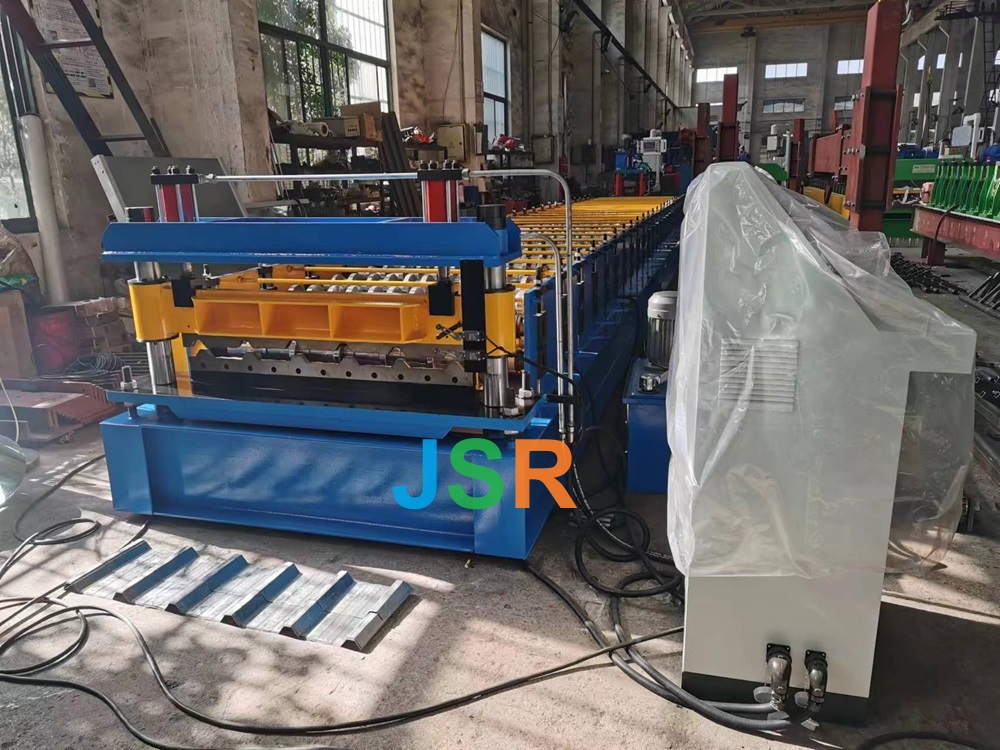

roofing sheet machine well installed and tested before delivery,
you only connect some wire and tube according to video
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm & 1250mm |
| Yield Strength | 235Mpa-550Mpa |
| Main Technical Parameters | |

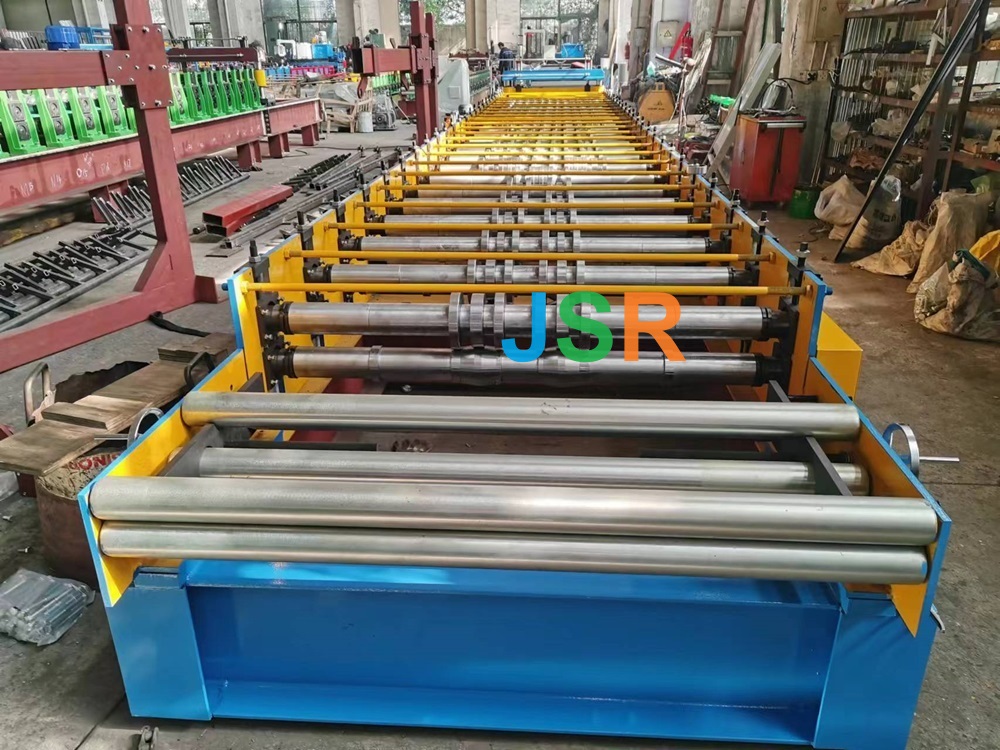

| Quantity of forming rollers stations | 24 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
