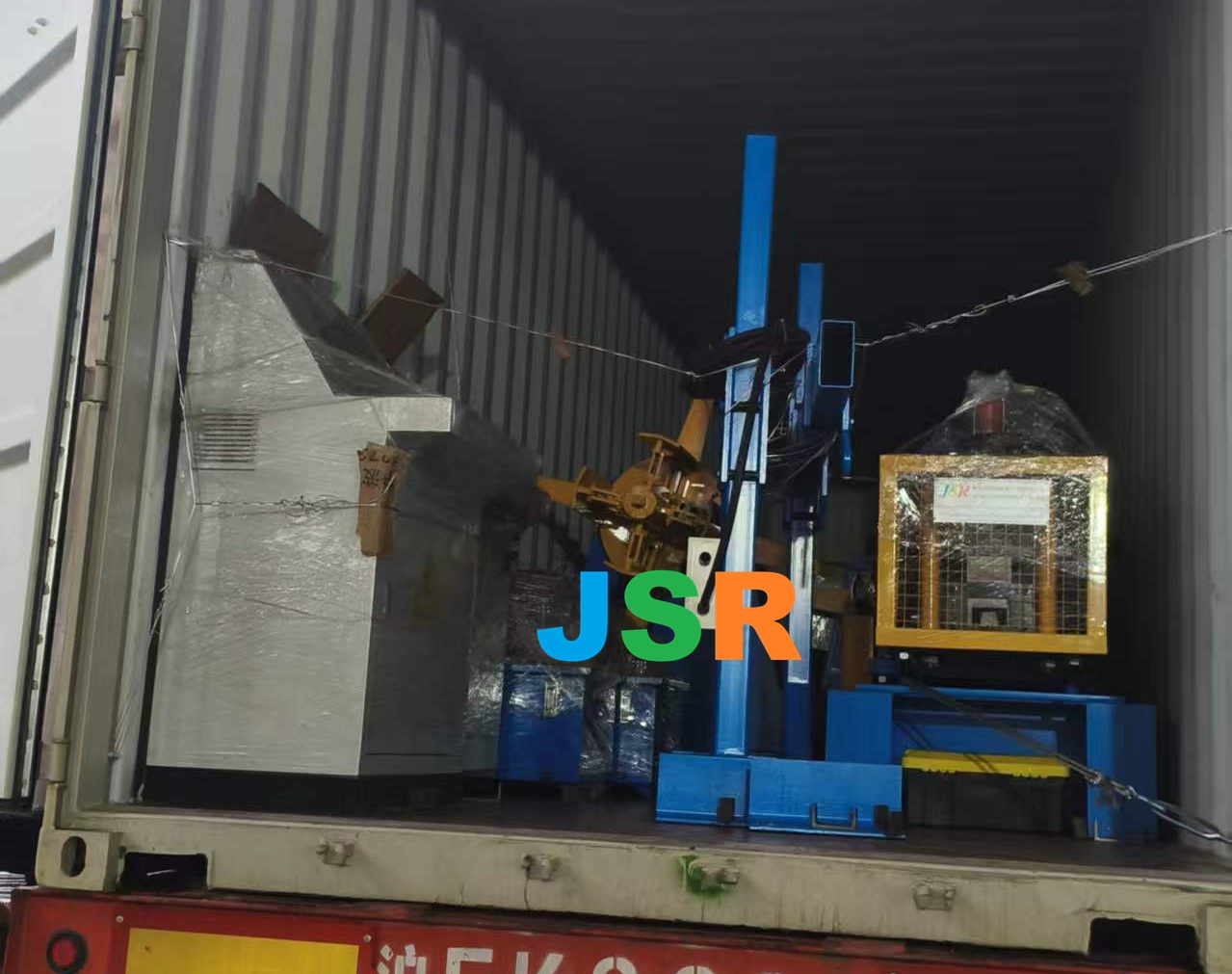

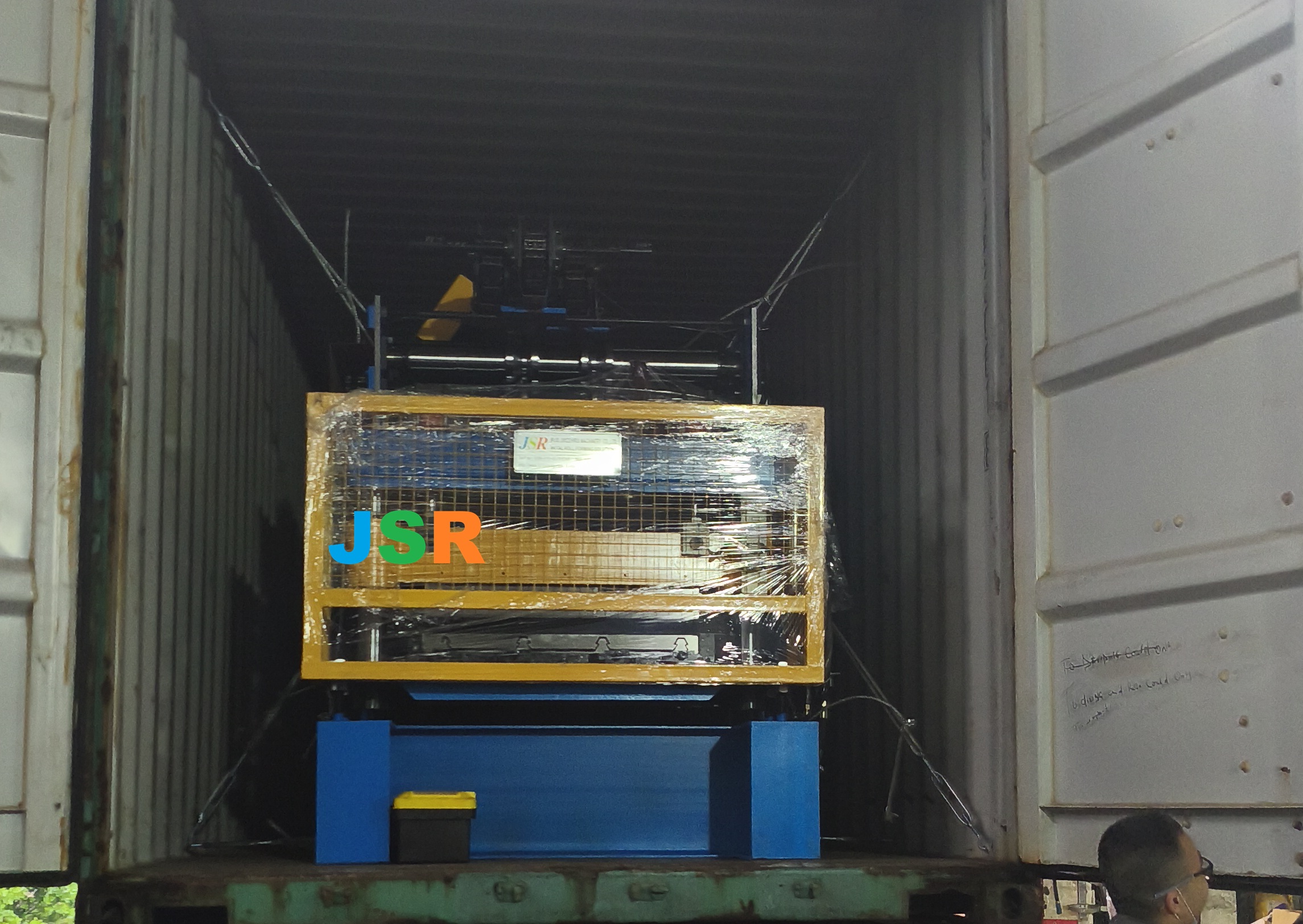

roofing batten Machine and klip lop machine delivery to Australia Apr.3, 2026

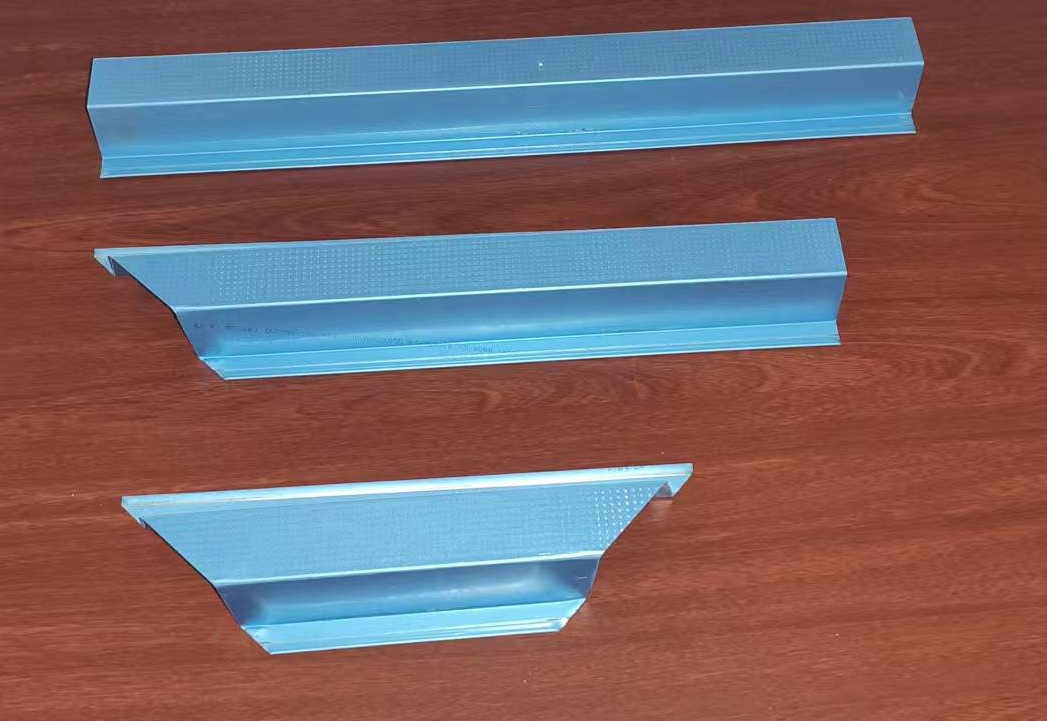

Australia Lightweight Panel Walls batten Forming Machine
can cut flat or cut with angle
forming machine with10 rollers station.
hydraulic motor4kw.
main motor5.5kw
automatically work
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 4000kgs |
| Size | About 6m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 10 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | About 10 m/min |
| Forming rollers material | No.45 steel plated with hard chrome |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about5.5kw |
| Hydraulic unit motor power: about 4kw | |
| Electric voltage | According to customer’s requirement |
