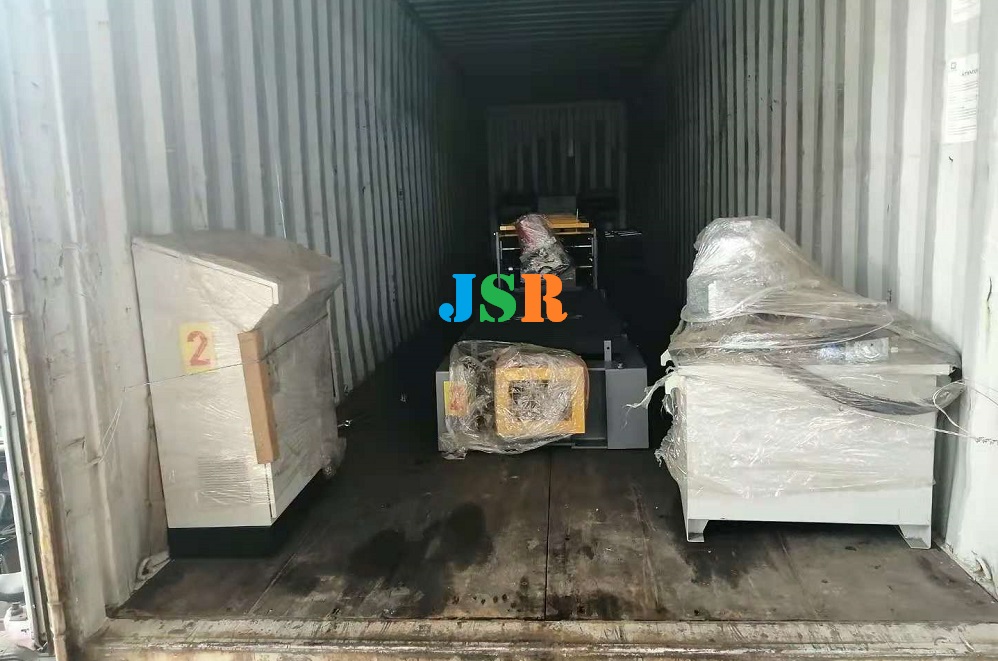

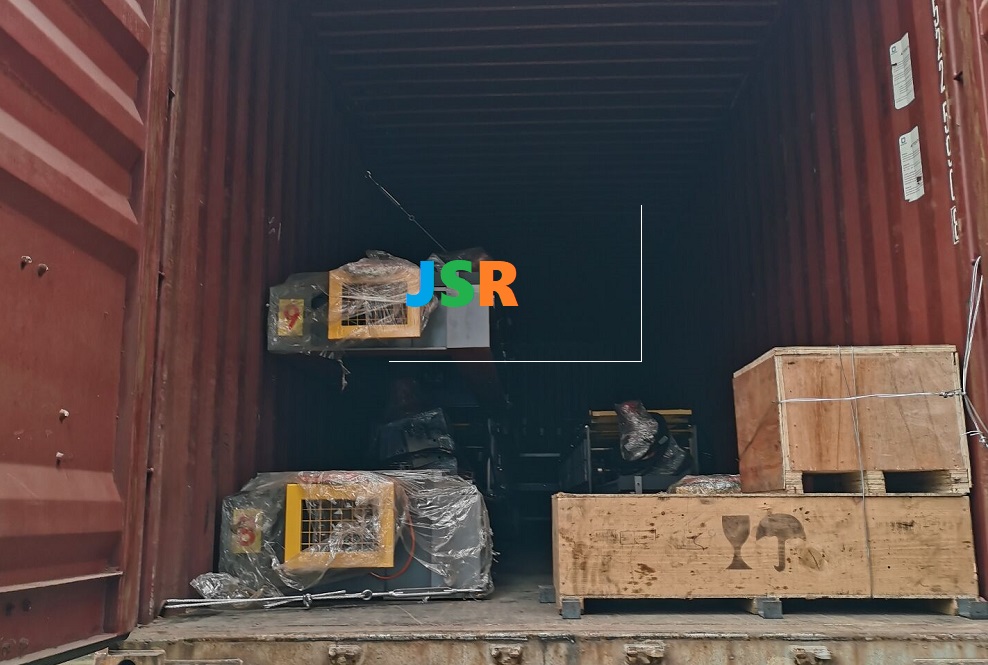

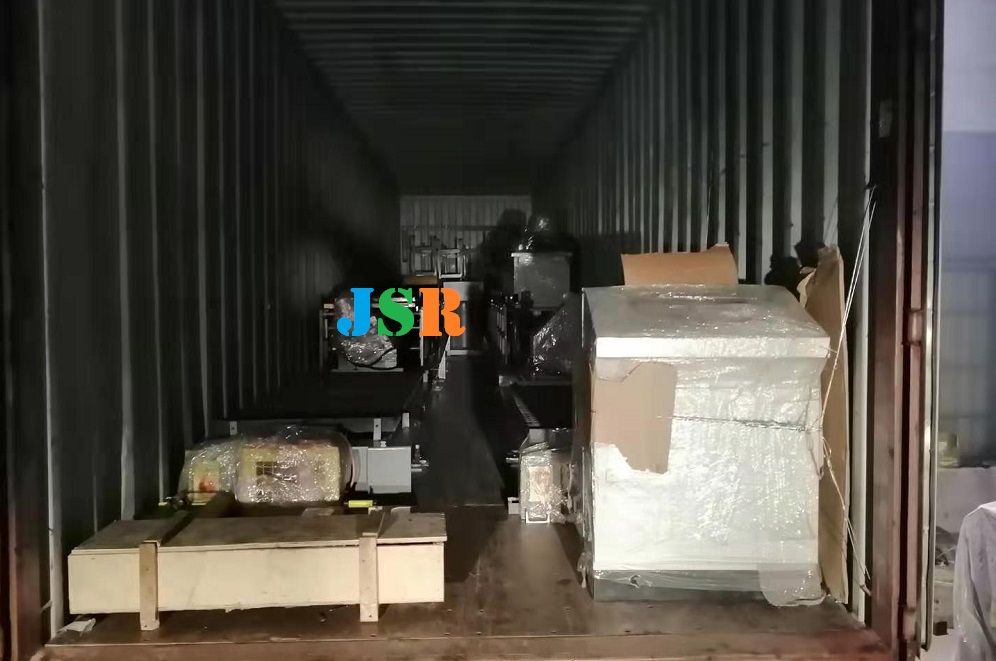

Roll forming machines to Africa

Facebook
Twitter
LinkedIn

Description

roll forming machines are designed to customers requirements.
working speed20-40m/min. with 11kw main motor and 5.5kw hydraulic motor. roller material GR15. cut blade material Cr12

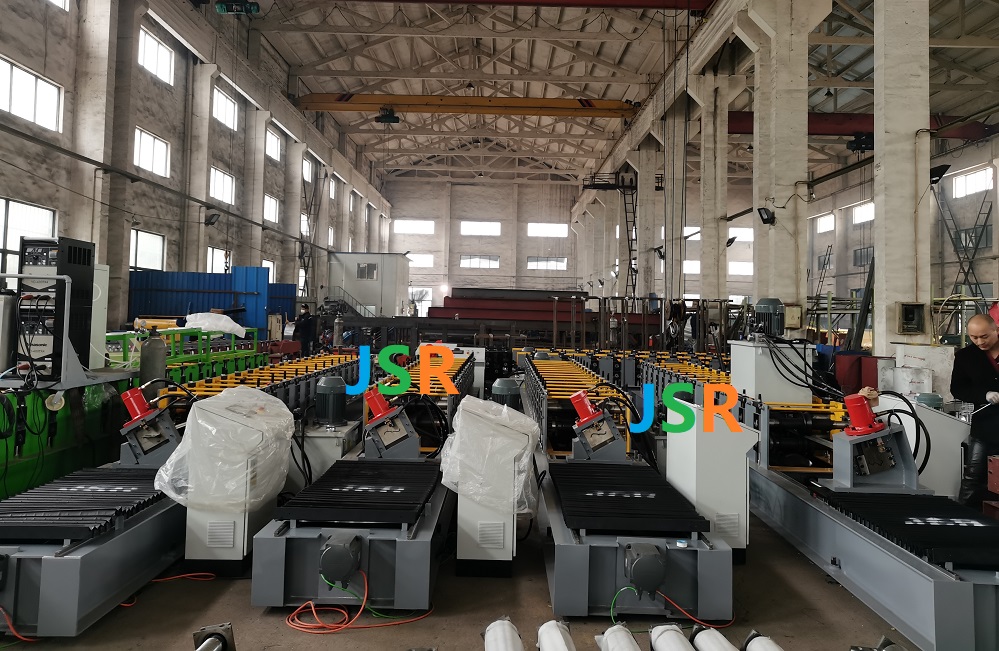

siemens servo for non stop cut

YouTube player
YouTube player
YouTube player

Specifications

Suiting raw material for customized roll former

1 ) Suitable Coil Thickness:  0.4mm -2.0 mm

2 ) Suitable Raw Materials: galvanized steel sheet

3) Yield strength of raw material: 235-345Mpa



Main parameters of customized roll forming machine

1) Forming Speed:                      Max. About 40m/min.

2) Main Motor Power:                11KW (Depend on final design)

3) Hydraulic Station Power:        5.5KW (Depend on final design)

4) Control System:                       Siemens servo

5) Encoder:                                   Nemicon (Japan)

6) Rollers’ material                    GR15 with quench treatment

7) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

8) Type of Cutting:                   Length-set cutting and post forming style

9) Electric Condition:                415V/3Phase/50HZ(or depend on customer)



Main components of high speed roll forming machine

(1) Double head Manual decoiler        1 set(Capacity : 6 tons)

(2) Roll-Forming M/C                          1 set

(3) Hydraulic Cutting                            1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) Product Rack (un-powered)            1 set
