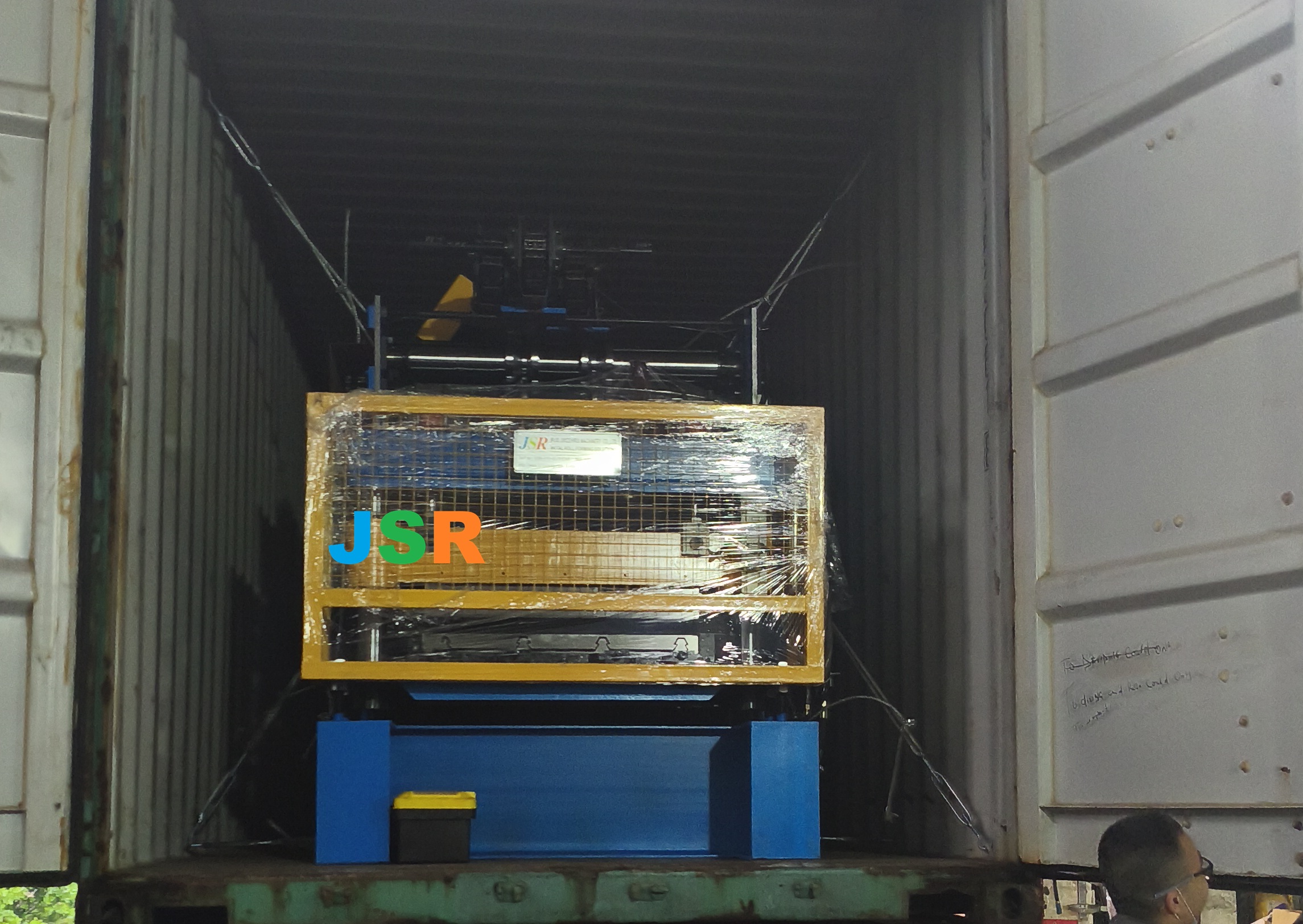

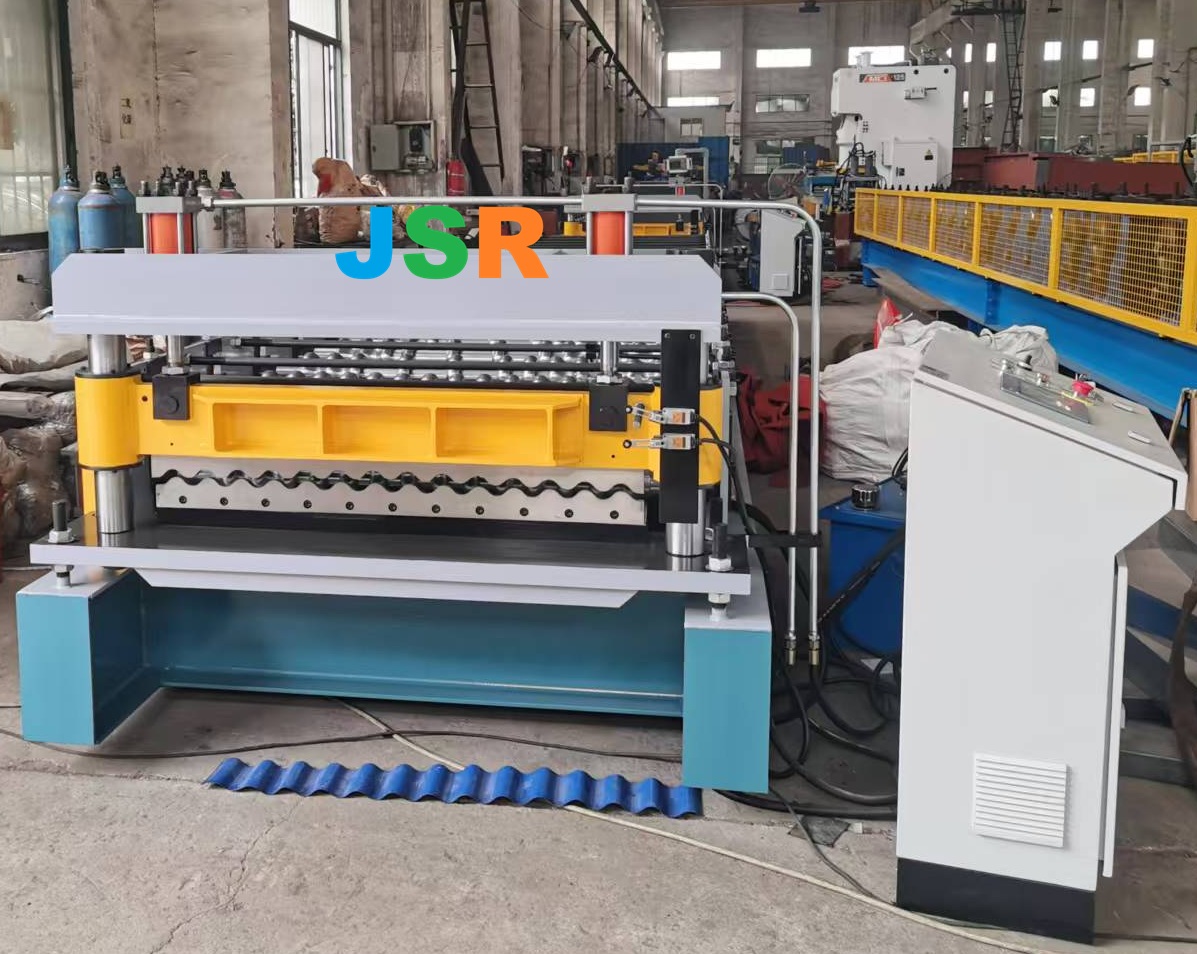

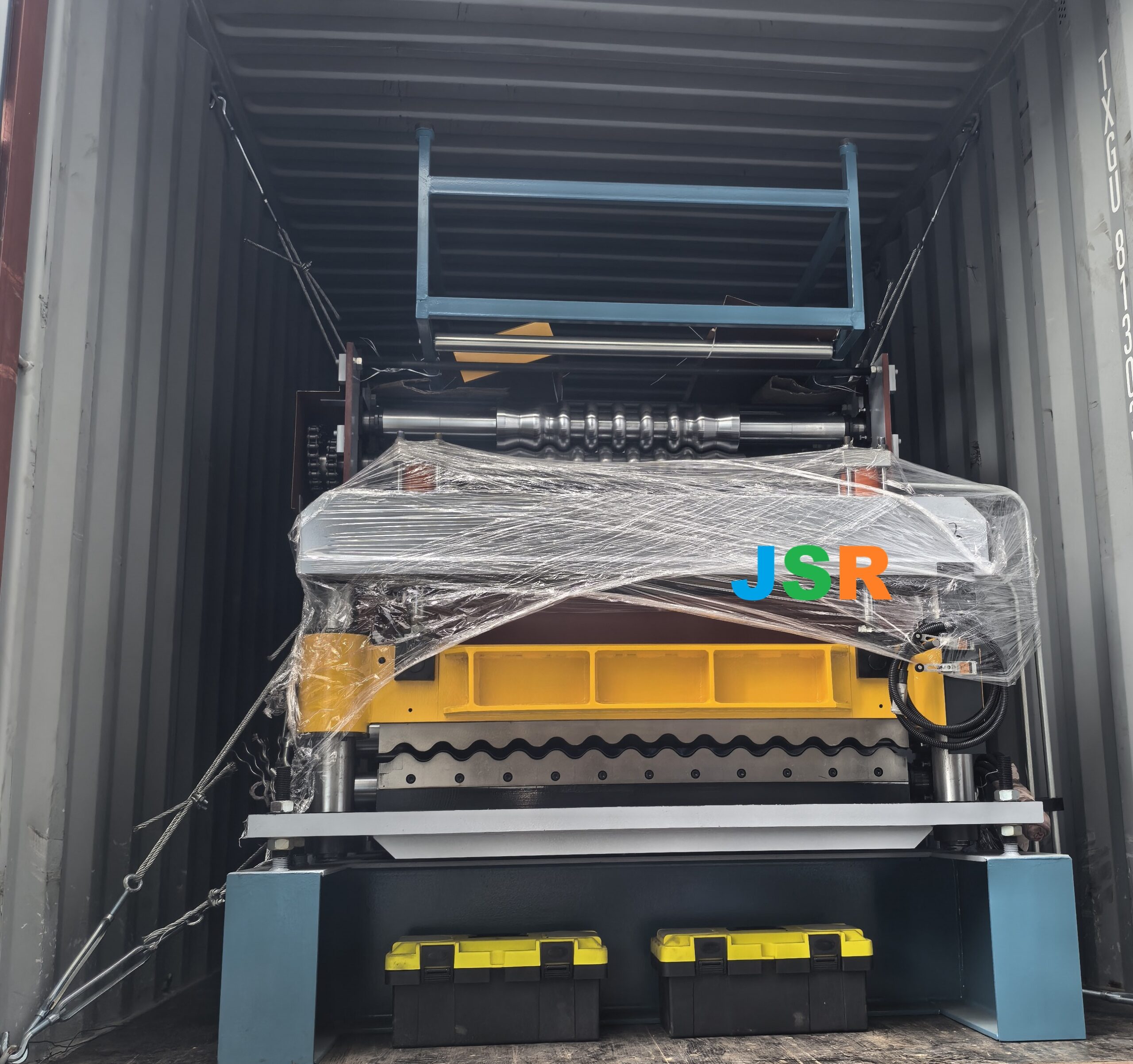

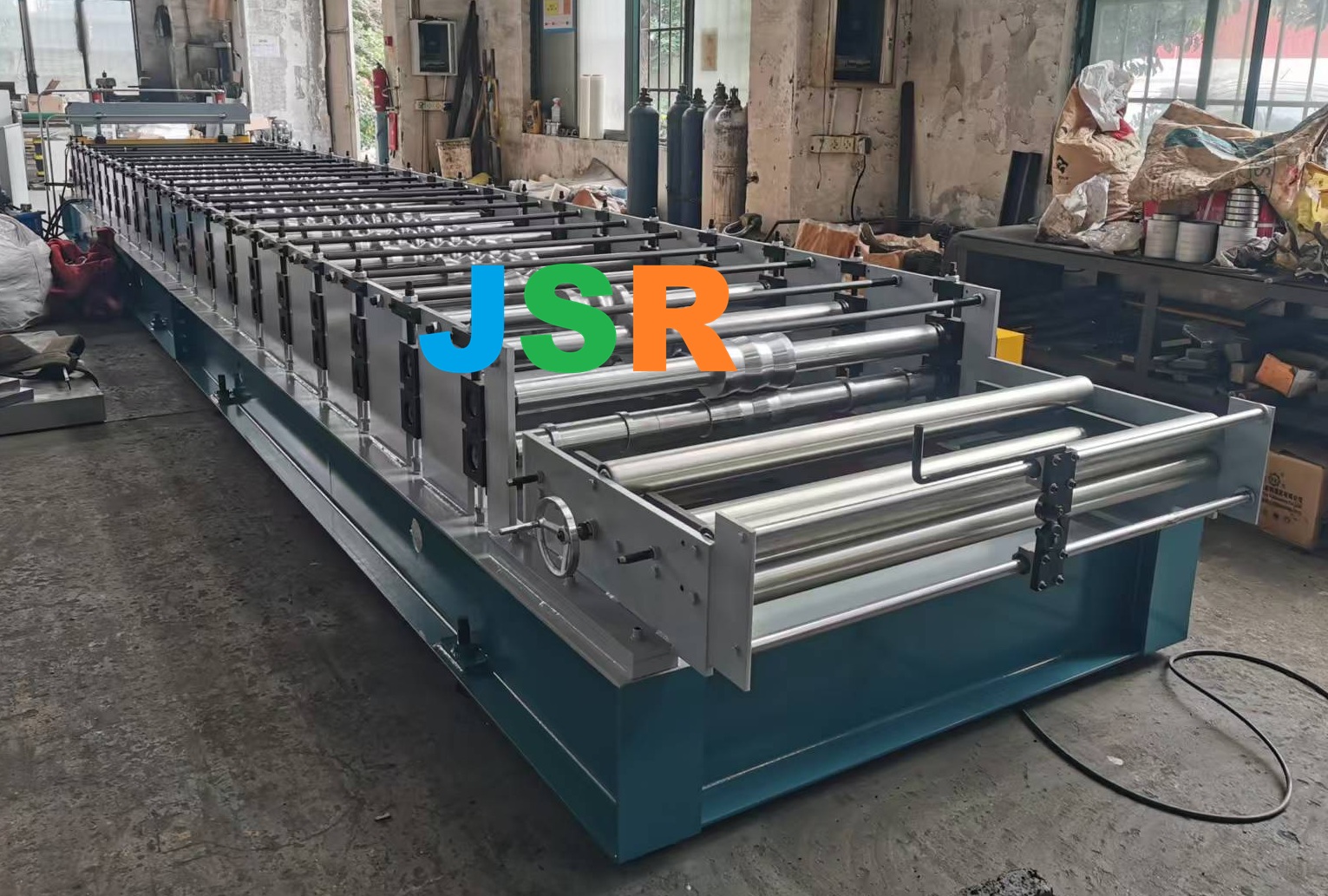

la máquina para Lámina Acanalada Ondulada O-100 y Fabricante de Lámina R101 a Mexico May30, 2026 into one 40GP container
only set length and piece, machine will automatically work

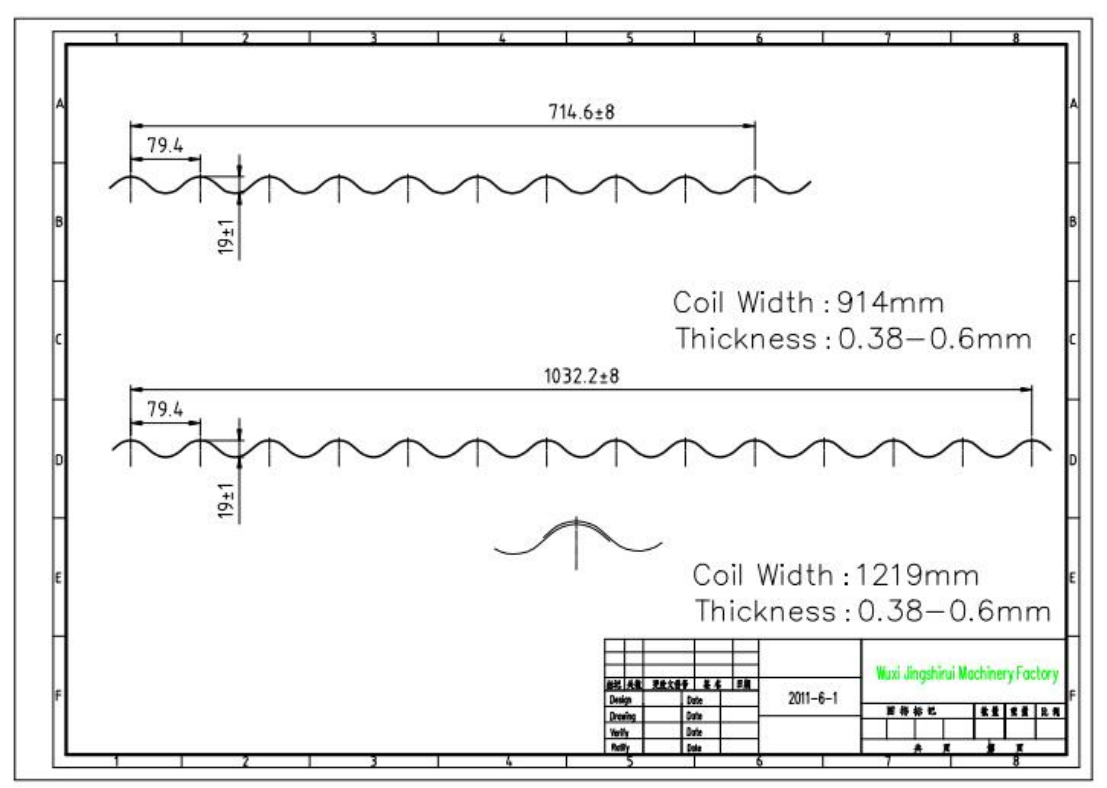

machine for raw material 1220mm width 0.3-0.7mm thickness, to make O100/1032 mm effective width ondulados
machine for raw material 914mm width 0.3-0.7mm thickness, to make O30/714 mm effective width ondulados
machine is well installed , you only connect some wires and tubes according to video
Suitable raw material for trapezoidal metal sheets roll forming machine
1 ) Suitable Raw Materials: galvanized steel coils. PPGI
2 ) Suitable Coil Thickness: 0.3-0.7mm
3) Yield strength of raw material: 235-345Mpa
Main parameters of trapezoidal sheets roll forming machine
1) Forming Speed: about 25m/min. (excluding the cutting time)
2) Main Motor Power: 7.5KW (Depend on final design)
3) Hydraulic Station Power: 3KW (Depend on final design)
4) Control System: siemens PLC and yaskawa converter
5) Encoder: Nemicon (Japan)
6) Rollers’ material No.45 steel plated with hard chrome , 20 roller stations
7) Shaft diameter 75mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 220V/3Phase/60HZ(oraccording to customer)
10) Total Weight: About 10000 Kg
Main components of corrugated sheet forming machine
(1) Manual decoiler 1 set（Capacity : 5 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
