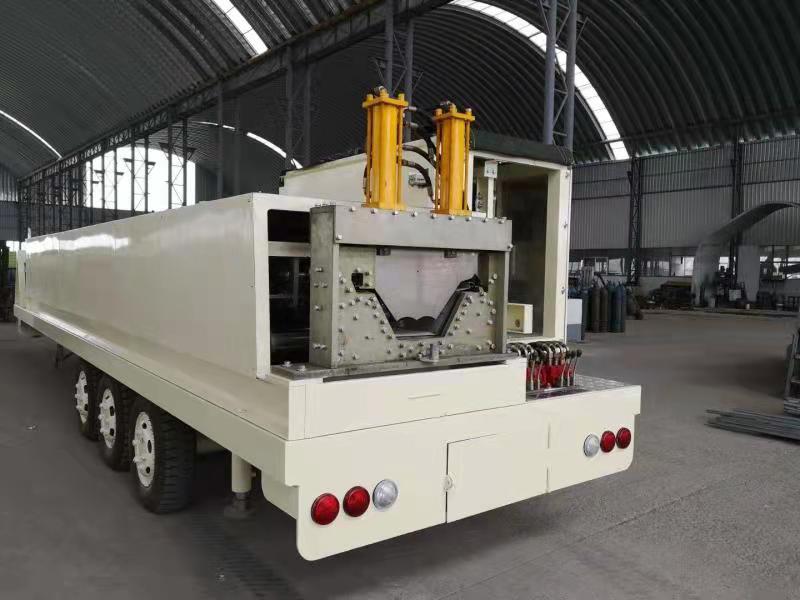

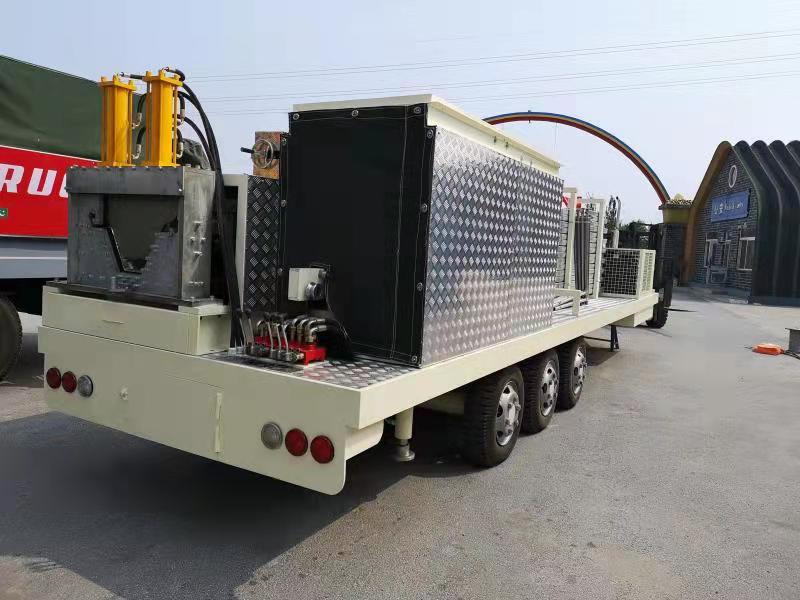

K-Span Roll Forming Machine

• Main Technical Specification:

1. 1. Length:Approx.10m
2. 2. Width:Approx.2.2m
3. 3. Height:Approx.2.3m
4. 4. Wight:Approx.87000kg
5. 5. Axle:Threeat 3630 kg/each capacity Six wheels in total
6. 6. Wheel/tires:Standard, six in total
7. 7. Towing: adjustabledrawbar height from 80mm-160mm with 80mm round hitch.
8. 8. One set of 40HP Diesel Engine,American Commins Brand, globe after-service.
9. 9. LightingSystem:Easily adaptable lighting system to meet most international requirements.
10. 10.Drive System:All hydraulic
11. 11. Fuel tankcapacity:68 liter, 1-piece
12. 12.Construction:All steel and burnished construction, precision forming rollers with hard chrome platin
13. 13.DecoilingDevice: 7000kg capacity
14. 14. Plant:Premium urethaneenamel over epoxy primer (white)
15. 15. Panel formingspeed:Approx. 15meters/min

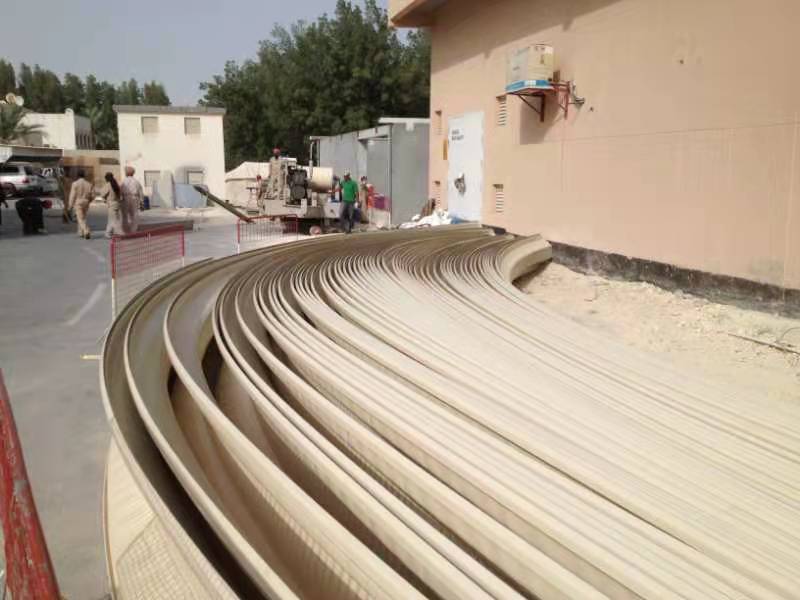

16. 16. CurvingSpeed:Approx. 14meters/min
17. 17. SeamingSpeed:Approx. 6-8 meters/min
18. 18. Minimum Radius:2 meters
19. 19.Steel Coil Capacity: 1.51 mm maximum thickness, 0.70 mm minimum thickness
20. 2Maximum Building Size: 38meters wide, widths are calculated using liberal code parameters from the International Building Code

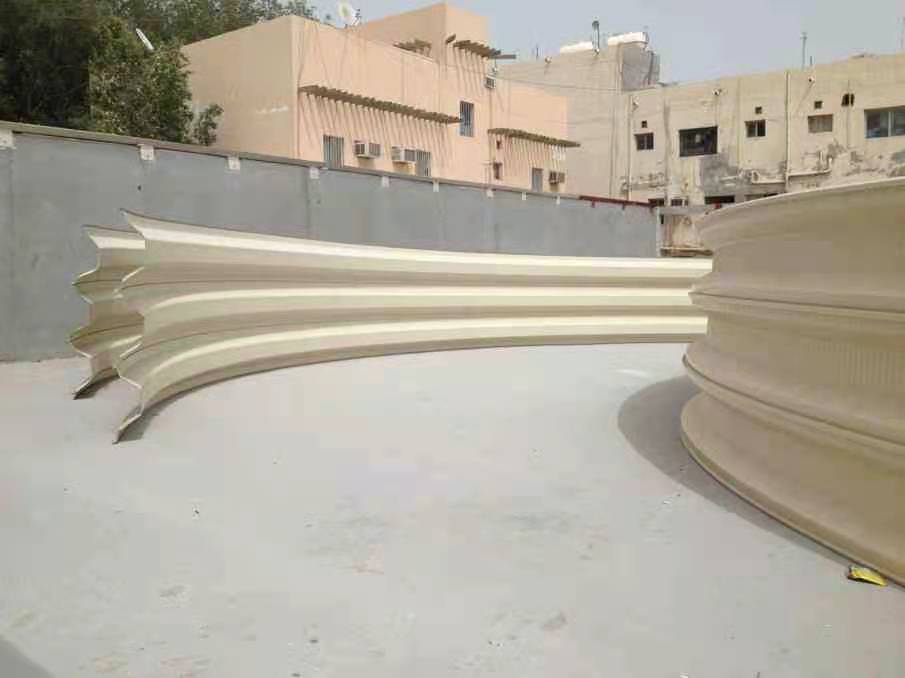

21.Feeding width:914mm,effective width:610mm

22.Operating factor of the panel: 66.7%
