c z purlin roll forming machine for standard size C80-300MM, Z 100-300MM, Raw material thickness1.5-3.0mm, with two device to punch the bottom.

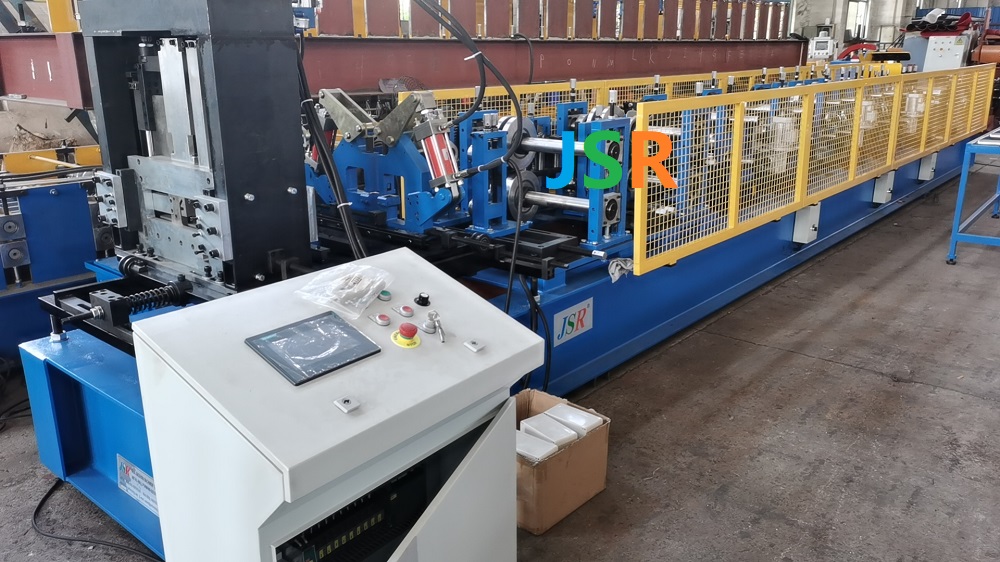

This CZ purlin forming machines include 3 ton manual decoiler , forming system with optional punch hole device, post cut device, run out table , PLC control system , run out table
between C and Z , adjust some upper layer rollers with lower rollers by handwheel 180 degree turn.
for different size ,move whole line roller with bottom press control, easy and time saving.
how to program cz purlin roll forming machine: 1 set length and pieces, 2 set punch hole distance
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 10m x 1.4m x 1.8m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0mm |
| Coil width | According to products size |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 14-16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customers requirement |
Layout of CZ
APPLICATION
Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.
Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.
Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.
Operate easily , work automatically with PLC controller control.
Decoiler- forming- punch – cut – run out
machine makes 3inch to 8 inch c profile in honduaras
cz purlin machine make section height till14 inch in guatemala
standard cz purlin machine in india, 100-300mm and 1.5-3.0 mm thickness
c purlin machine in brazil
cz purlin machine in ghana
