if you want to make adjustable Knocked Down Door Frame,then you buy our roll forming machine
which include 3 ton hydraulic decoiler, leveling device, servo feeding device .hydraulic punch, roll forming, hydraulic station, plc controller

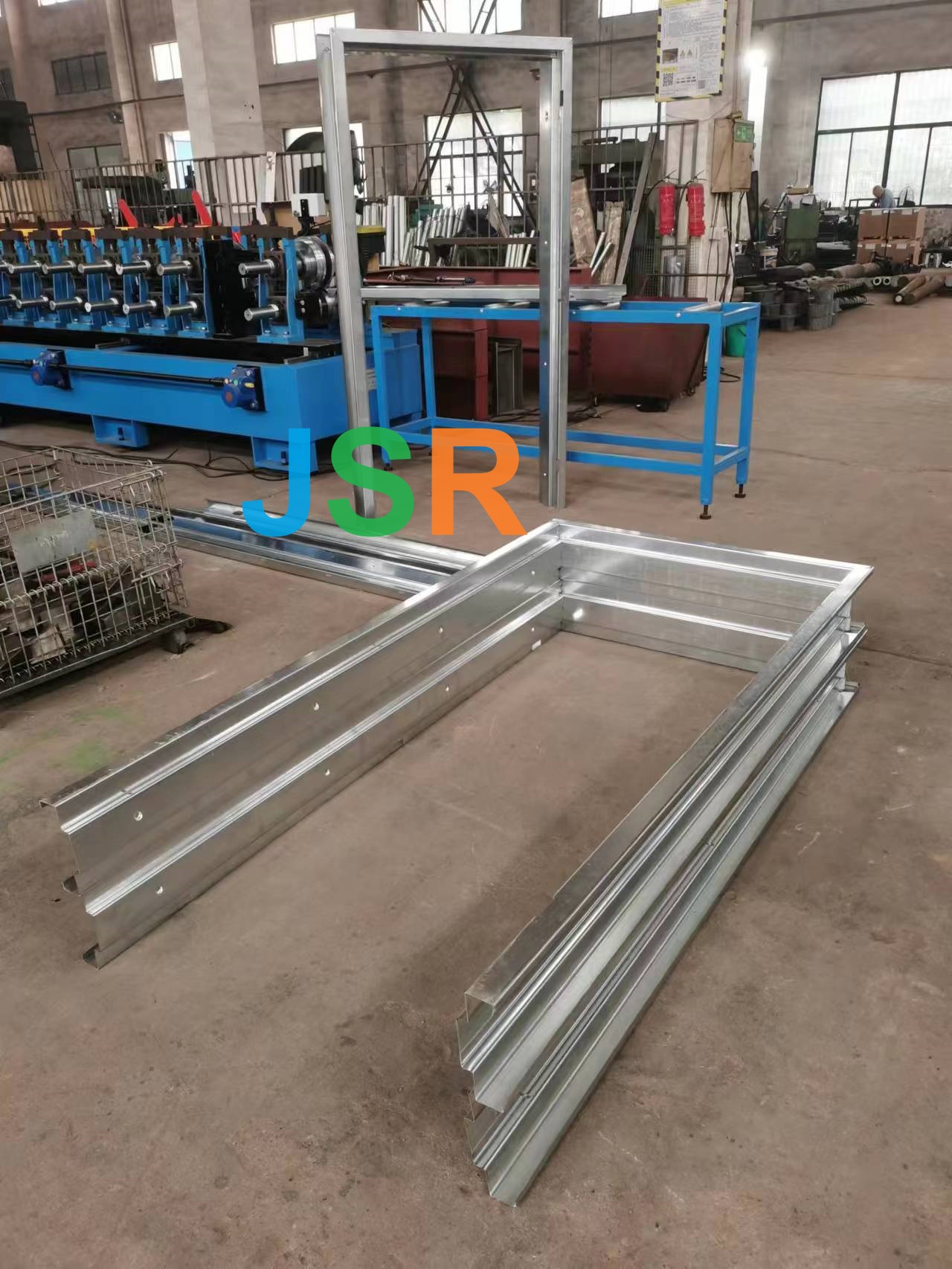

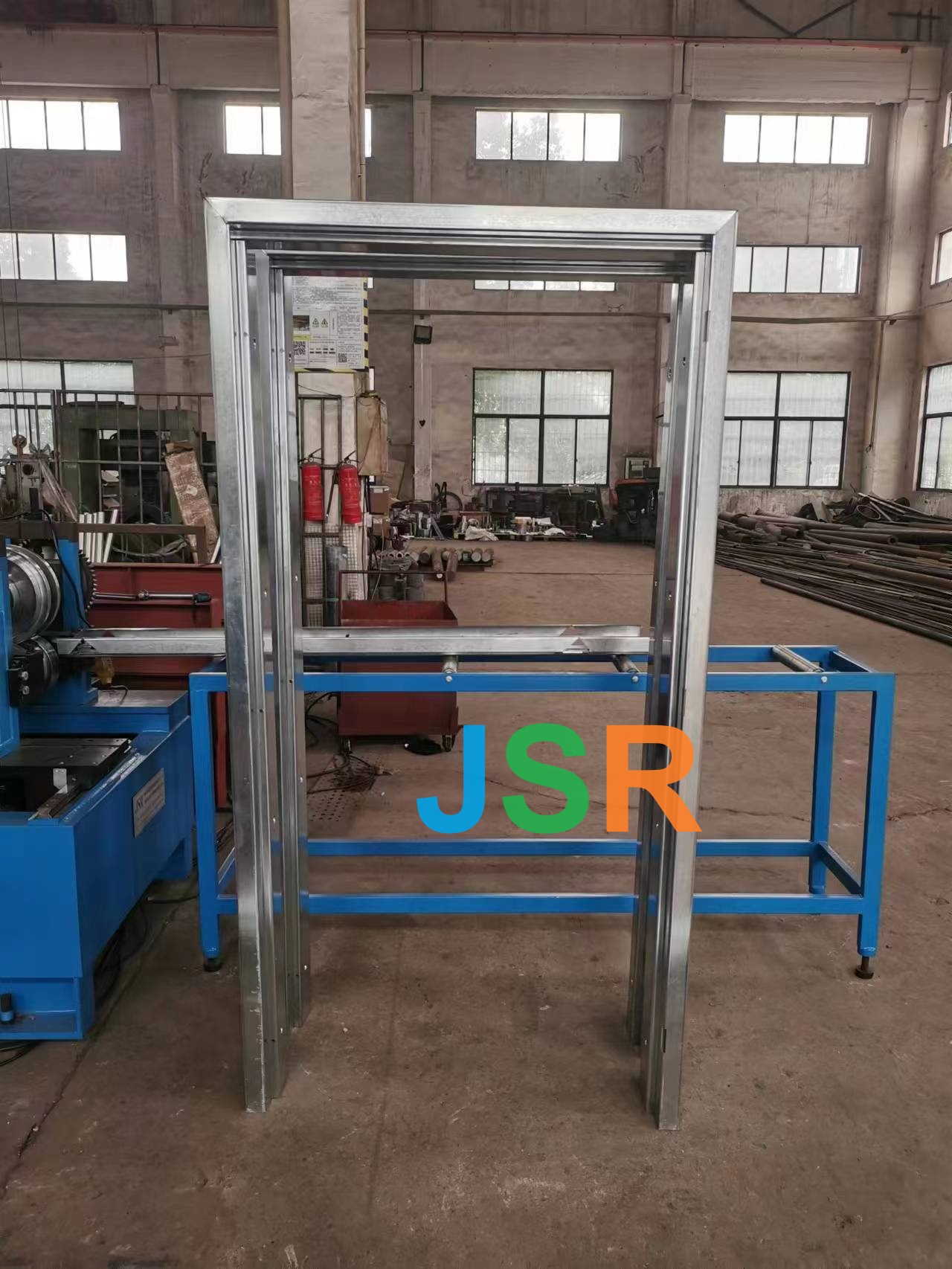

after door frame sheets come out of roll forming machine, you only knock down to install the frame, which is very easy as video
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 18000kgs |
| Whole line’s dimension | About 35m x 3m x 1.5m (length x width x height) |
| Color | Main color: green |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2mm |
| Coil width | According to products size |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | About 22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | about 4m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | siemens PLC and Yaskawa Converter |
| Electric Power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system motor 4kw | 1 set |
| hydraulic Punching machine with servo feeding 3kw | 1 set |
| Hydraulic Cutting system | 1 set |
| Roll Forming system motor 15kw | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| Run outs tables | 1 set |
