How JSR machinery factory make cz purlin roll forming machine

Description

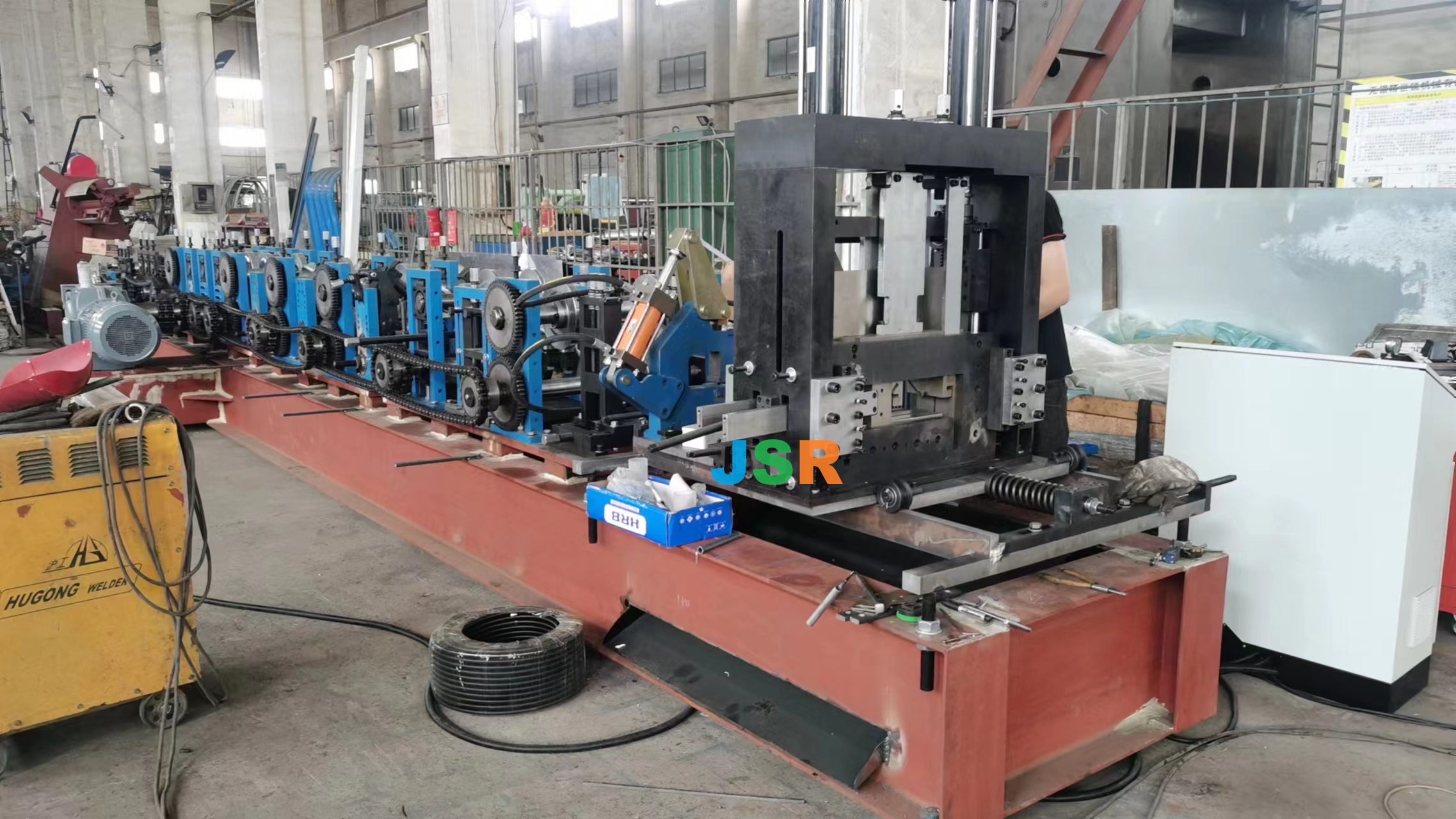

CZ purlin machine make C purlin and Z purlin, size from 100-300mm, thickness 1.5-3.0mm

cut raw material for rollers, shafts, base and other components

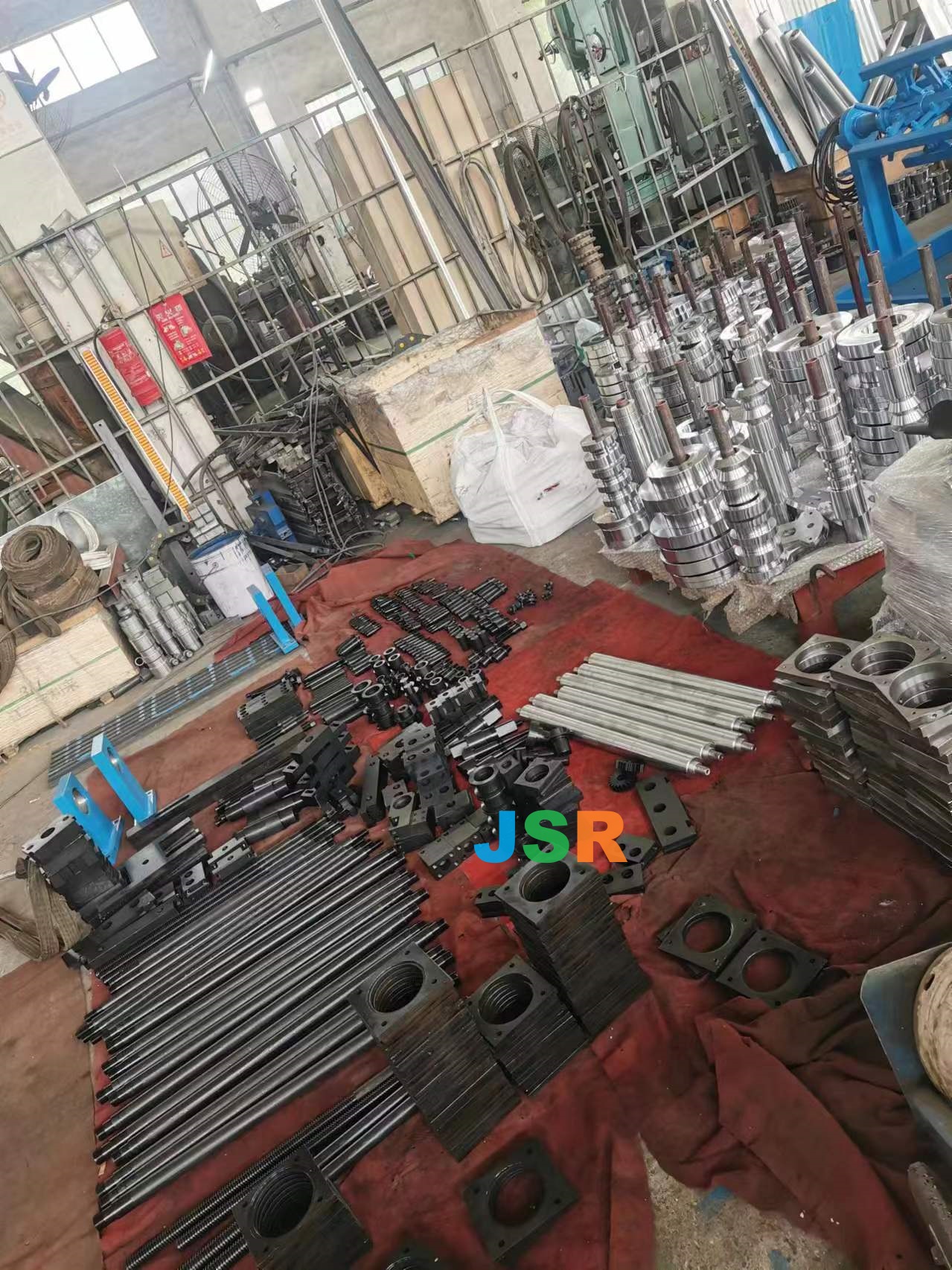

roller matrial GCR15, CNC will process rollers , make sure rollers high precisions, then quench treatment to improve hardness.
diameter 75mm solid shaft process two times

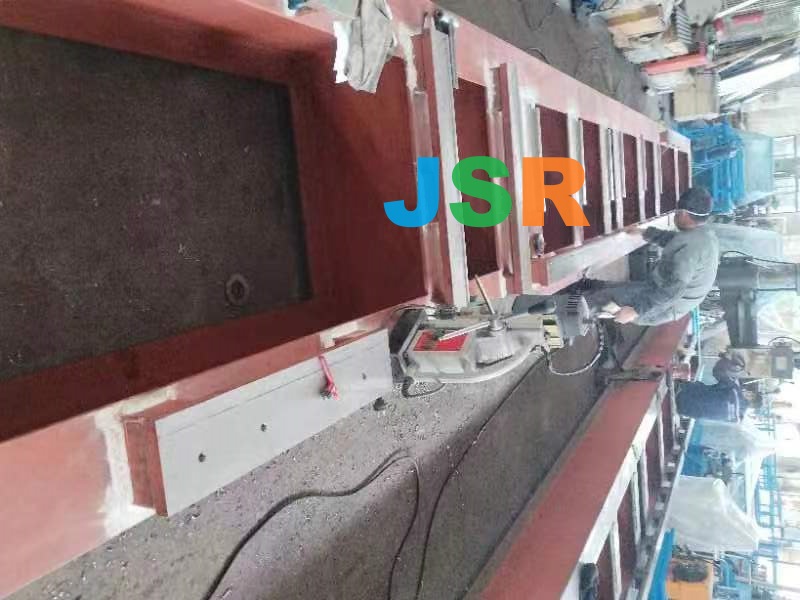

base with grinding treatment.

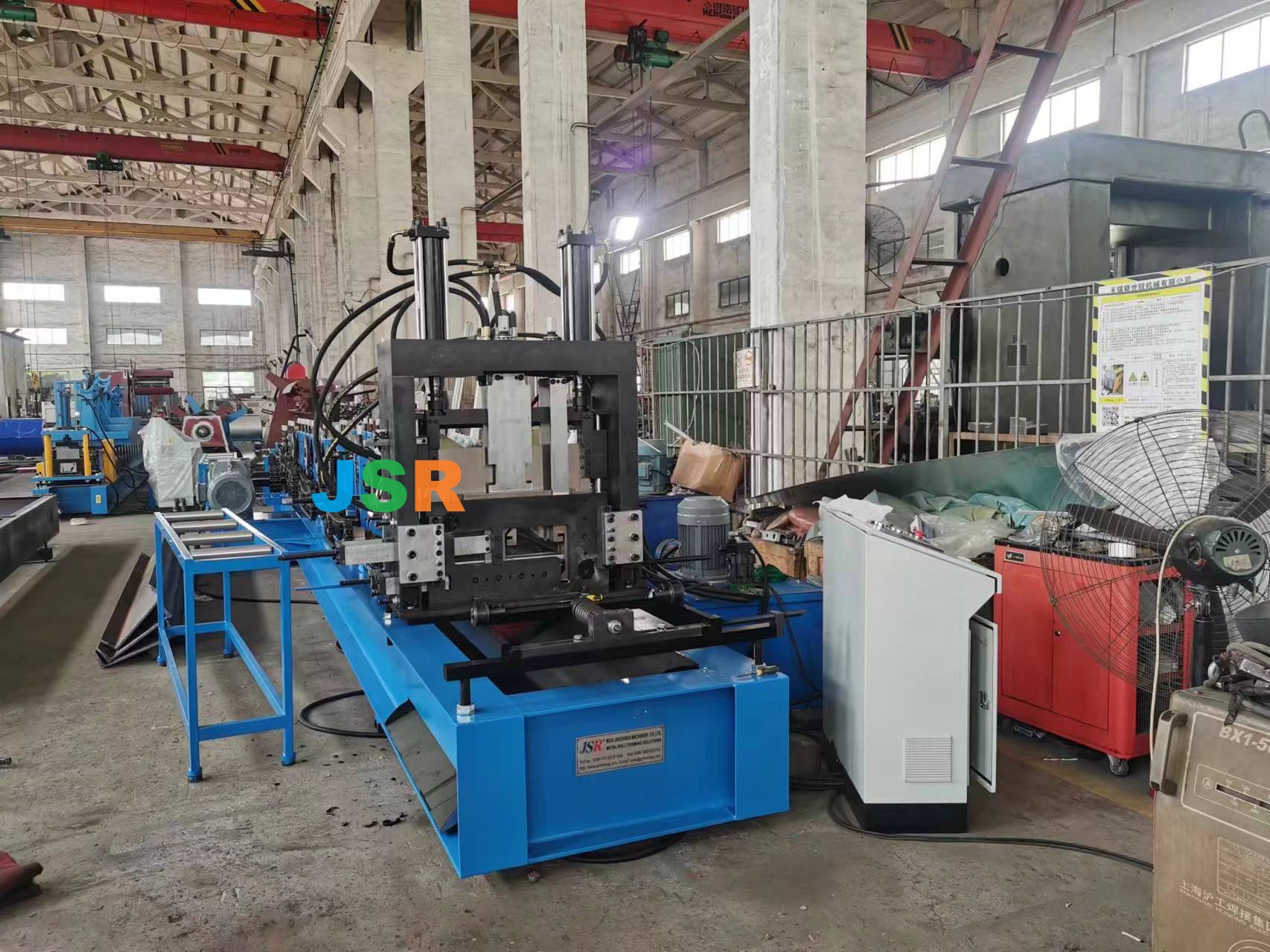

installing
testing

usually we make one cz purlin machine 60days. first 4o days, we process for rollers, shaft, base and other conponents,

later 20 days, we install and test machine

Machine Specifications
Weight	About 9000kgs
Size	About 10m x 1.4m x 1.8m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	1.5-3.0mm
Coil width	According to products size
Yield strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	14-16
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4-6m/min
Forming rollers material	Gcr15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric power requirement	Main motor power: 15kw
Electric power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customers requirement
