Downspout Roll Forming Machine To UAE

Description

down pipe machine or Downspout forming machine for pipe size 220x100mm made for UAE.

This downpipe machine is combined type, that mean, the same machine make straight downspout and elbow.

We are also making seperate 100×76 mm downspout machine for UAE, that is one machine make straight pipe, one machine make elbow.

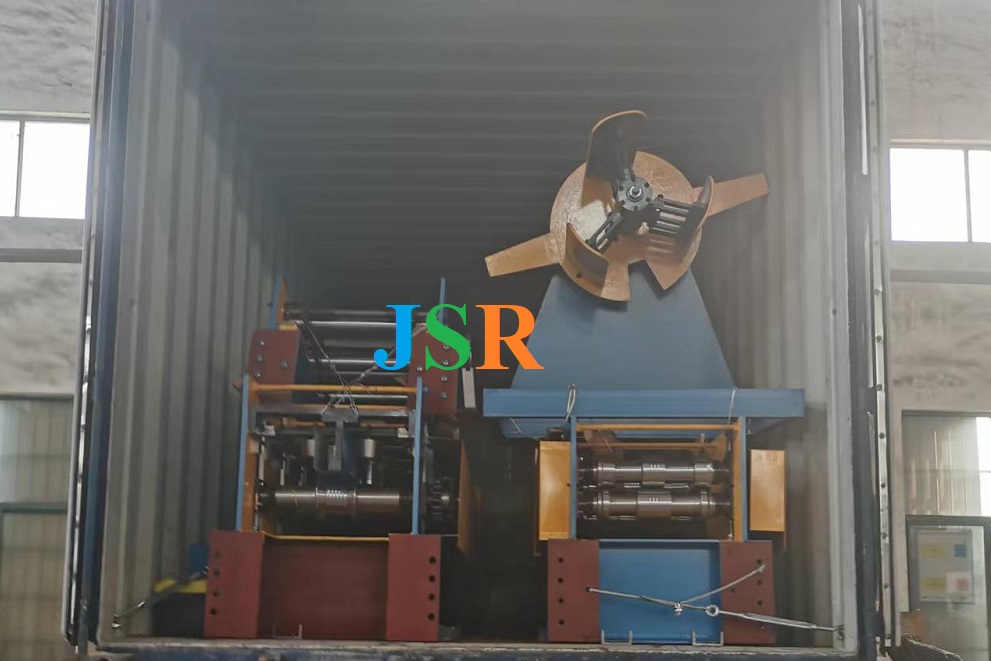

100X100 DOWNPIPE machine load in one 20 feet container to Oman,

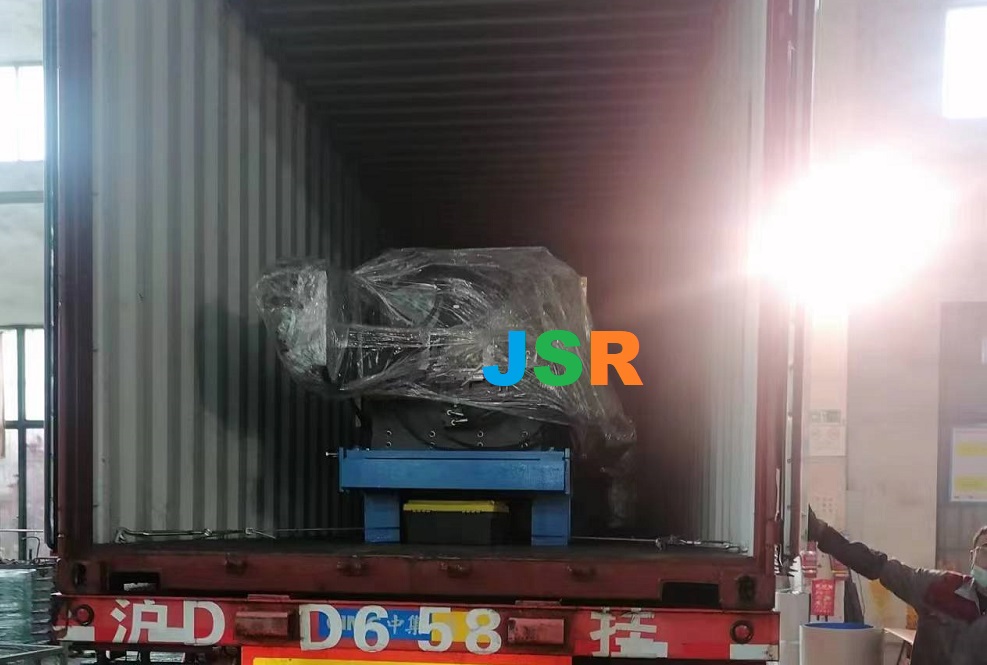

220X100 downpipe machine load in two 40 feet container

Specifications

Technical Details

Machine Specifications
Weight	About 13000kgs
Size	About 11m x 1.2m x 1m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.5-0.6mm
Coil width
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	28
Diameter of forming rollers shafts	75mm
Roll Forming Speed	8-12m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Motor of roll forming machine: 7.5kw
	Motor of cutter and elbow: 5.5kw

Electric voltage	According to customer’s requirement
Main Components
Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Roll Forming system	1 set
hydraulic cut system and elbow system	1 set
PLC control box	1 set

Run outs tables	1 set

Layout of downpipe machine

APPLICATION

Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut – run out
