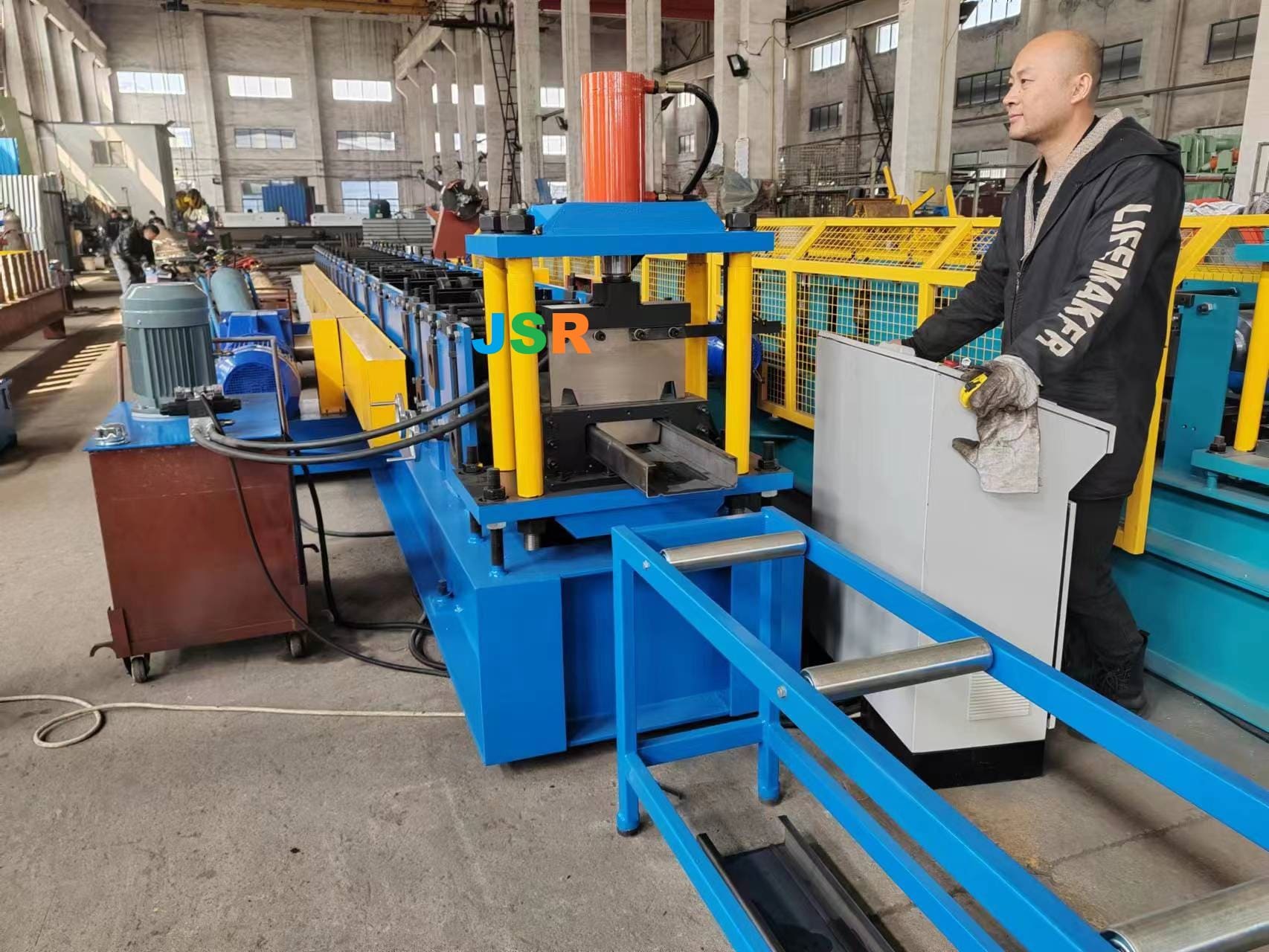

C purlin roll forming machine to make 6 inch and 8 inch, raw material thickness 1.5-3.4mm
main motor 18.5kw, hydraulic motor 5.5kw
solid shaft 90mm, roller material GCR15
how to change size between 6 inch and 8 inch
if you need many size C purlins, for example 100-300mm, we have another way to change size
Suitable raw material for c purlin roll former
1 ) Suitable Raw Materials: galvanized steel sheet
2 ) Suitable Coil Thickness: 1.5mm -3.0mm
3) Yield strength of raw material: 235-345Mpa
Main parameters of c shape roll forming machine
1) Forming Speed: 0-10m/min. (excluding the cutting time)
2) Main Motor Power: 15KW (Depend on final design)
3) Hydraulic Station Power: 5.5KW (Depend on final design)
4) Control System: siemens PLC and yaskawa converter
5) Encoder: Nemicon (Japan)
6) Rollers’ material GCR15
7) Shaft diameter 90mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 460V/3Phase/60HZ(oraccording to customer)
10) Total Weight: About 9000 Kg
Main components of C Profile forming machine
(1) Manual decoiler 1 set（Capacity : 3 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
we make very detailed video show customer how to set up machine and how to operate machine,
you will see it is very easy and user friendly,
