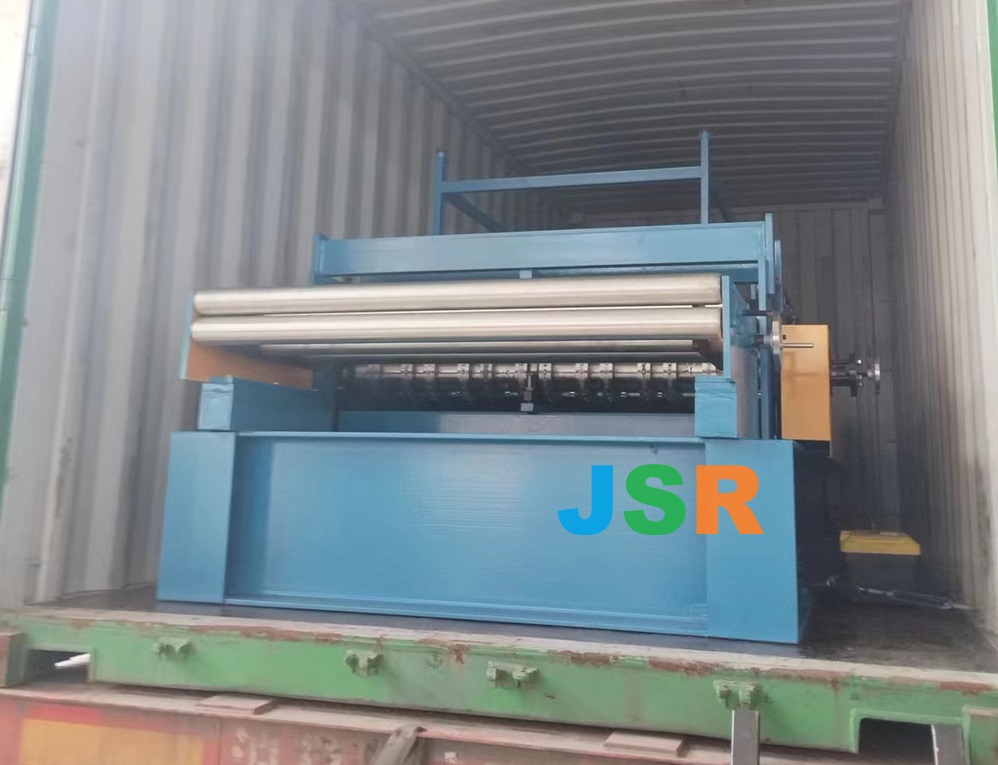

B deck machine to costa rica,machine weight about 20 ton, length about 18m, load into one 20 feet container and one 4o feet container.
machine is popular in america, mexico and central american countries.
machine can feeding 1220mm width material or 1250mm
machine can make embossment or without
| Machine Specifications | |
|---|---|
| Weight | About 20000kgs |
| Size | About 18m x 1.8m x 1.5m (length x width x height) |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 85mm |
| Roll Forming Speed | 10-15/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2x11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
you can start machine according to video, you will see it is easy, and most customers can DIY
Of course , our technician can go to your factory to help if you required.
