Auto CZ Purlin Roll Forming Machine to guatemala
this CZ purlin machine can make Max. size 14inch (355mm), Max. thickness 3.5mm. pre Cut, automatically change size(you set your required size in PLC controller, servo motor will drive rollers to position automatically.

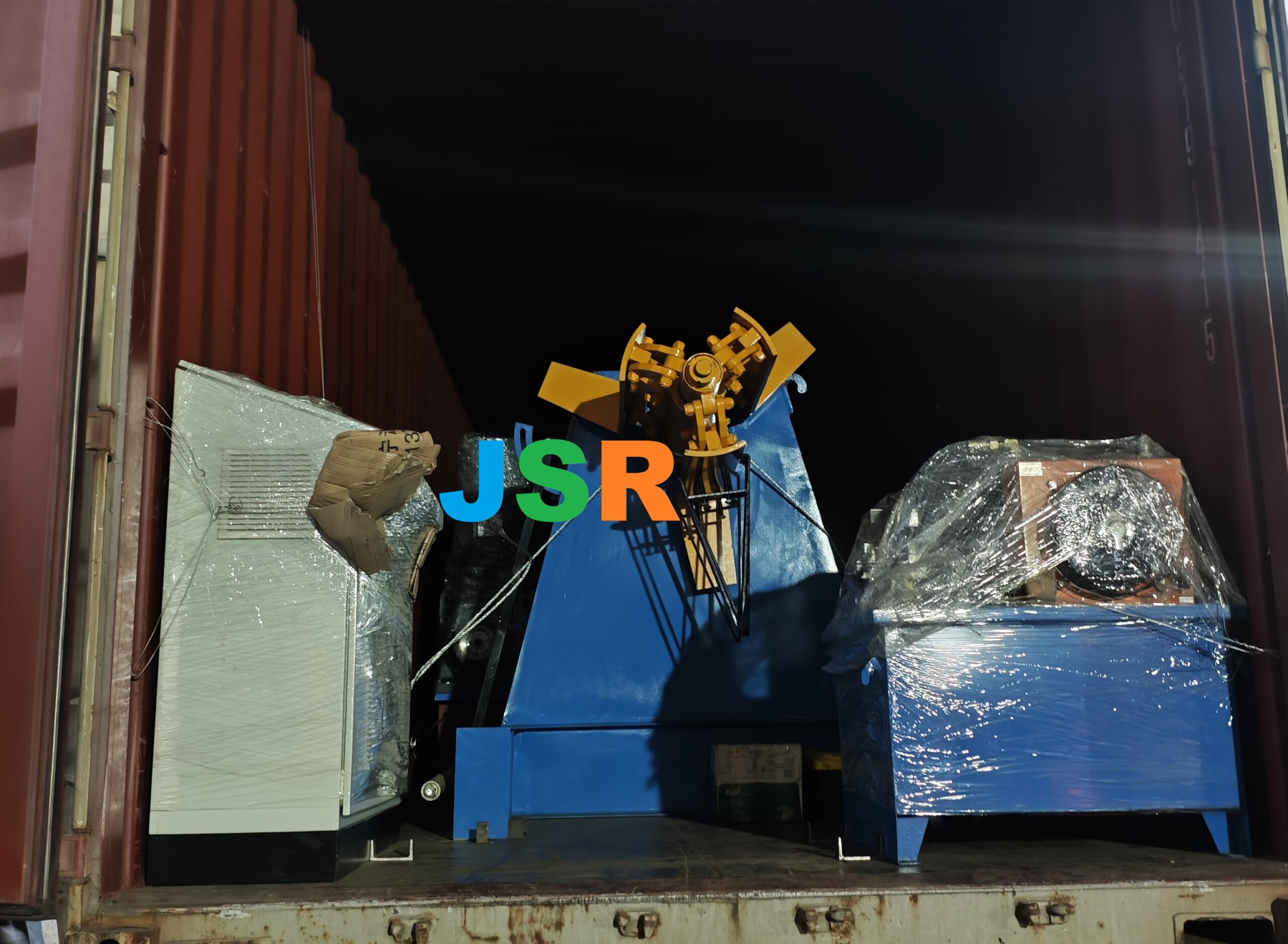

machine with hydraulic decoiler weight 26 ton, load into two 40GP.
| Machine Specifications |
| Weight |
About 26000kgs |
| Size |
About 20m x 2m x 1.8m (length x width x height) |
| Color |
Main color: blue |
| Warning color: yellow |
| Suitable Raw Material |
| Material |
Galvanized Steel Coils |
| Thickness |
1.5-3.5mm |
| Coil width |
According to products size |
| Yield strength |
235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations |
18 |
| Diameter of forming rollers shafts |
75mm |
| Roll Forming Speed |
10-15m/min |
| Production Speed |
4-6m/min |
| Forming rollers material |
Gcr15 mould steel, with quenched treatment |
| Cutter material |
CR12 mould steel, with quenched treatment |
| Controlling system |
PLC and Converter |
| Electric power requirement |
Main motor power: 18.5kw |
| Hydraulic unit motor power: 5.5kw |
| Electric voltage |
According to customers requirement |
