Facsia Formig Machine with cut and control system
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 4000kgs |
| Size | About 6m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.4-0.5mm |
| Coil width | 280mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 2.2kw | |
| Electric voltage | According to customer’s requirement |

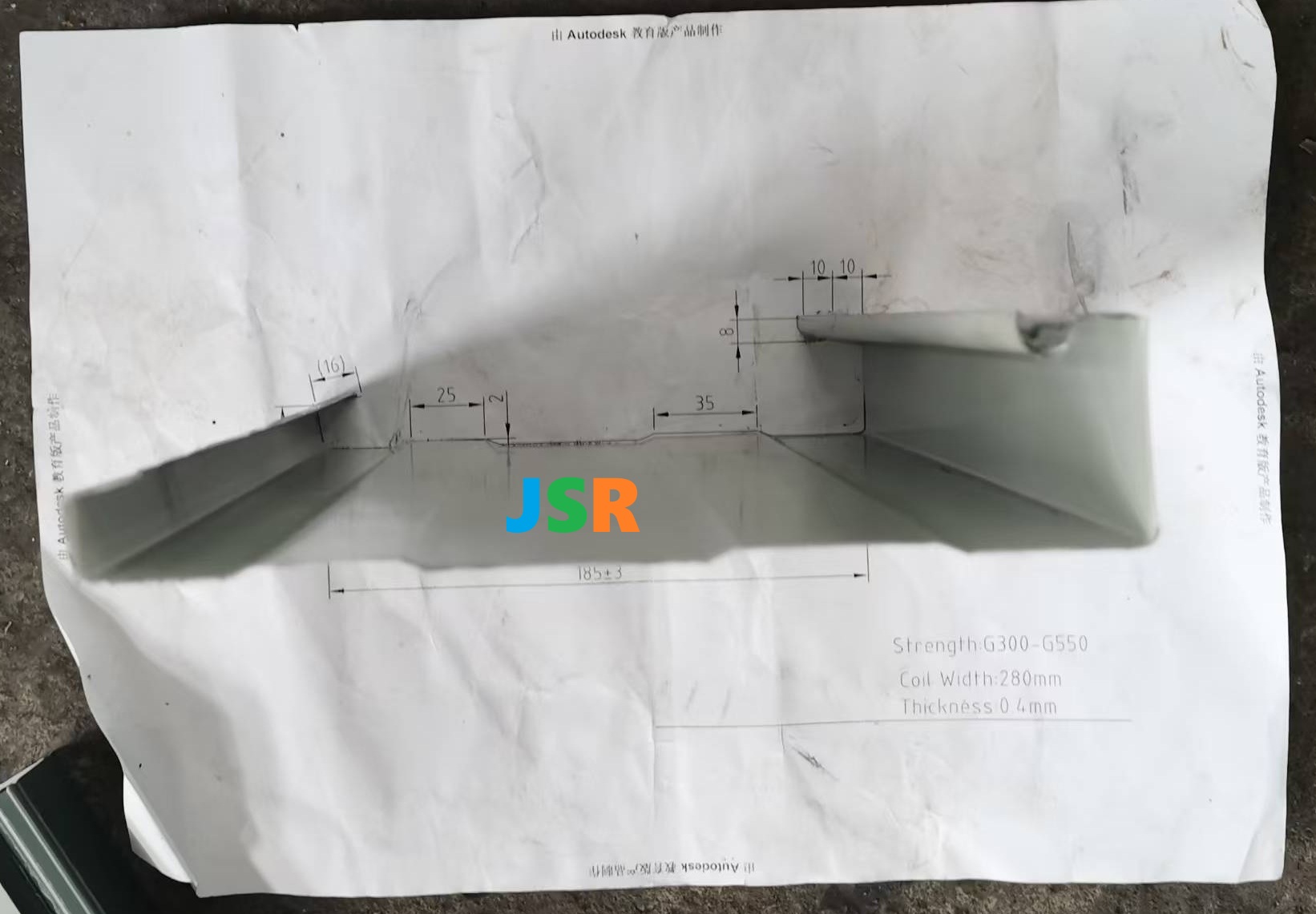

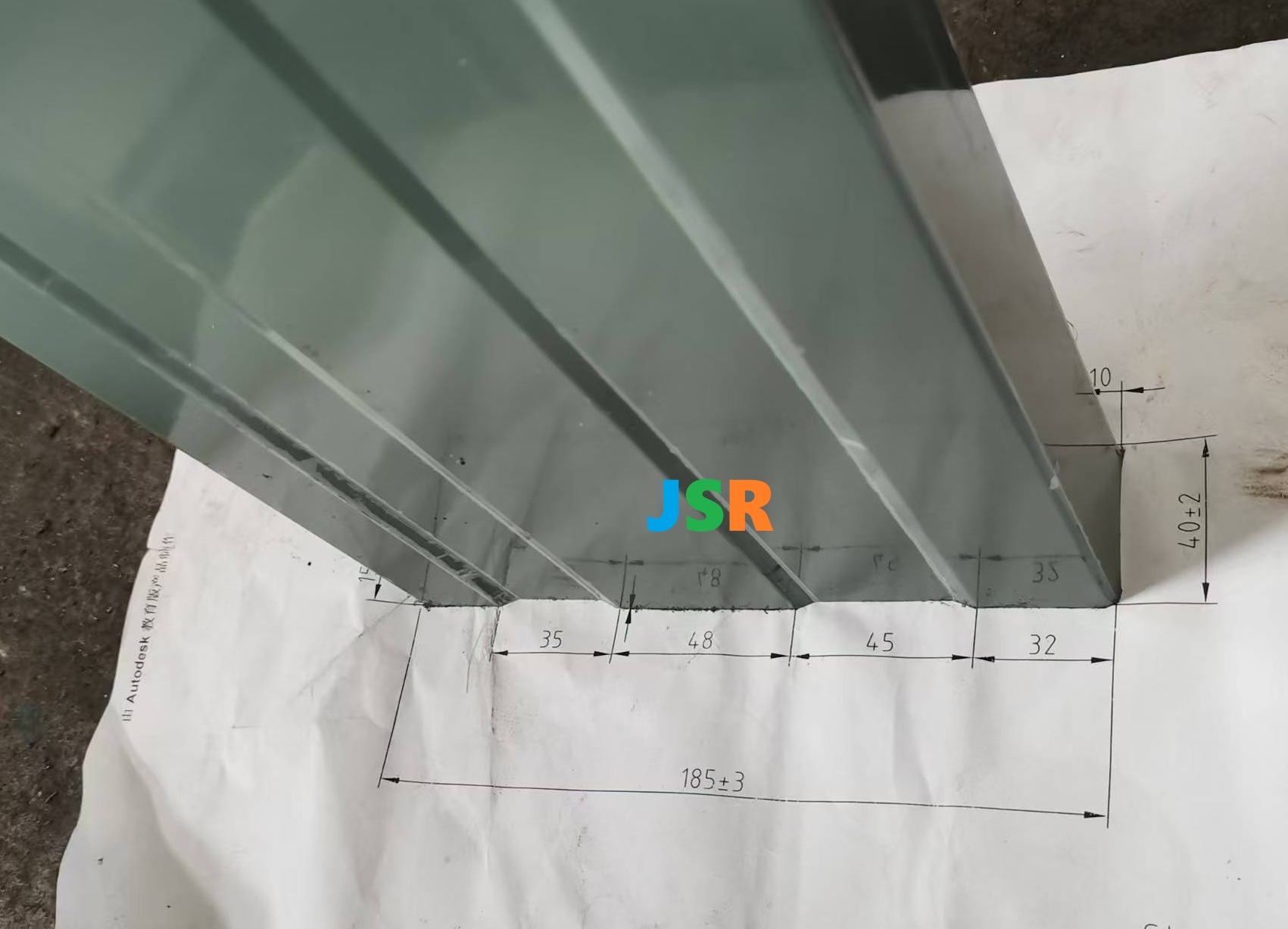

Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.
We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.
Machine work automatically, operate easily.
Decoiler- forming-cut – run out
