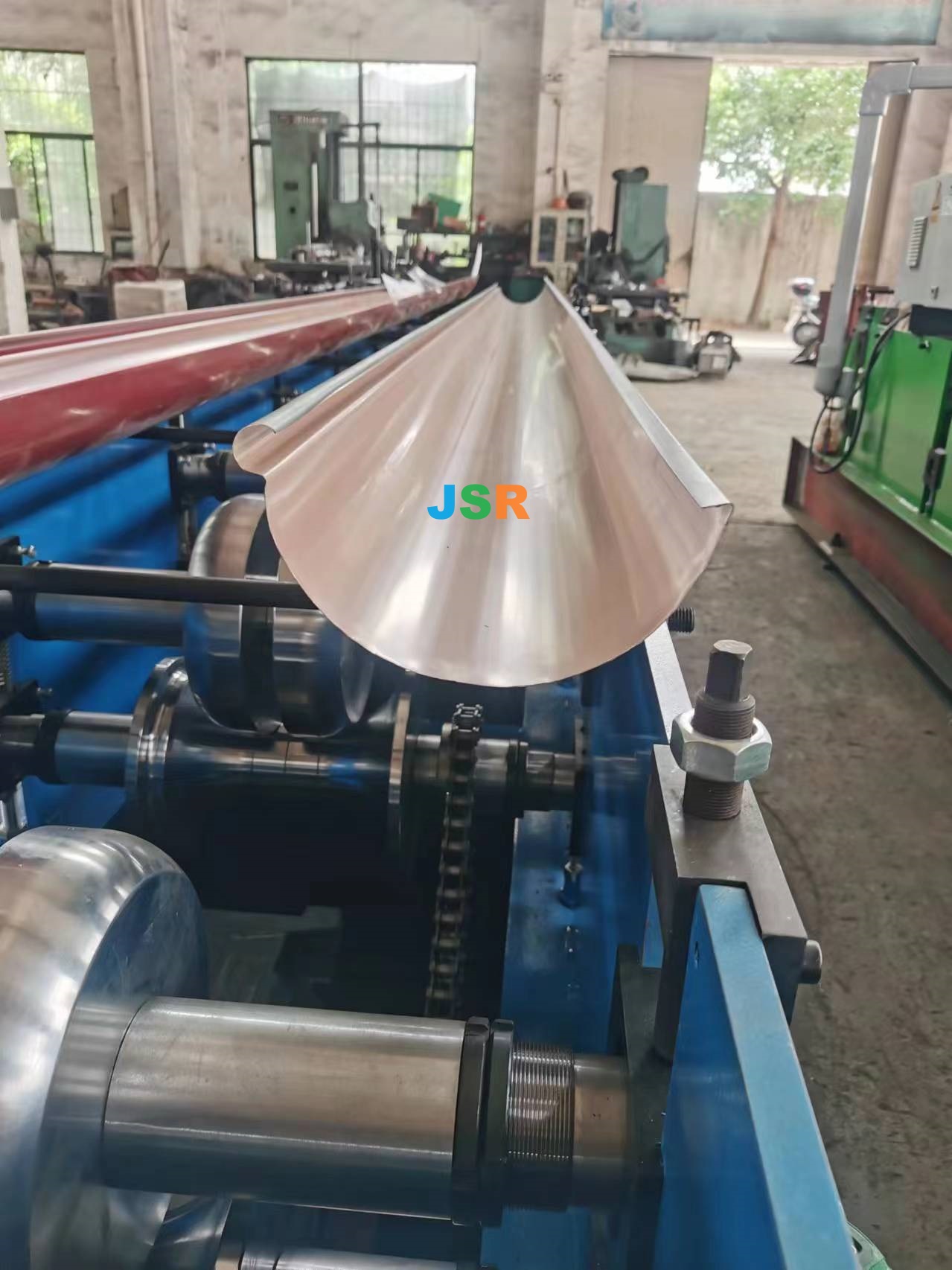

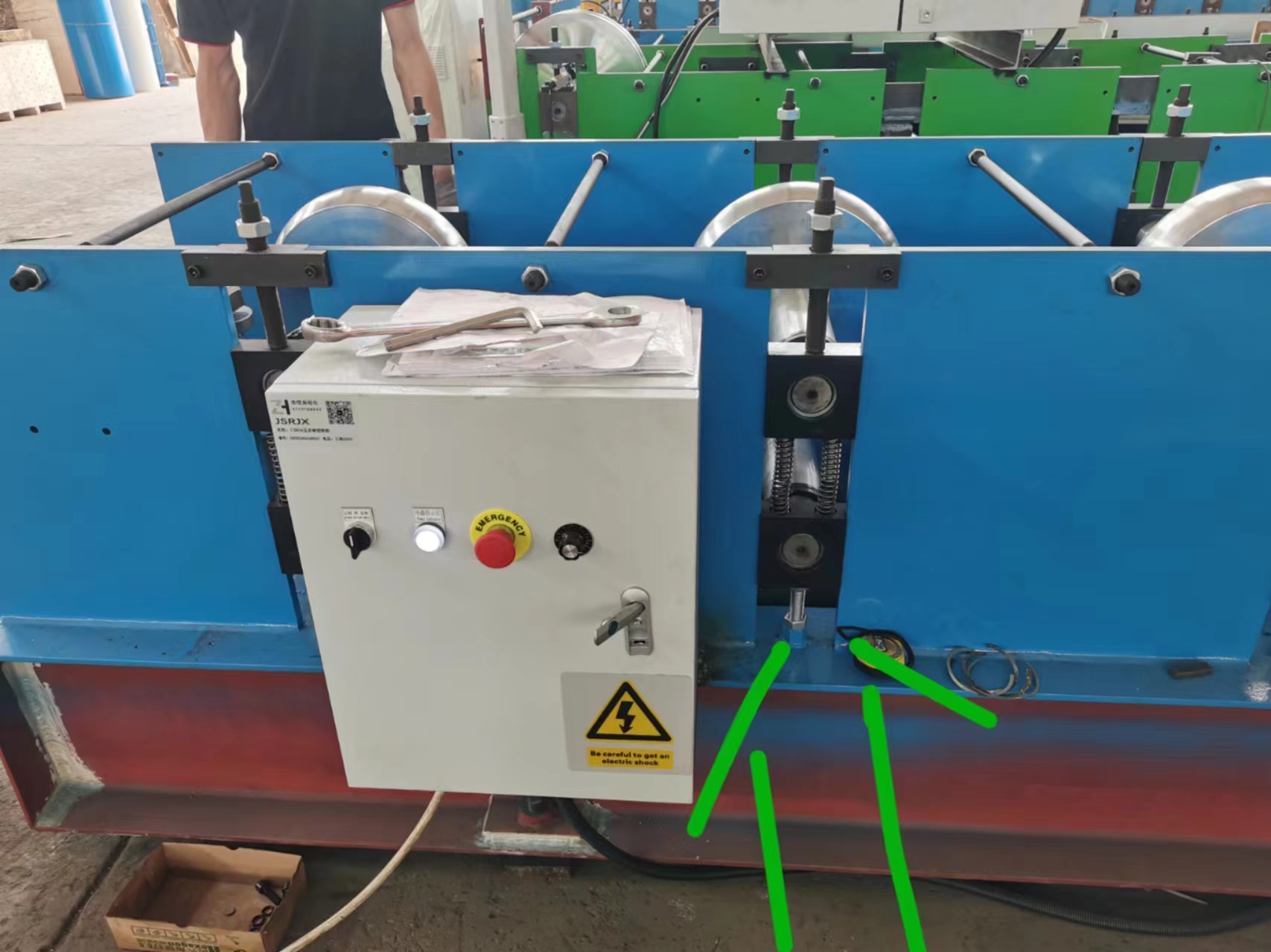

this gutter machine only include 18 roller station, 7.5kw main motor, simple control box and remote control .

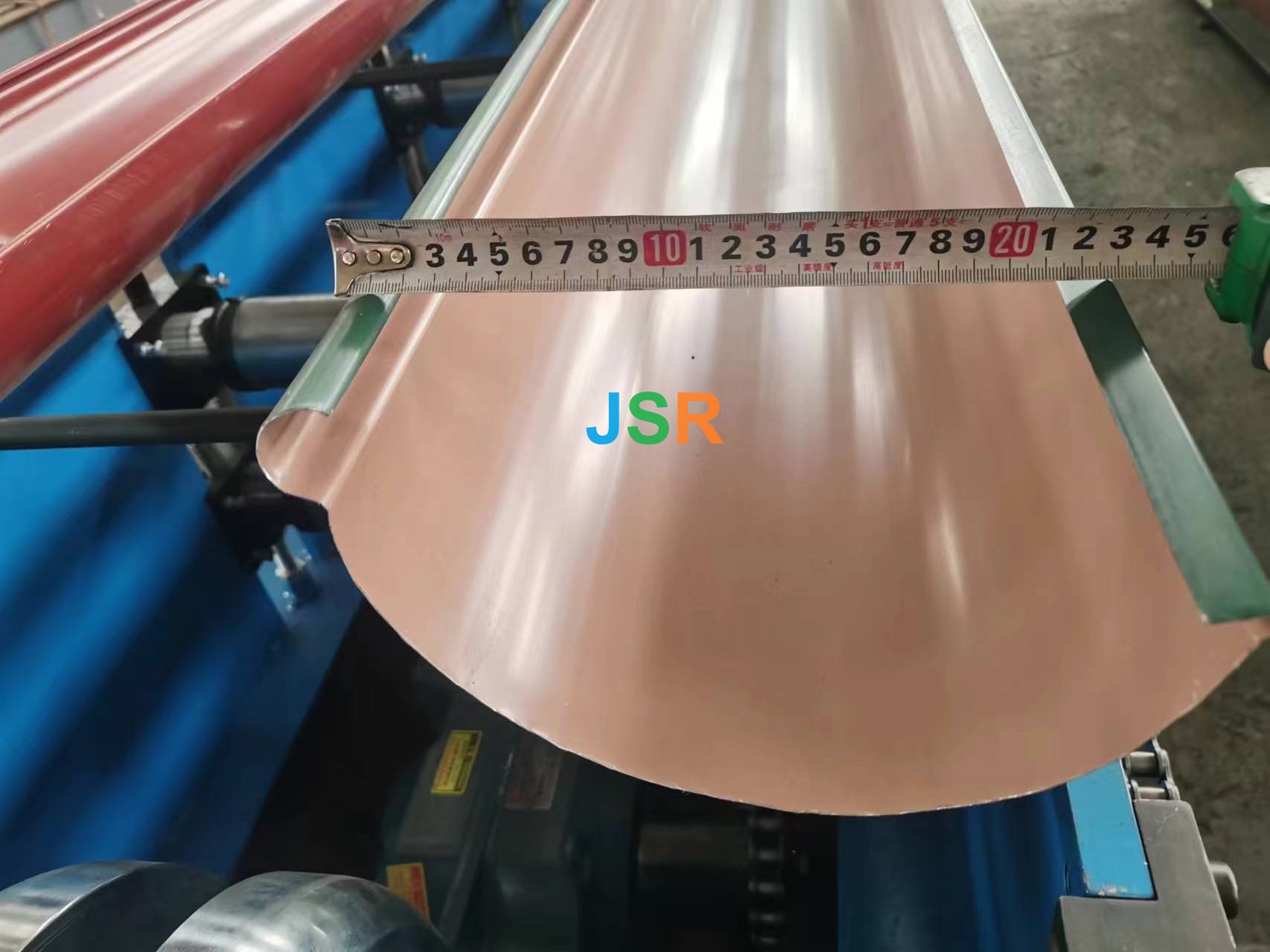

we need feeding in 375mm width pieces into rollers to make gutter.
we can also make machine with cut and control system, you feed in coils, machine automatically work.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 8m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | aluminium |
| Thickness | 0.8mm |

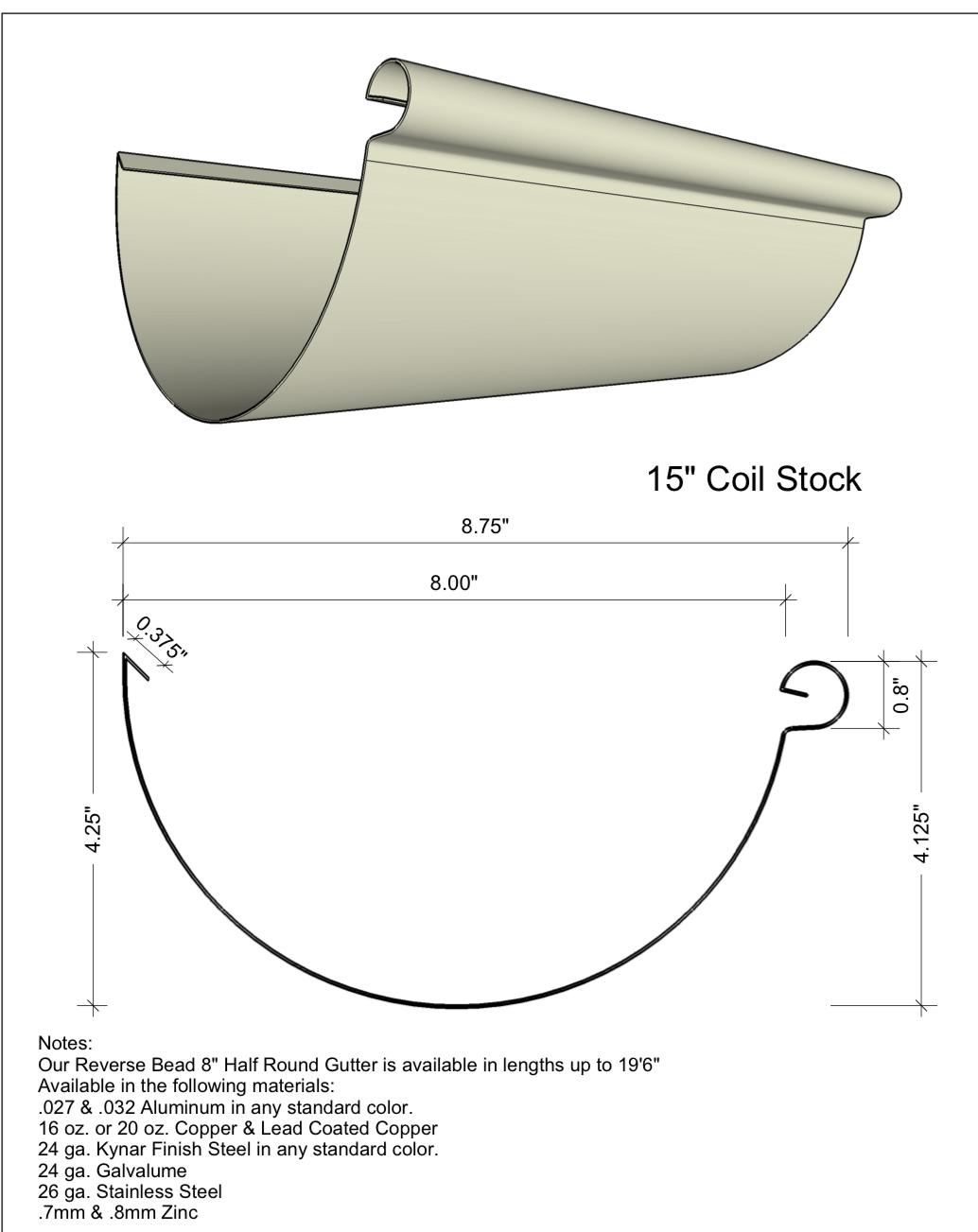

| Coil width | 375mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |

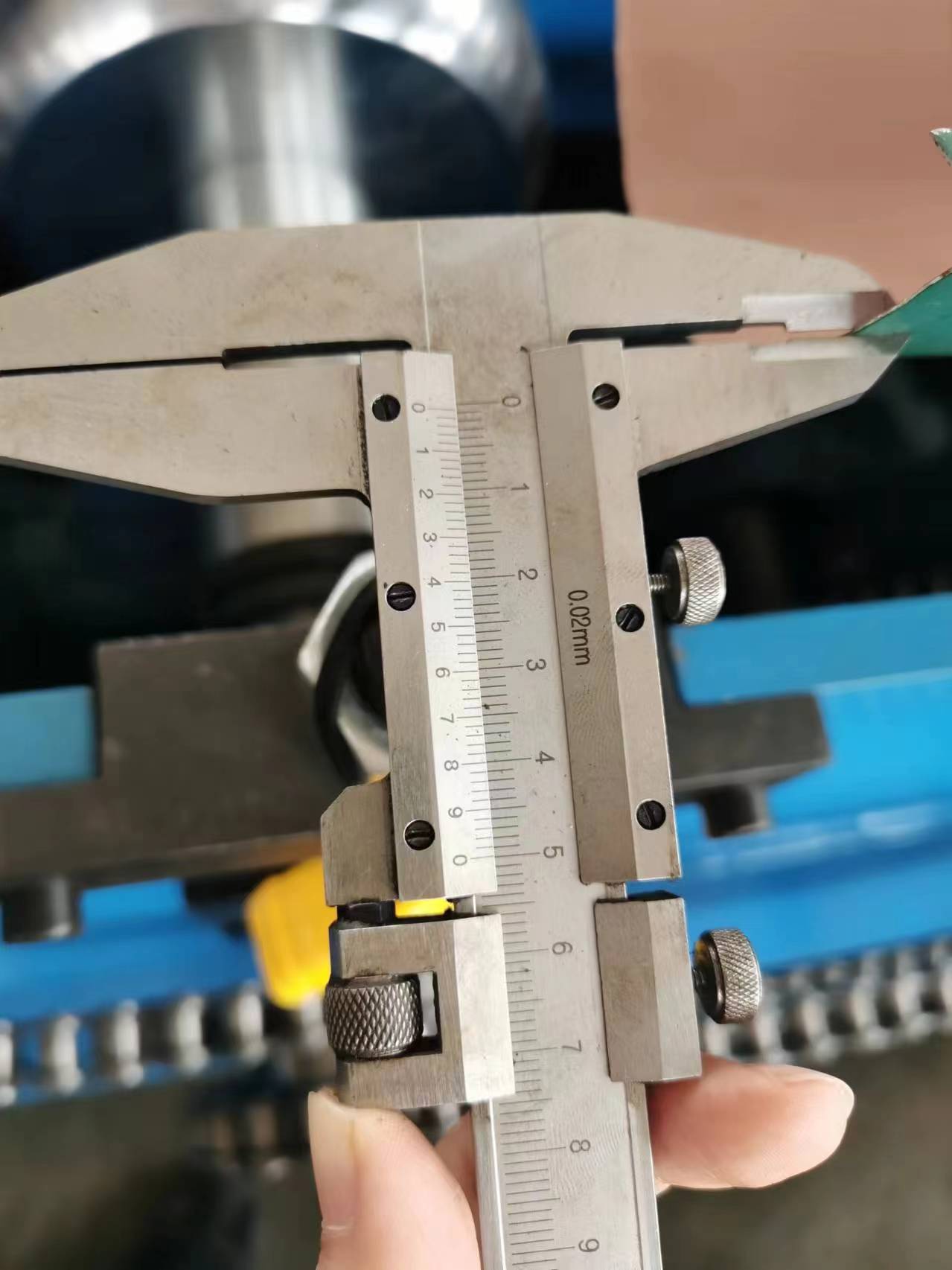

| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| roller station | 18 |
| Electric Power requirement | Main motor power: 7.5kw |
