U Shape Capping Roll Forming Machine

Facebook
Twitter
LinkedIn

Description

U Shape Capping forming machine made to Australia,We manufacture a U-shape capping which runs up each side and across the top to frame the panel

A Fence System That Changes Everything
The FenceTrac rail privacy fence system has completely revolutionized what it means to build a privacy fence.

Steel fencing is extremely popular today as it is a versatile form of fencing that can be used for a variety of purposes, from decorative additions to a garden or providing privacy and security for a home or business.

Steel fence panels advantages:

1. don’t need a touch up every year with weather resistant varnish to make sure they don’t rot,

2. don’t get knocked down easily in a storm and they are a sturdy boundary security solution.

3.extremely cost effective as don’t require gravel boards to sit on,

4. go directly into the ground due to the galvanised material.

all the advantage make steel fencing so low maintenance that more and more people are choosing to use steel fancing.

To make  such fance, besides of U Shape Capping Roll Forming Machine, we also need steel panel forming machines.



Specifications

Technical Details

Machine Specifications
WeightAbout 3500kgs
SizeAbout 6m x 1.6m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialGalvanized Steel Coils
Thickness0.8-1.2mm
Yield Strength550Mpa
Main Technical Parameters
Quantity of forming rollers stations12-14
Diameter of forming rollers shafts60mm
Roll Forming Speed15-20m/min
Forming rollers materialGCR15 steel , with quench treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 5.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement

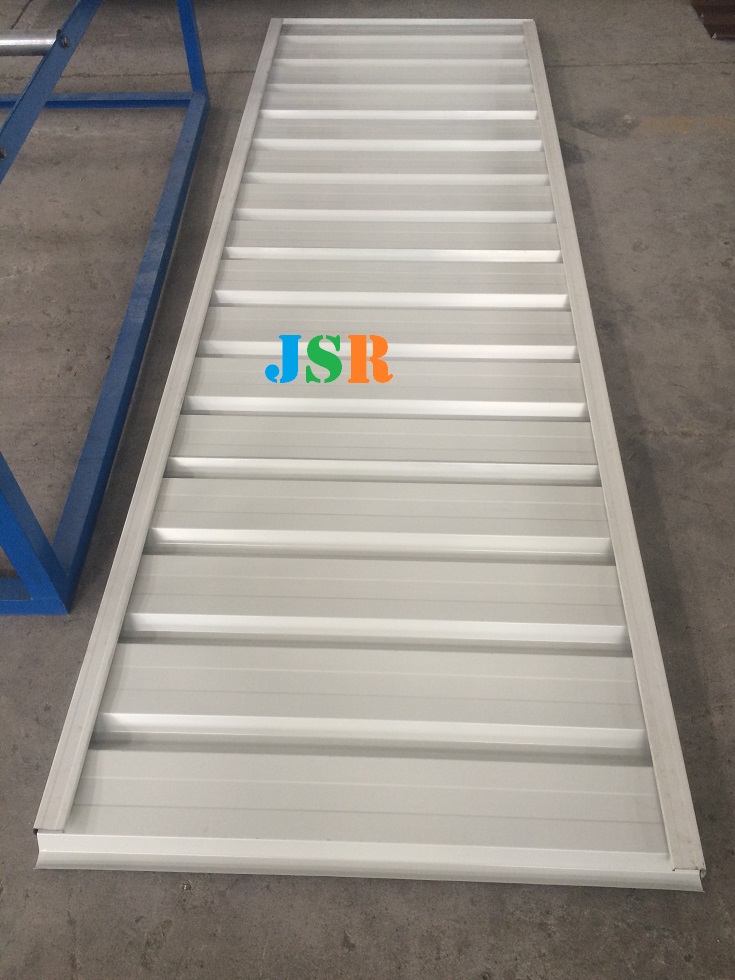

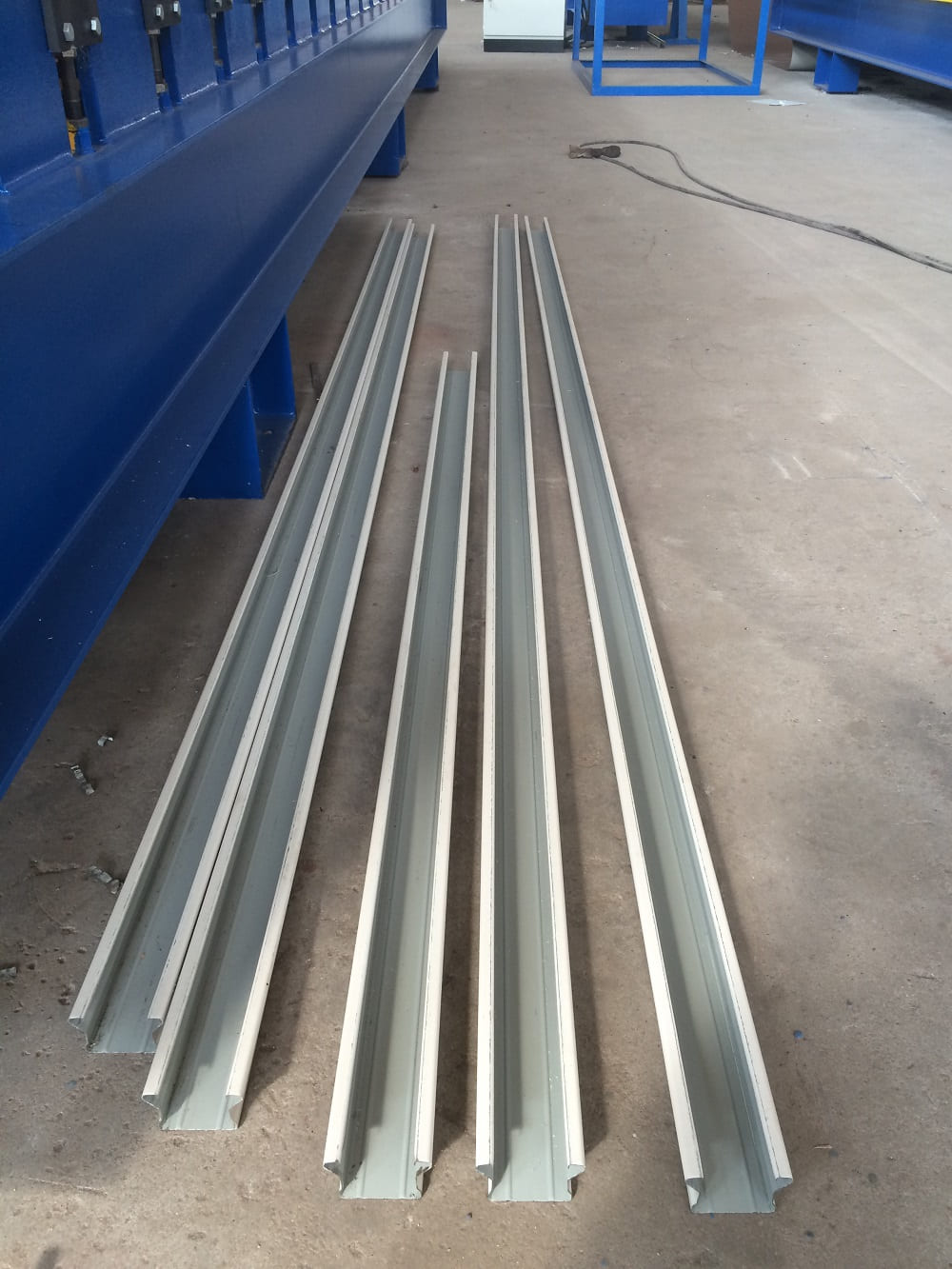

  • End products view

Fancing Post Roll Forming Machine

Fancing Post Roll Forming Machine

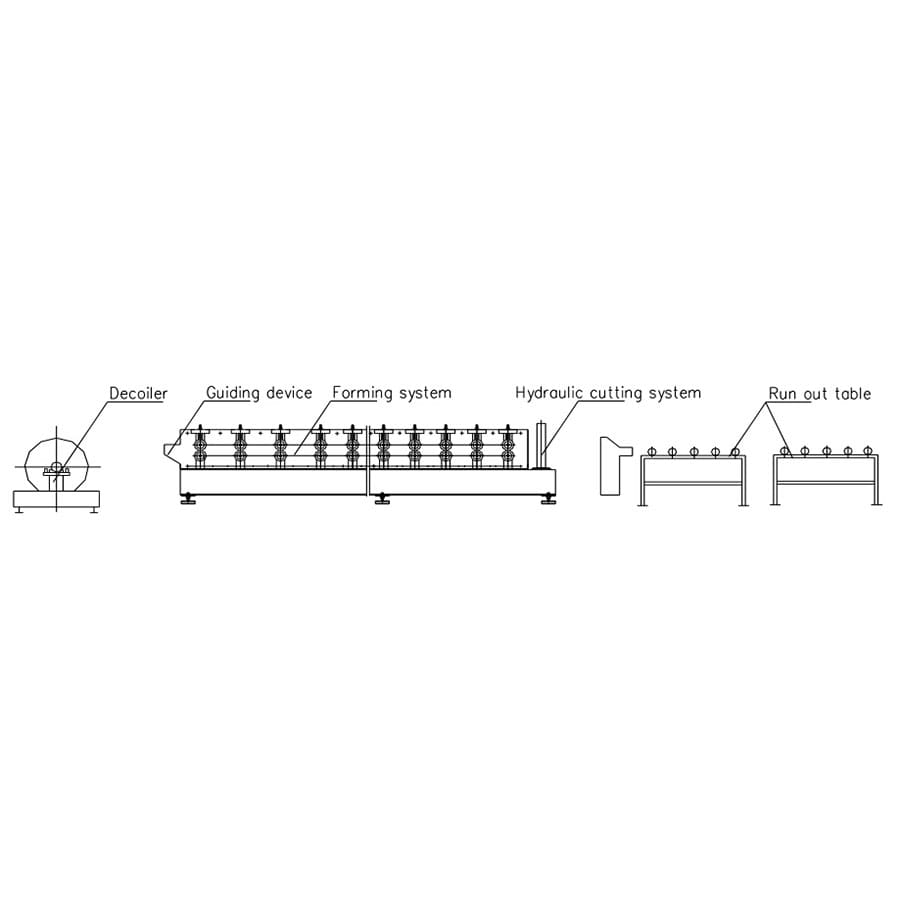

Layout drawing of machine for reference
