Teardrop pallet rack beams roll forming machine make size from 4inch to 6 inch, automatically change width, change height size by change spacer between rollers(3 stations)

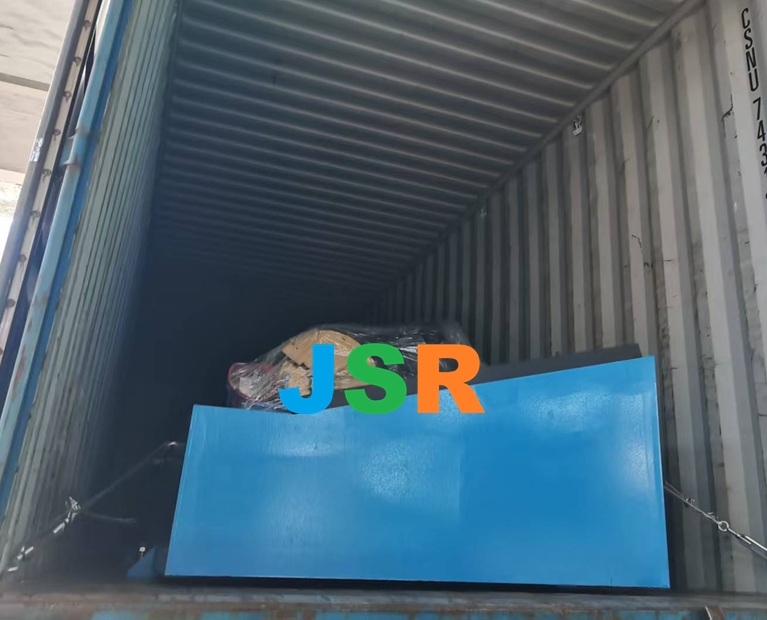

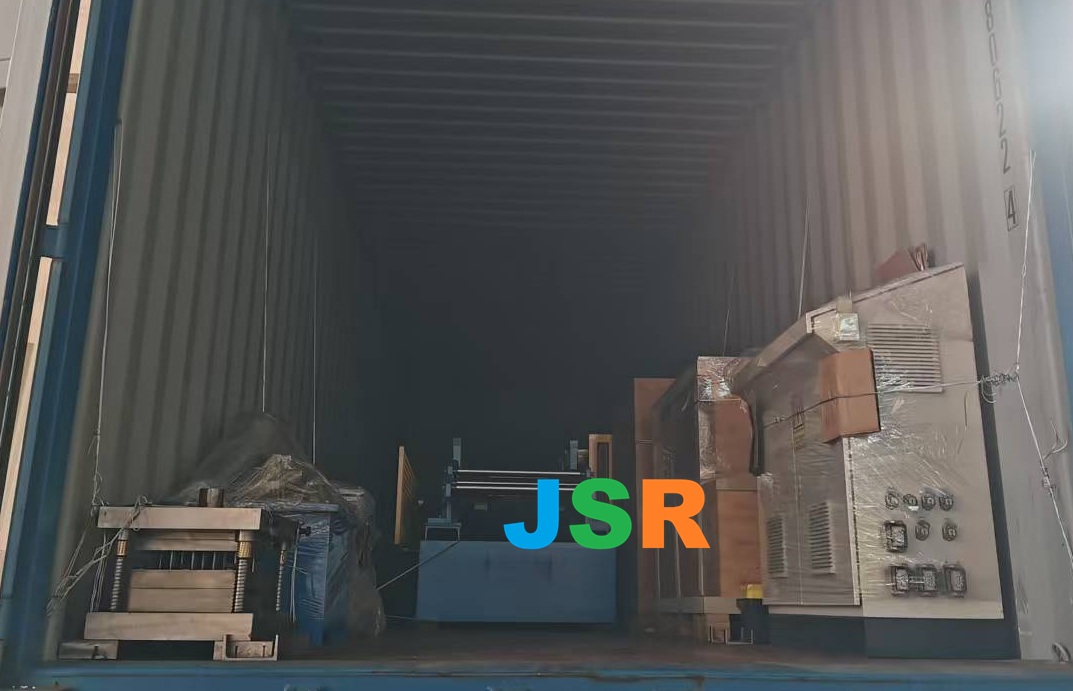

machine load into two 40Gp and one 20GP, Dec.29,2025
Machine length about 25m, weight about 23ton.
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 20000kgs |
| machine size | About 24m x 1.6m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 1.9mm |
| Coil width | 310mm for 4 inch |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about11kw |
| saw cut motor power: about 11kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Roll Forming system | 1 set |
| saw cut | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| laser welding | 1 set |
