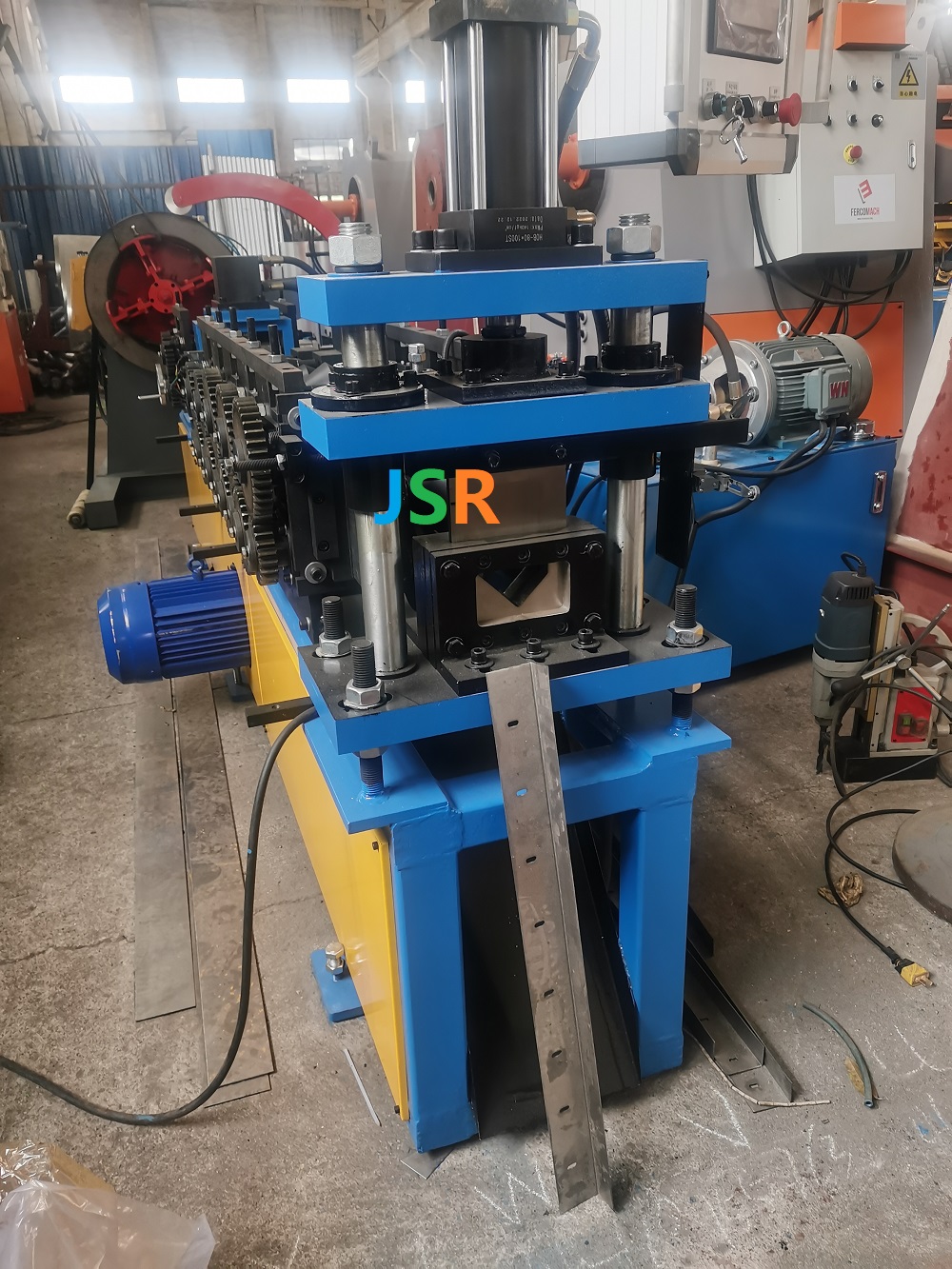

metal stud profile and track profile used as drywall framing system, besides, metal profiles also include furring channel or omega profile, angle channel

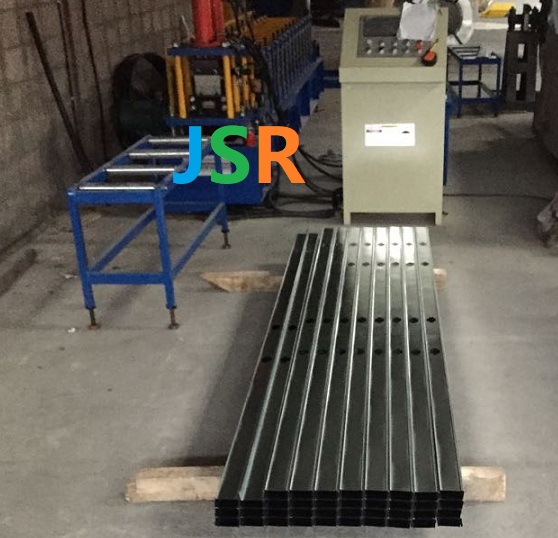

the same machine make stud 5-30-65-30-5 by feeding 130mm width materials make track 23-65-23 by feeding108mm equipped with servo motor.tolerance less than1mm. more accurate than usual motor
Suitable raw material for stud and track roll former
1 ) Suitable Raw Materials: galvanized steel sheet
2 ) Coil Width: 130mm width to make stud, 108 mm width to make track
2 ) Suitable Coil Thickness: 0.3mm -0.8mm
4) Yield strength of raw material: 235-345Mpa
Main parameters of metal stud and track roll forming machine
1) Forming Speed: 0-20m/min. (excluding the cutting time)
2) Main Motor Power: 4KW (Depend on final design)
3) Hydraulic Station Power: 3KW (Depend on final design)
4) Control System: siemens PLC and yaskawa converter
5) Encoder: Nemicon (Japan)
6) Rollers’ material No.45 steel plated with hard chrome
7) Shaft diameter 55mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 460V/3Phase/60HZ(oraccording to customer)
10) Total Weight: About 4500 Kg
Main components of drywall forming machine
(1) Manual decoiler 1 set（Capacity : 3 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic punch and Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
