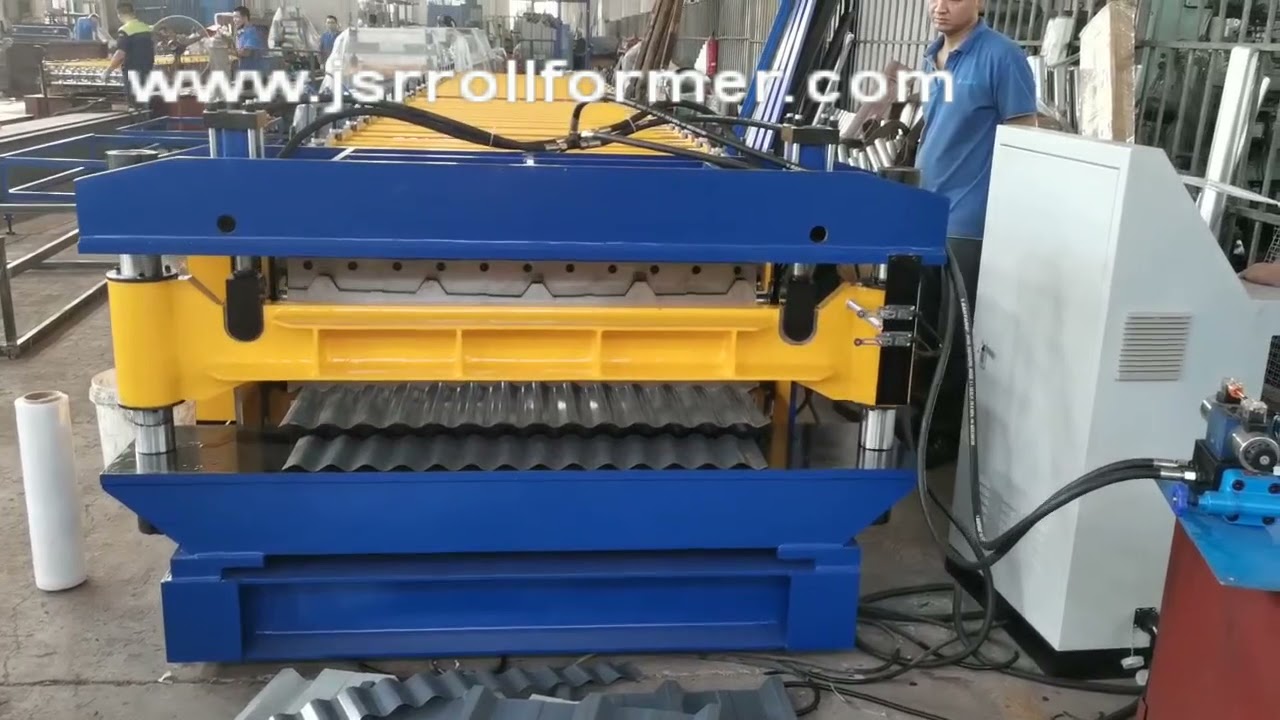

This Cameroon customer buy our double layer machine for IBR sheet and corrugate sheet, and steptile machine.

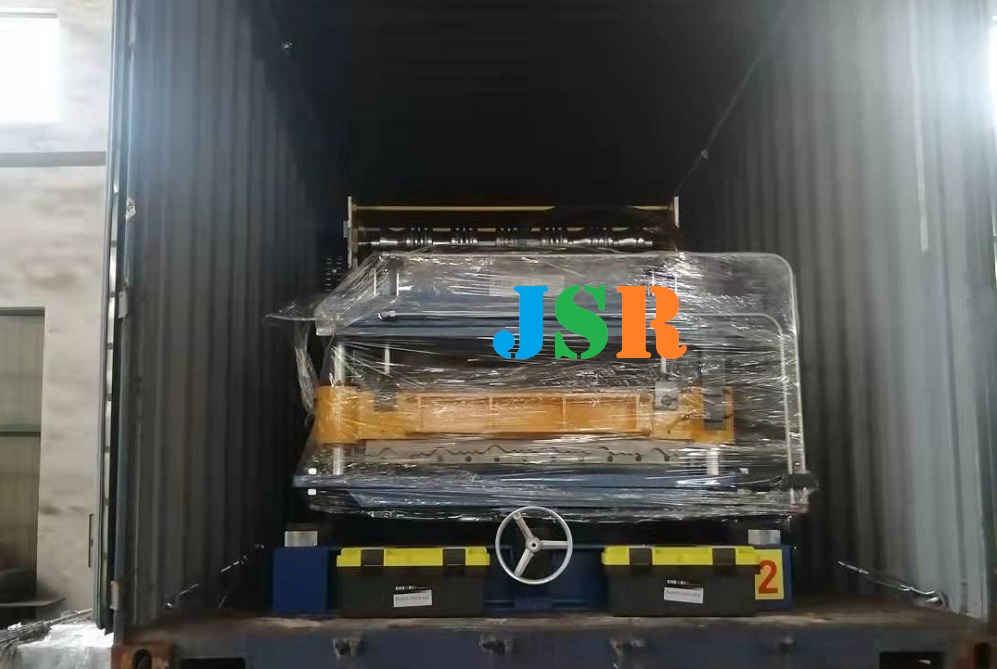

we delivery two forming machines into two 40 feet container Sep.25,2021
corrugate forming machine and IBR forming machine is popular in south africa and near by countries.
while some customer buy one forming machine for IBR sheets , one forming machine for Corrugate sheets with 5 ton hydraulic decoiler, such as customer from Togo.
IBR sheet machine for hard material 550mpa
corrugate sheet machine, for hard and thin material, thickness 0.2-0.3 mm,550mpa
5 ton hydraulic decoiler and loading car
Suiting raw material for IBR machines and corrugate machines
1 ) Coil Width: 925mm
2 ) Suitable Coil Thickness: 0.3mm -0.7 mm
3 ) Suitable Raw Materials: galvanized steel sheet
4) Yield strength of raw material: 550Mpa
Main parameters of IBR forming machines and corrugate forming machines
1) Forming Speed: Max. About 25m/min. (excluding the cutting time)
2) Main Motor Power: 7.5KW (Depend on final design)
3) Hydraulic Station Power: 3KW (Depend on final design)
4) Control System: Mitsubishi or SIEMENS PLC and transducer
5) Encoder: Nemicon (Japan)
6) Rollers’ material High grade No.45 forged steel, with digital-controlled procession,
plated with chrome on surface.
7) Shaft diameter 75mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 380V/3Phase/50HZ(or depend on customer)
10) Total Weight: About 8500 Kg of one roll forming machine
Main components of Corrugate sheet making machine and IBR sheet making machine
(1) Manual decoiler 1 set（Capacity : 7 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
