Step beam roll forming machine, rack beam forming machine
make 4inch, 4.5 inch, 5 inch and 6 inch beam.
here is machine make 6 inch stepbeam
how to change machine from 6 inch to 4 inch.
include 3 ton manual decoiler, forming machine with non stop saw cutting, plc controller, 3kw laser welding
siemens PLC and touch screen, yaskawa converter, working speed about 4m/min.
continuous welding
how to set up stepbeam machine
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 10000kgs |
| Whole line’s dimension | About 25m x 2m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 1.9mm |
| Coil width | 310mm for 4 inch |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24 |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about11kw |
| saw cut motor power: about 3kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Roll Forming system | 1 set |
| saw cut | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |

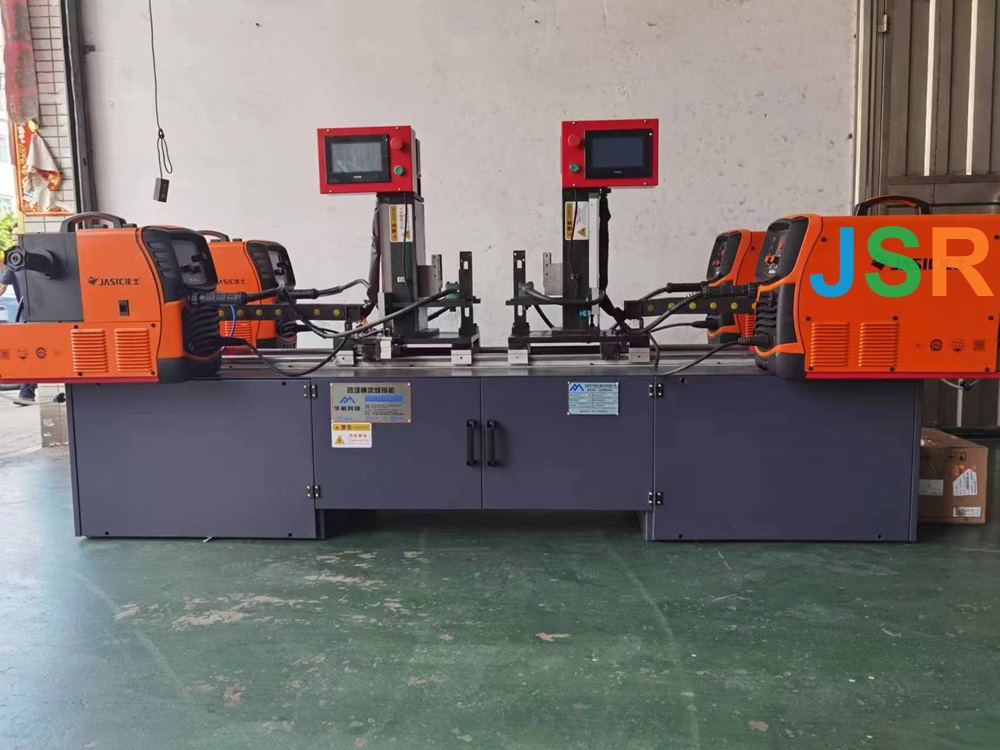

| laser welding | 1 set |
