Roofing roll forming machines work Sri Lanka

Facebook
Twitter
LinkedIn

Description

This is Sri Lanka customer bought our roofing sheet machine in 2018, he visit our factory before that order.

2020, when he need more machines, he also buy from our machines, because he is satisfied with first machine,

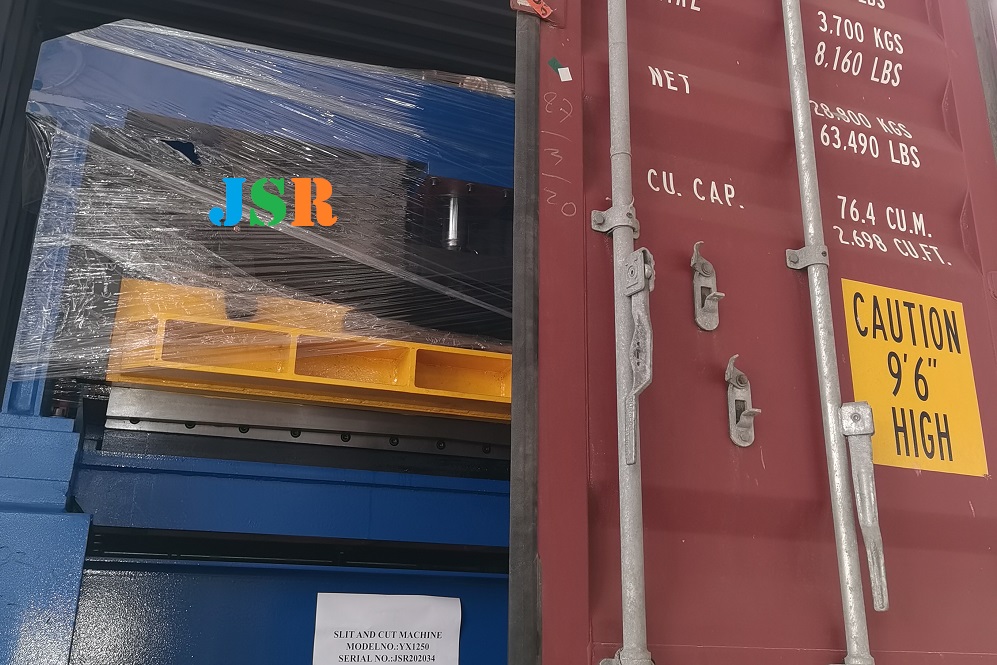

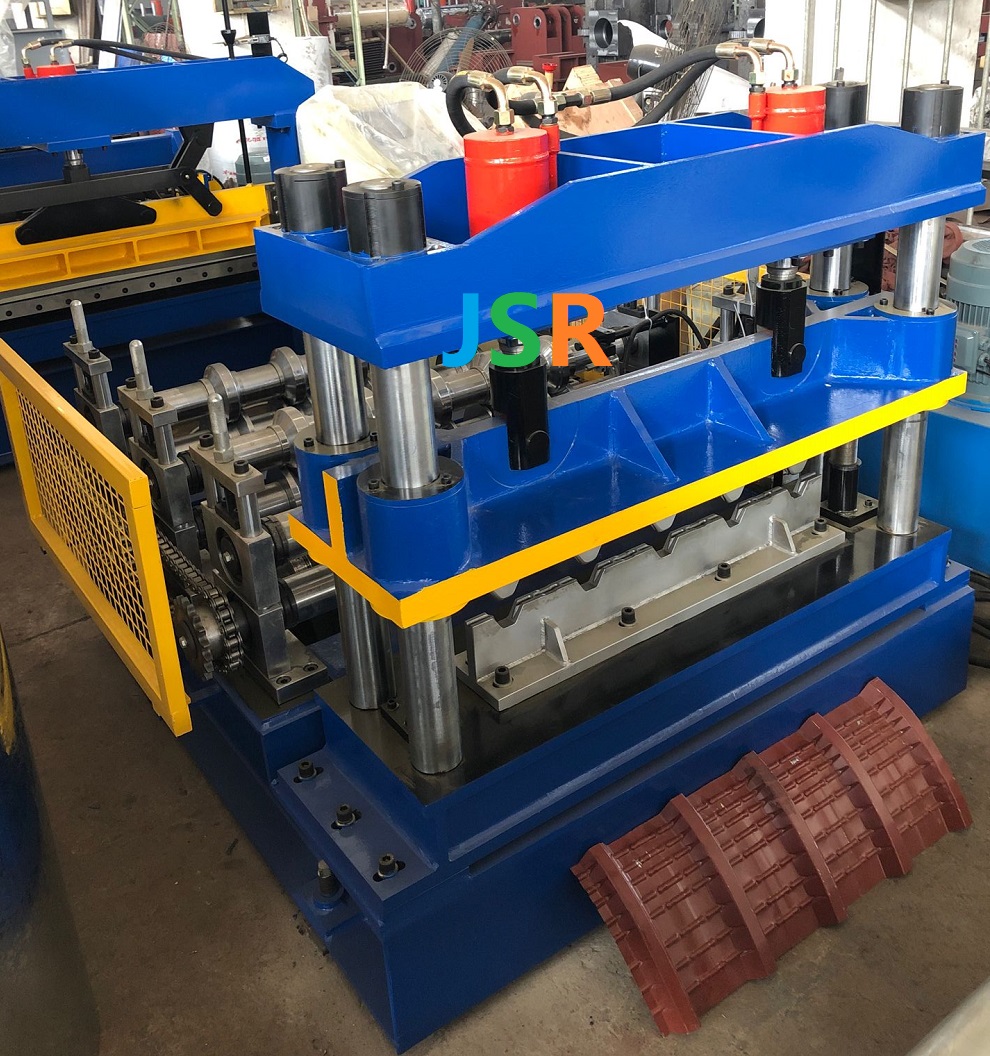

four machines, include crimping machine , which work with first roofing machine,

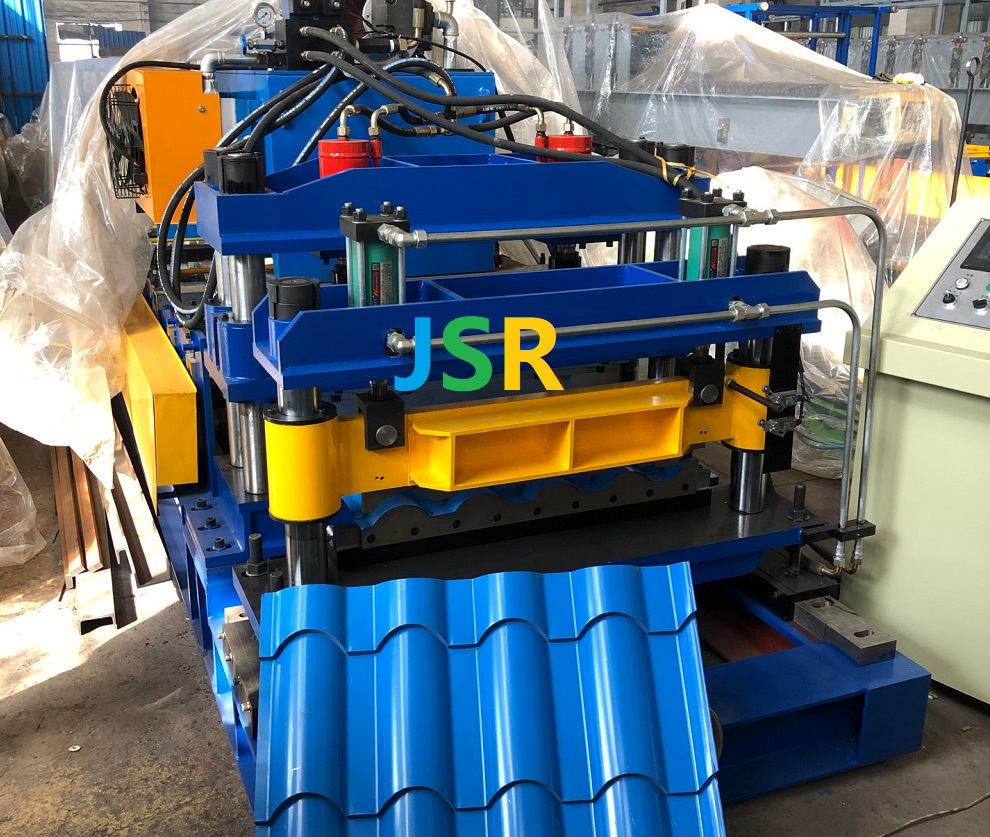

step tile forming machine, new design roofing forming machine and slit and cut forming machine.

he is very happy with our machines.

we hope to make your machines soon, you will be happy with our machines too.

www.jsrrollformer.com

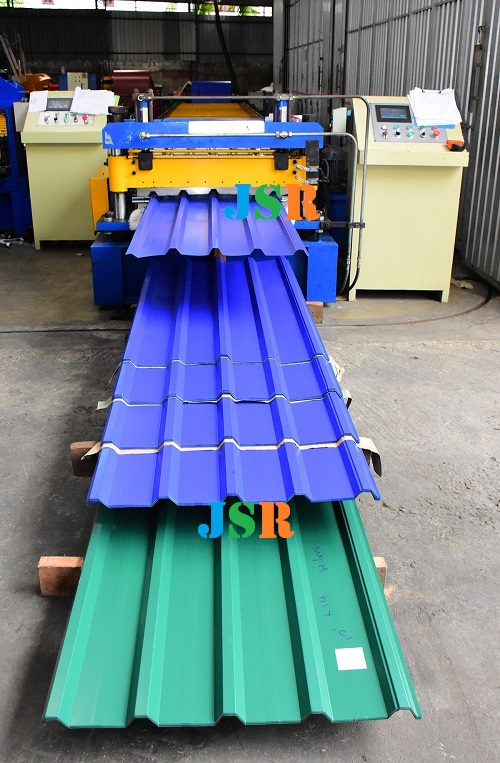

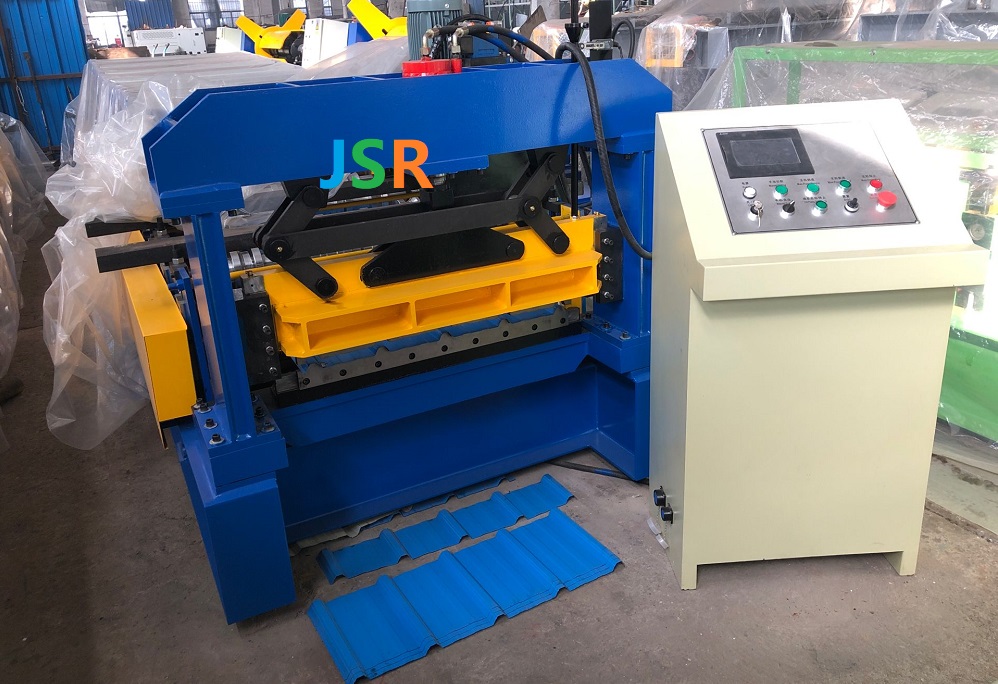

hi-ten roofing sheet forming machine make popular roofing profile in sri lanka, special roofing design suitable for commercial buildings and houses

hi-ten roofing made of high tensile steel , so roofing profile is strong and light weight.

the 762mm  width cover makes quicker installation , both save material and labour.

dip ribs require less support purlin but more water carry capicity



Glamour roofing machine, glamour tile also popular in sri lanka

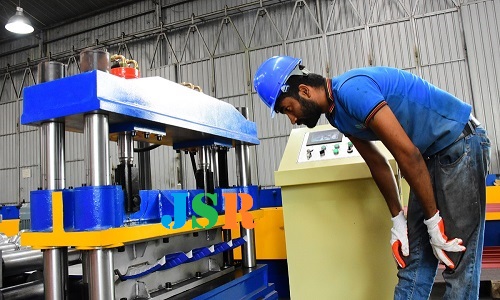

machine make curved roofing

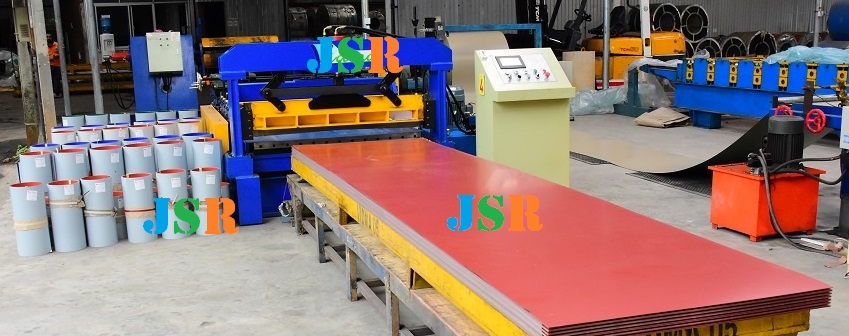

machine slit steel width , and cut steel length for thickness less than 1mm

it is important machine for construction material retailer to sell small steel coil or plates.

besides roofing machines, we also have gutters roll forming machines, many factory in sri lanka use bending machine to make gutters, which prodoction efficiency is very low, and take time and labor, our gutter machines are automatically to make any length. and your gutter machine can be designed and quoted here.

YouTube player



Specifications



Main parameters of roll forming machine



1) Control System:                       Siemens or Mitsubishi PLC and transducer (Japan)

2) Encoder:                                   Nemicon (Japan)

3) Rollers’ material                    High grade No.45 forged steel, with digital-controlled procession,

plated with chrome on surface.

4) Shaft diameter                     75mm, tooled by grinding machine for two times

to ensure the precision of final product.

5) Type of Cutting:                   Length-set cutting and post forming style

6) Electric Condition:                380V/3Phase/50HZ(or depend on customer)

7) Total Weight:                       About 10000 Kg



Main components of roll forming machine

(1) Manual decoiler                              1 set(Capacity : 7 tons)

(2) Roll-Forming M/C                          1 set

(3) Hydraulic Cutting                            1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) Product Rack (un-powered)            1 set
