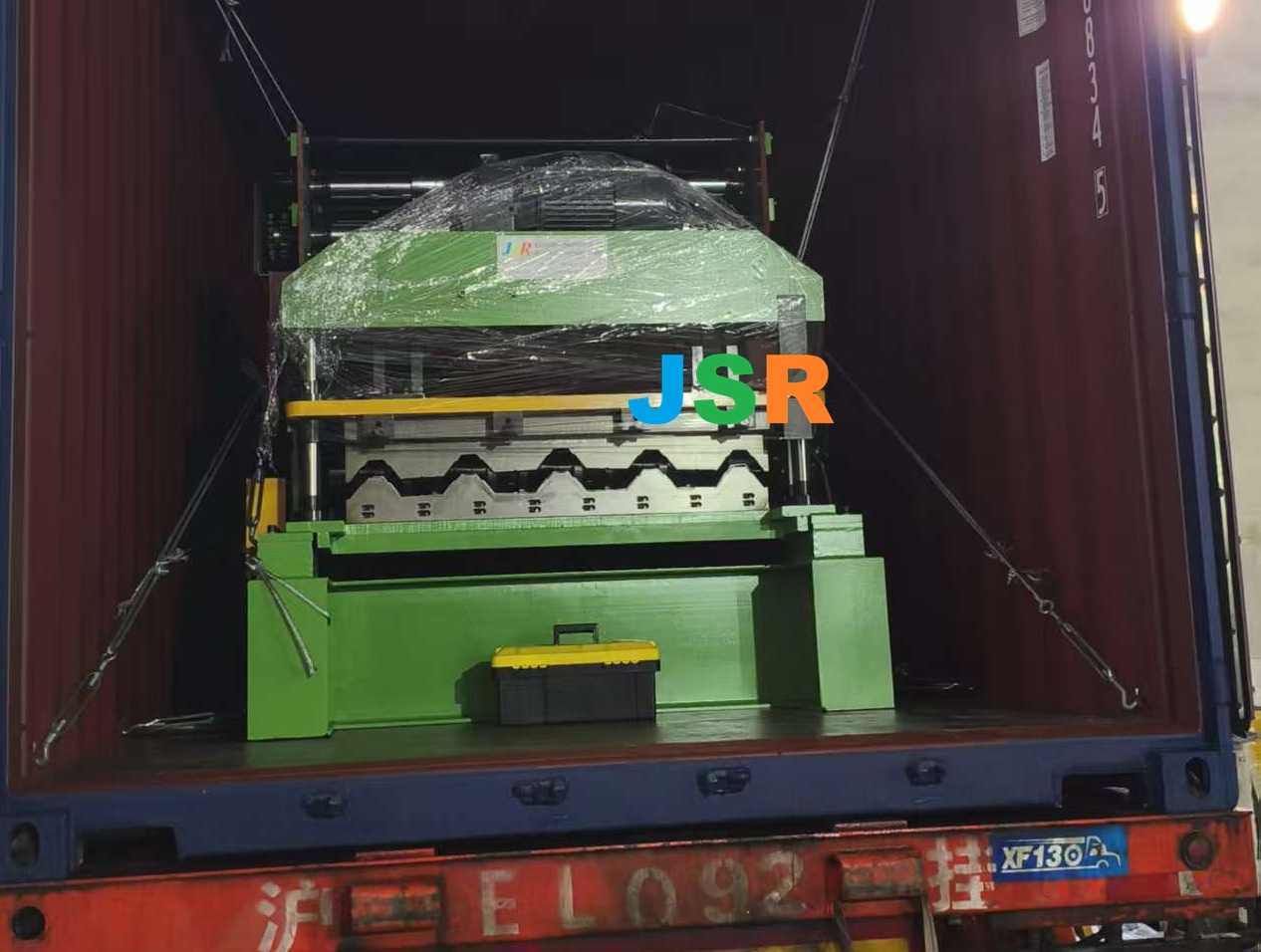

CORRUGATED SHEET PK-57 production delivery to Ukrain into 40HC Jan.27, 2026
Profile sheet H 57 is a roofing sheet with a profile height of 57 mm
usually we use hydraulic motor power to cut, this machine is electric motor power to cut
machine summary
siemens PLC and screen, yaskawa converter .
main motor power 11kw X2
electric cut power4kw
25 roller stations.
85mm diameter solid shaft.
suitable for one 40 GP loading.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 12000kgs |
| Size | About 15m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: green |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.5-1mm |
| Coil width | 1250mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 25 |
| Diameter of forming rollers shafts | 85mm |
| Roll Forming Speed | 20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 11kw X2 |
| electric motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
How to set up profile sheet roll forming equipment
machine is well installed and connected, you only connect local wires
how to operate on PLC controller?
we use siemens touch screen with chinese and english language, your language can be set in if your required, such as spanish , russia
Here is main screen, on this screen, you can loose language.
choose machine manual work or automatical work.
you can make machine move forward or reverse on manual state.
you can monitor machine production, for example, what group is manufacturing, what length is manufacturing now.
you can also set length and piece for automatically work
If sheets length is different with you set length , you just put in both length and press calculation, machine will make correction itself.
