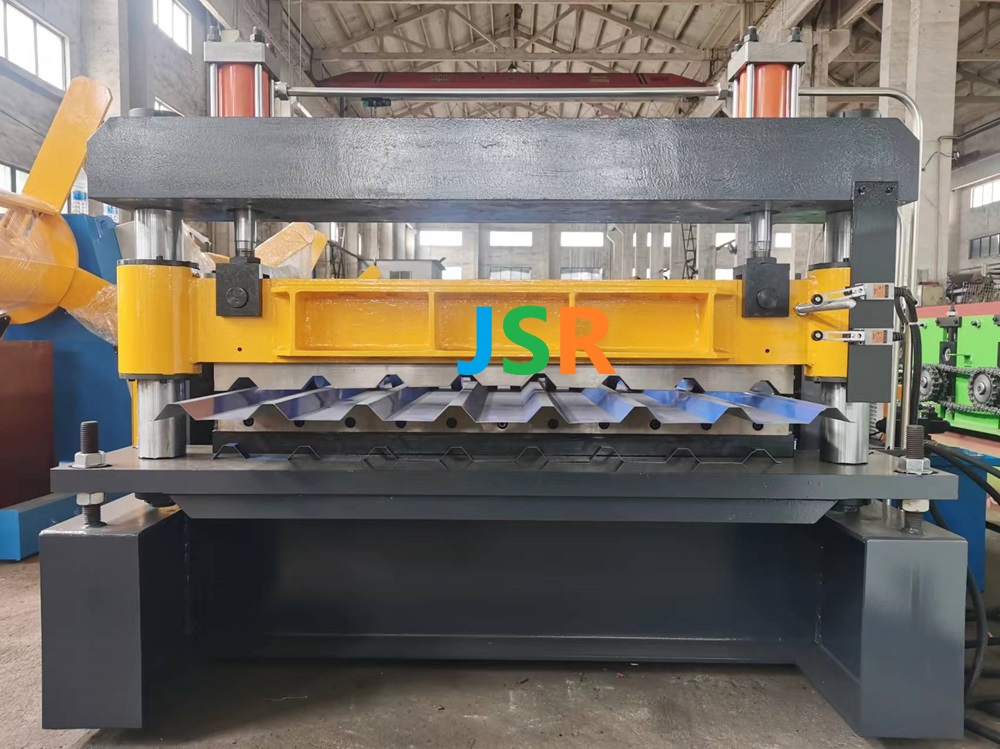

LÁMINA ACANALADA R101 MACHINE TO MEXICO

Suitable raw material for R101 trapezoidal metal sheets roll forming machine

1 ) Suitable Raw Materials: galvanized steel coils. PPGI

2 ) Suitable Coil Thickness:  0.3-0.7mm

3) Yield strength of raw material: 235-345Mpa

Main parameters of trapezoidal sheets roll forming machine

1) Forming Speed:                      25m/min. (excluding the cutting time)

2) Main Motor Power:               7.5KW (Depend on final design)

3) Hydraulic Station Power:        3KW (Depend on final design)

4) Control System:                        siemens PLC and yaskawa converter

5) Encoder:                                   Nemicon (Japan)

6) Rollers’ material                   No.45 steel plated with hard chrome

7) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

8) Type of Cutting:                   Length-set cutting and post forming style

9) Electric Condition:                380V/3Phase/50HZ(oraccording to  customer)

10) Total Weight:                       About 10000 Kg

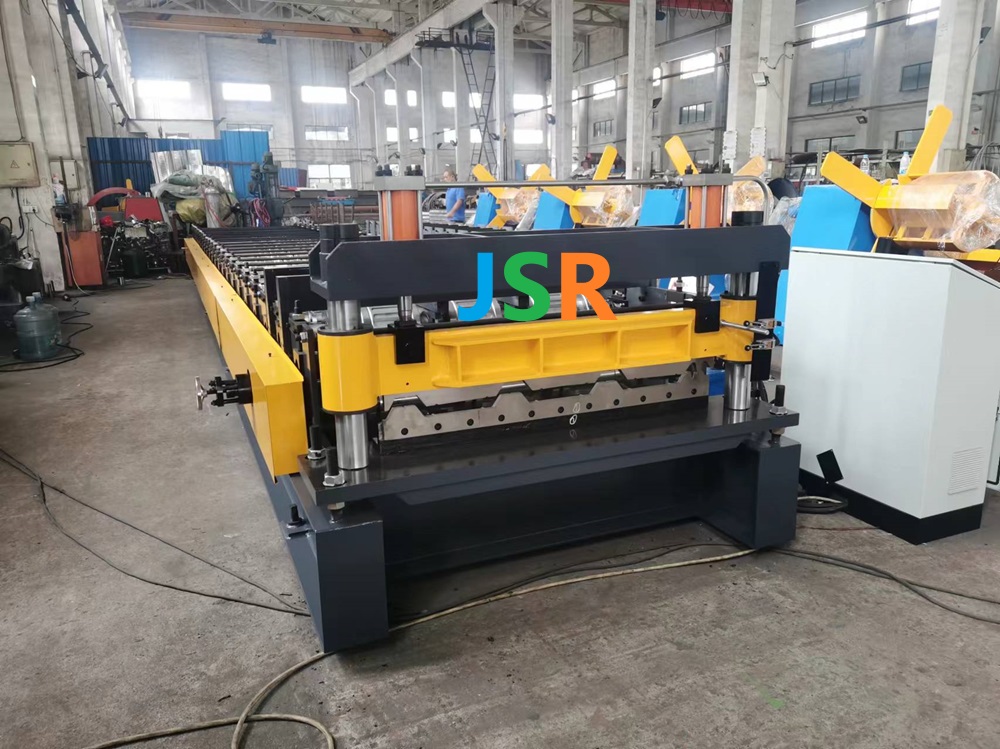

Main components of rn35-100 laminas forming machine

(1) Manual decoiler                              1 set（Capacity : 5 tons）

(2) Roll-Forming M/C                          1 set

(3) Hydraulic  Cutting                         1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) run out table                                     1 set
