New zealand customer visit us 2018, buy L angle roll former.
because of large production requiremnent, he buy another L angle roll former in MARCH, 2023
He visit us again Apr.2023 to check machine manufacture in process.
compared with last machine, new roll forming machine required small size.
we welcome you visit, you will be more confident to our factory.

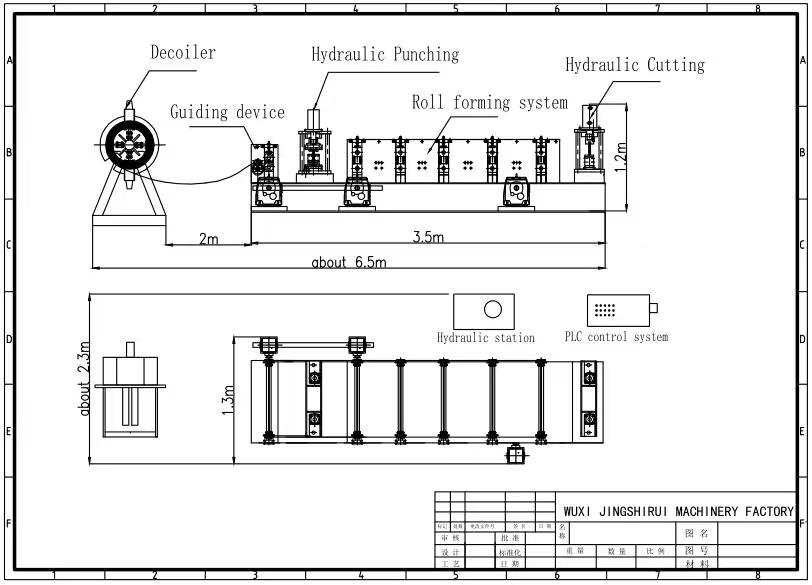

Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 1500kgs |
| Size | About 3m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about5 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | GR15 with quench treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about7.5kw |
| Hydraulic unit motor power: about7.5kw | |
| Electric voltage | According to customer’s requirement |
