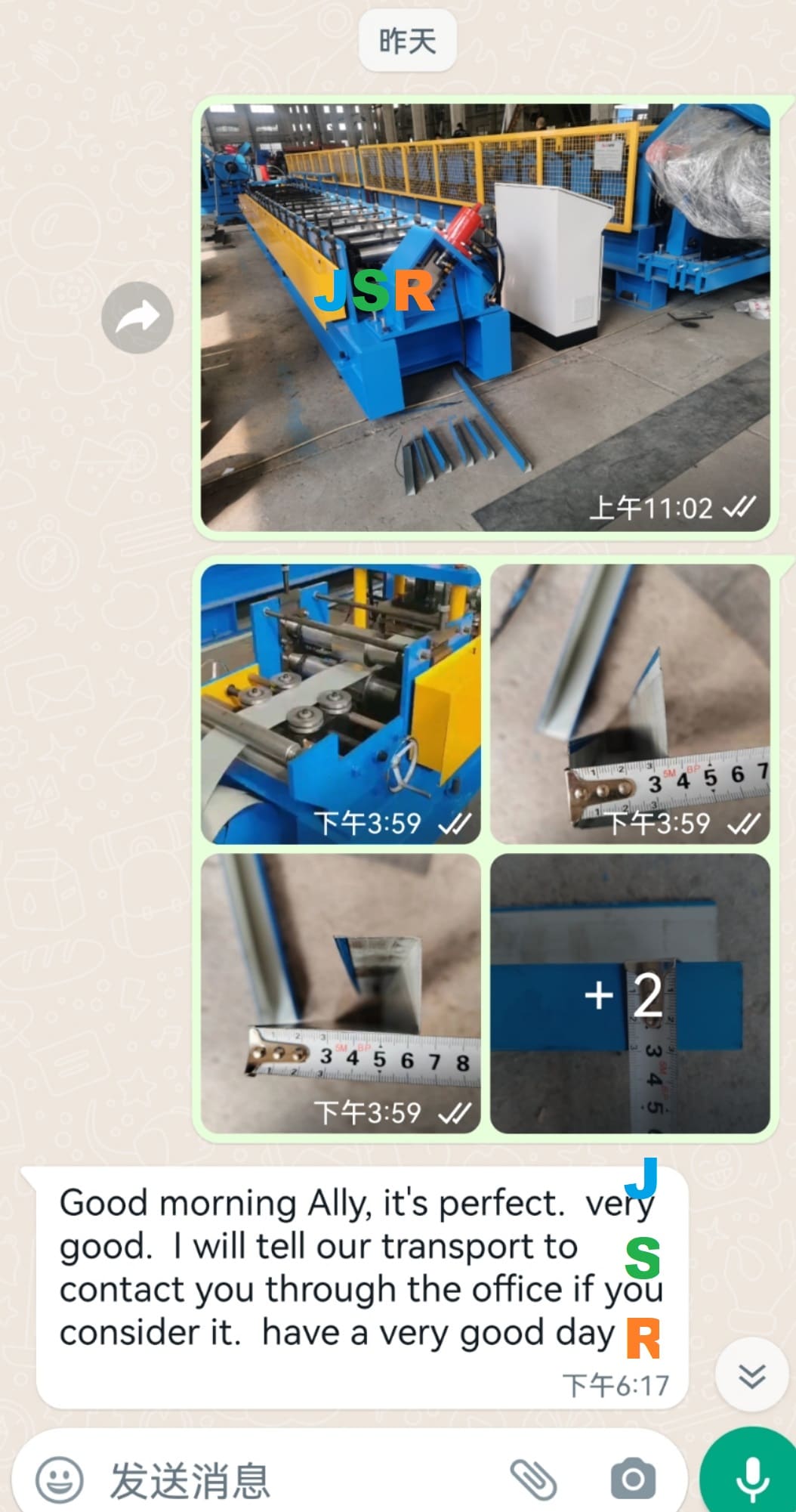

J profile roll forming machine to Argentina

Suitable raw material for J profile roll former

1 ) Suitable Raw Materials: galvanized steel sheet

2 ) Suitable Coil Thickness:  0.3mm -0.8mm

3) Yield strength of raw material: 235-345Mpa

Main parameters of gypsum board j trim profile roll forming machine

1) Forming Speed:                      0-20m/min. (excluding the cutting time)

2) Main Motor Power:               4KW (Depend on final design)

3) Hydraulic Station Power:        3KW (Depend on final design)

4) Control System:                        siemens PLC and yaskawa converter

5) Encoder:                                   Nemicon (Japan)

6) Rollers’ material                   No.45 steel plated with hard chrome

7) Shaft diameter                      55mm, tooled by grinding machine for two times

to ensure the precision of final product.

8) Type of Cutting:                   Length-set cutting and post forming style

9) Electric Condition:                460V/3Phase/60HZ(oraccording to  customer)

10) Total Weight:                       About 4500 Kg

Main components of J bead forming machine

(1) Manual decoiler                              1 set（Capacity : 3 tons）

(2) Roll-Forming M/C                          1 set

(3) Hydraulic punch and Cutting         1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) run out table                                     1 set
