This south africa customer buy us ridge cap forming machine 2019
now buy us IBR roofing sheet machine and corrugate sheet machine 2022

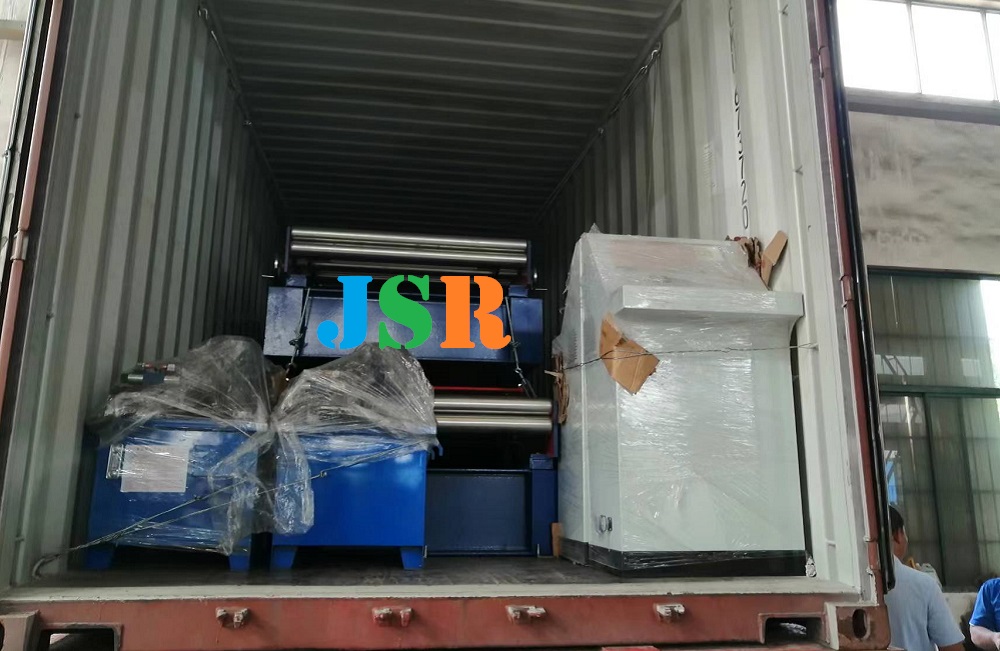

we load two machines into one 40 feet container

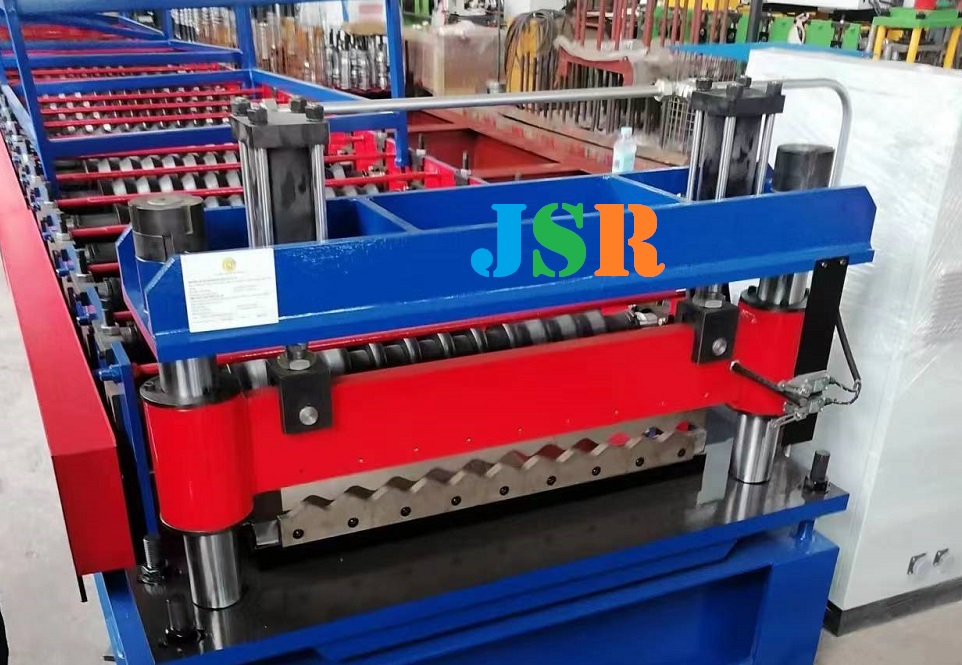

one corrugate sheet machine use raw material width 1000mm
for material thickness0.25-0.7mm, hard material 550 Mpa
because of hard material, corrugate sheet is likely to rebound after roll forming and cutting
we use special roller design to make corrugate sheets at perfect shape.
firstly we make such corrugate sheet machine to Australia customer ten years ago, most material in australia is hard material,
Maquina para sinusoidal a Honduras, 2015
then we make corrugate profile sheet machine to MALAWI, 2016
corrugated matel panel machines to Bengal,2018
Maquina para ondulados a Mexico, 2019
corrugate panel machine to ANGOLA, TOGO, CAMEROON 2020-2021
JSR factory are specialized in making such corrugated matel panel machines in China
Suiting raw material for IBR machines and corrugate machines
1 ) Coil Width: 925mm
2 ) Suitable Coil Thickness: 0.3mm -0.7 mm
3 ) Suitable Raw Materials: galvanized steel sheet
4) Yield strength of raw material: 550Mpa
Main parameters of IBR forming machines and corrugate forming machines
1) Forming Speed: Max. About 25m/min. (excluding the cutting time)
2) Main Motor Power: 7.5KW (Depend on final design)
3) Hydraulic Station Power: 3KW (Depend on final design)
4) Control System: Mitsubishi or SIEMENS PLC and transducer
5) Encoder: Nemicon (Japan)
6) Rollers’ material High grade No.45 forged steel, with digital-controlled procession,
plated with chrome on surface.
7) Shaft diameter 75mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 380V/3Phase/50HZ(or depend on customer)
10) Total Weight: About 8500 Kg of one roll forming machine
Main components of Corrugate sheet making machine and IBR sheet making machine
(1) Manual decoiler 1 set（Capacity : 7 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) run out table 1 set
